Topic overview

The challenge

  1. Inflexible systems
  2. Compromises with planning, quality of light and efficiency

The solution

  1. Individually configurable continuous line
  2. Pioneering quality of light
  3. Outstanding energy efficiency (up to 190 lm/W)

HIGHLIGHTS

MODULAR KIT SYSTEM

E-Line Next LED makes it all possible. The modular system offers previously unknown flexibility in terms of optics, lumen packages, lengths, protection classes, etc. With maximum quality of light and efficiency of up to 190 lm/W, it's the ideal choice for all continuous line projects.

Application-specific

Three module lengths between 737.5 mm and 2,212.5 mm for perfect interior design

Precise

Guarantees extremely high planning accuracy. Thanks to 27 different luminous flux packages between 2,000 and 20,000 lumens.

Diverse

From planar lighting and shelf lighting to accentuation - perfect light with 15 custom optics

Time-saving

Every order in optimised packaging size: easy on the nerves and the environment.

Applications

INDUSTRY - RETAIL - OFFICE EDUCATION

Industry

E-Line Next LED offers the optimum solution for every normative requirement and any ceiling height in industrial production halls. Individually settable luminous flux levels also guarantees maximum visual comfort and maximum efficiency.

Retail

Perfectly illuminated aisles and shelves, an attractive checkout area and a high quality ambience.

Office

E-Line Next LED is the answer to the trend towards linear lighting systems in modern offices.

Education

Whether school desks or blackboards: maximum visual comfort thanks to three special optics and Human Centric Lighting as standard for the classroom.

Design

An attractive design down to the last detail

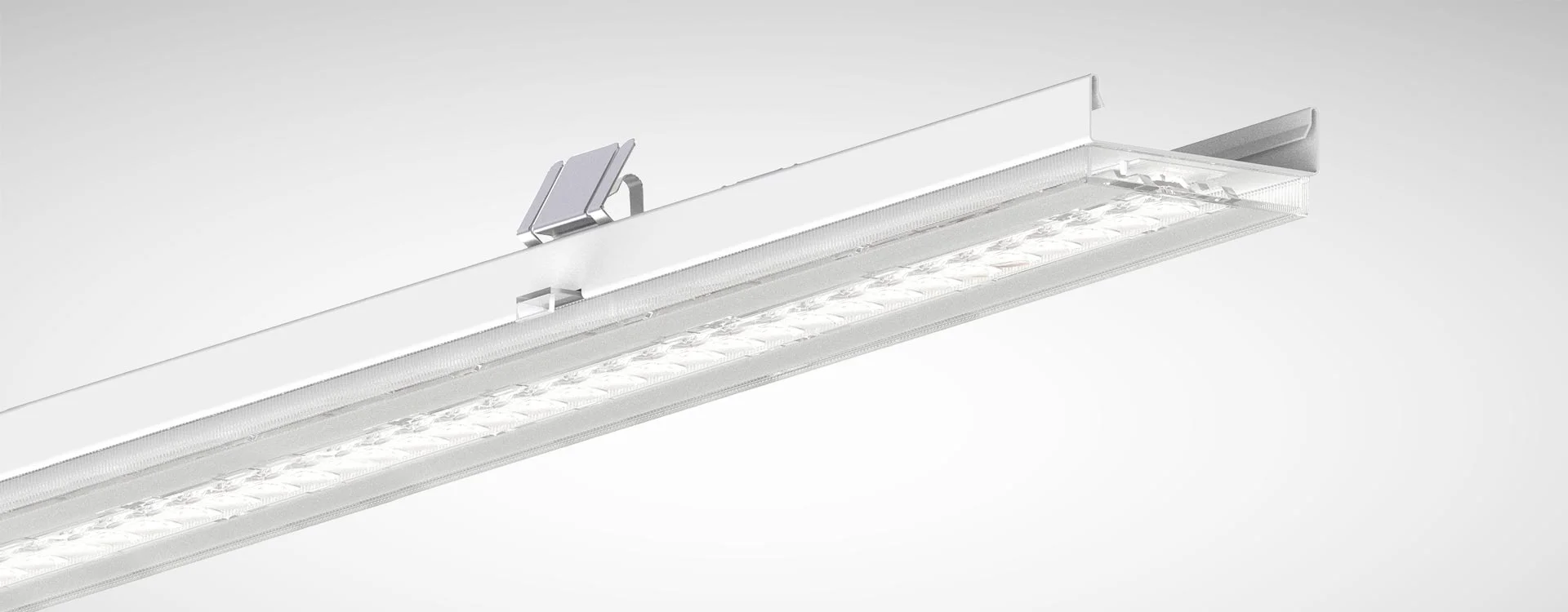

Looks more than good: due to the attractive design of the optic and trunking and the high-quality workmanship, E-Line Next LED also looks good in prestigious surroundings.

Thanks to the new fastening system, no screw points are visible on the optic. The snap springs can also be easily removed after mounting. This way, not even the smallest detail disturbs the high-quality, minimalist design.

Quality of light

Best quality of light for best results

With its versatility in terms of optics and lumen packages as well as high glare control, E-Line Next LED provides customised light everywhere. With a colour rendering index of Ra>90 in the standard portfolio, especially natural colour rendering is guaranteed. The result – very good quality of light and maximum visual comfort. A real advantage, especially when details are involved, for example in quality control in the automotive industry or merchandise display in shop & retail.

Optics

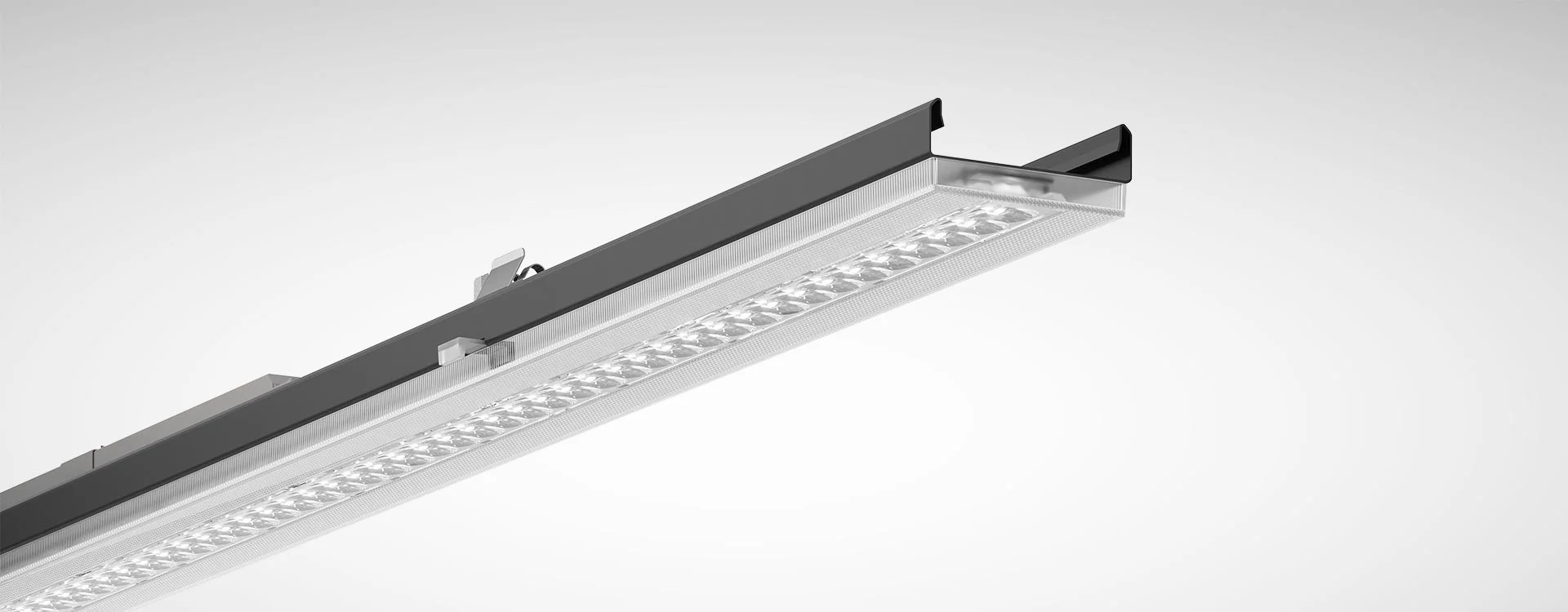

From planar lighting and shelf lighting to accentuation - perfect light with 15 custom optics

Find out more

System

From experience. From the market. For the future.

Technical Features

Features E-Line Fix E-Line Flex
Energy efficiency to 170 lm/W
HE; HE+ (Industry) to 190 lm/W 		to 170 lm/W
HE; HE+ (Industry) to 190 lm/W
Individually configurable luminous flux packages 2.000 lm – 20.000 lm
2.000 - 10.000 lm: steps of in 500 lm
10.000 - 20.000 lm: steps of 1.000 lm 		2.000 lm – 20.000 lm
2.000 - 10.000 lm: steps of in 500 lm
10.000 - 20.000 lm: steps of 1.000 lm
Service Life 50.000 h / L80 / tq 35°C
HE 70.000 h / L80 / tq 50°C
HE+ (Industry) > 90,000 h / L80 / tq 50 °C 		50.000 h / L80 / tq 35°C
HE 70.000 h / L80 / tq 50°C
HE+ (Industry) > 90,000 h / L80 / tq 50 °C
Colours white 01
silver 03
black 05 		white 01
silver 03
black 05
Colour rendering Ra>80
HE; HE+ (Industry) Ra > 80/90 / ACT 		Ra>80
HE; HE+ (Industry) Ra > 80/90 / ACT
Optics (HCL-capable) 9 lens optics
2 opal optics
4 prismatic optics 		9 lens optics
2 opal optics
4 prismatic optics
Wiring (LV) 7 / 14 7 / 11
Protection rating IP20/ IP50/ IP64
 IP20/
Module lengths 737.5 mm
1475 mm
2212.5 mm 		737.5 mm
1475 mm
2212.5 mm
Ambient temperature -25 °C to 35 °C
HE; HE+ (Industry) -25 °C to 50 °C 		-25 °C to 35 °C
HE; HE+ (Industry) -25 °C to 50 °C
Suspension distances up to 3,5 m
 up to 4,0 m
Mounting method Surface- and suspended mounting
using various fasteners 		Surface- and suspended mounting
using various fasteners
Further features Spotlight-, track-, sensor-, light management-,
emergency light- and blank module inserts,
and light panel-, fixed point-, weather-proof
luminaire-, MironaFit- and X-T-L connectors (NN) 		Spotlight-, track-, sensor-, light management-,
emergency light- and blank module inserts,
and light panel-, fixed point-, weather-proof
luminaire-, MironaFit- and X-T-L connectors (NN)
HE = High Efficiency
HE+ = High Efficiency (Industry)
Maximum quantity of gear trays per circuit for various automatic circuitbreakers
Cable cross-section Fusing Automatic circult-breaker Number of gear trays
on one circult*
2,5 mm² 16 A Typ B 12 - 32 pcs.
2,5 mm² 16 A Typ C 20 - 54 pcs.
1,5 mm² 10 A Typ B 7 - 19 pcs.
1,5 mm² 10 A Typ C 12 - 32 pcs.
* please refer to the data sheet for the exact number of gear trays per circult
