LENSIBLE
The new benchmark for quality of light

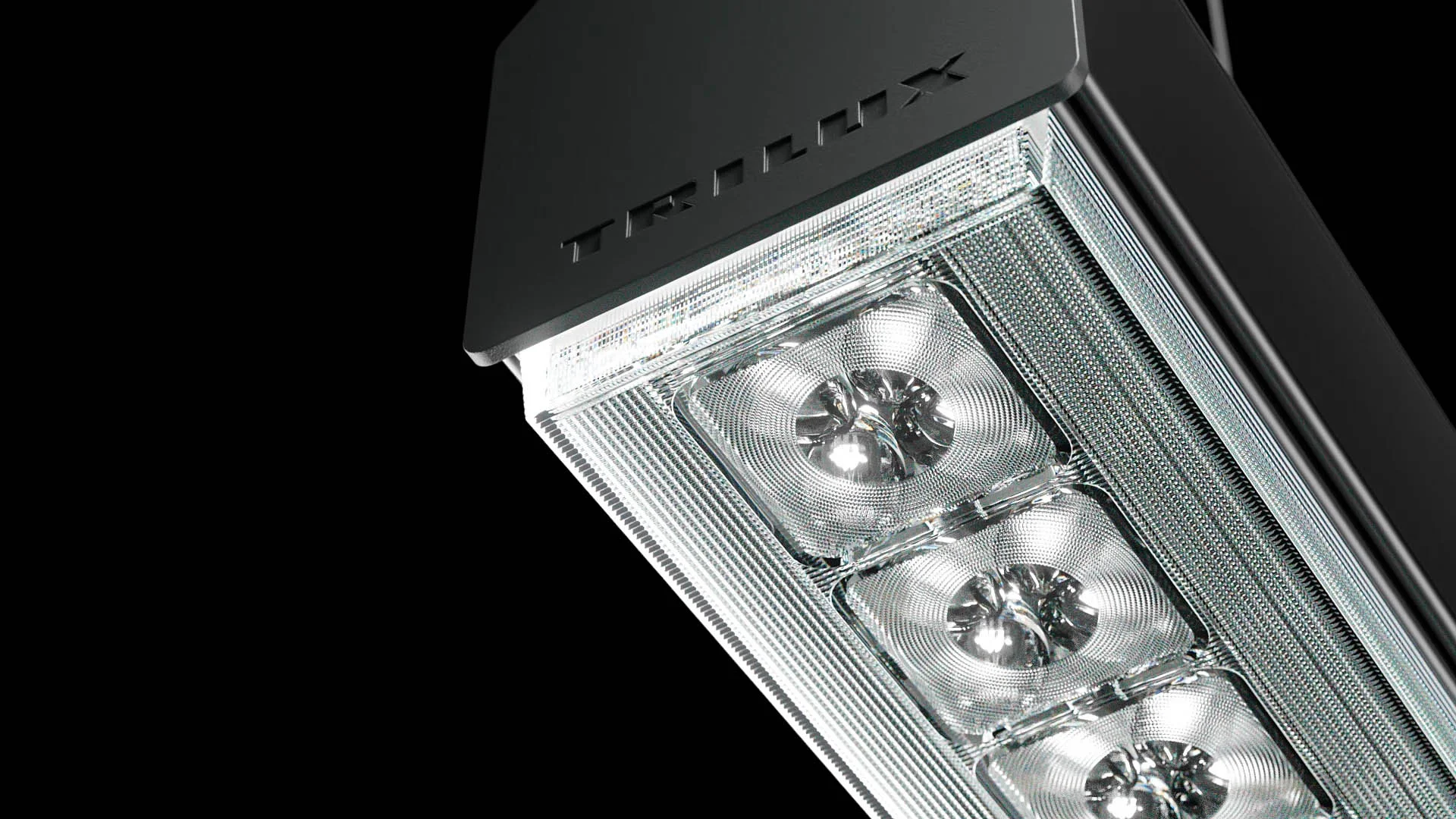

The new gear trays with LENSIBLE optics make E-Line the benchmark for quality of light in the field of continuous line lighting. LENSIBLE combines a special arrangement of lenses in clusters with microstructures on the surface of the optic – inspired by nature. For maximum quality of light and visual comfort, with no compromises in terms of efficiency.
- Lens technology inspired by nature
- More colour clarity and uniformity
- Minimised glare
LENSIBLE
The new benchmark for quality of light

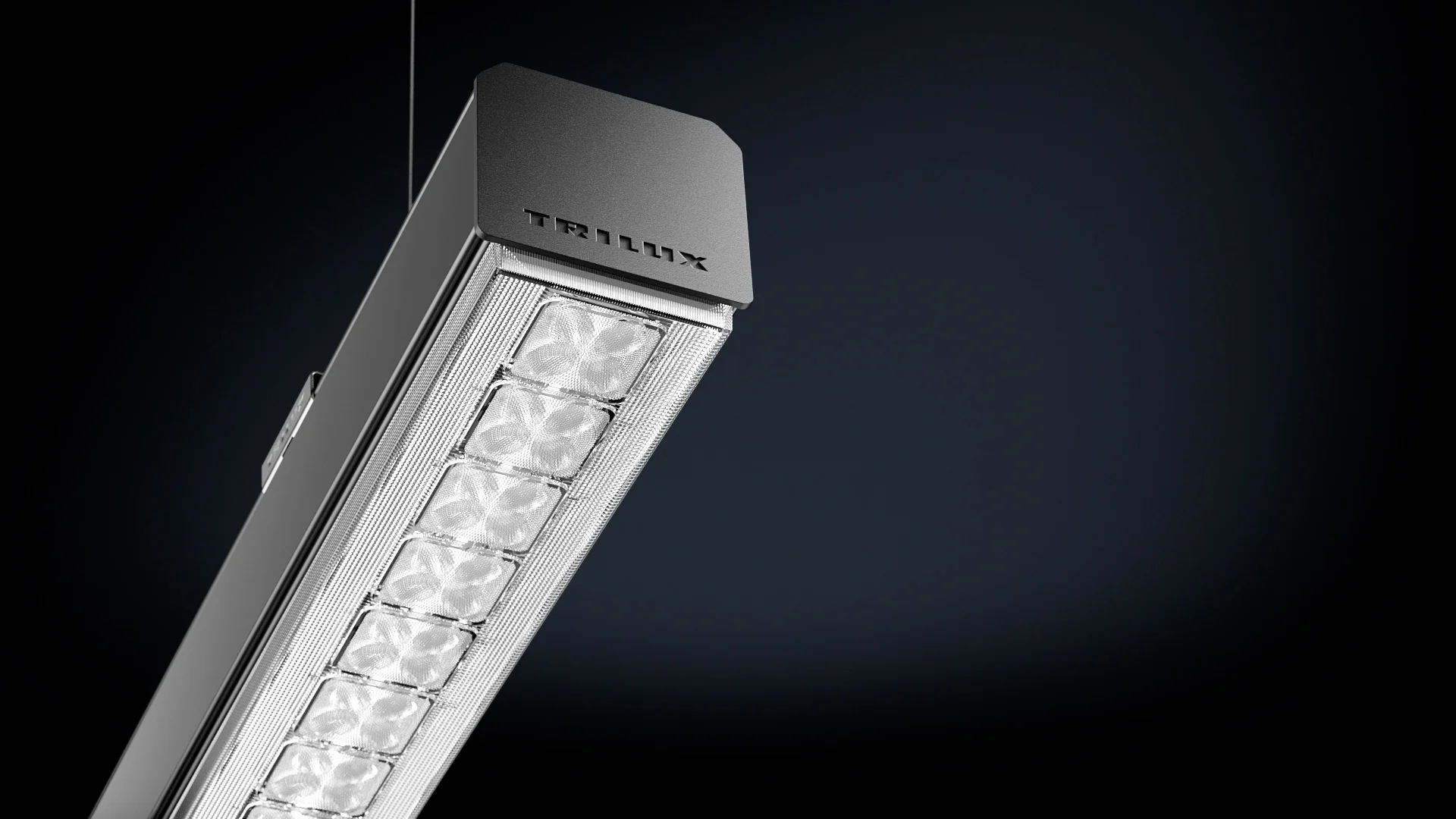

The new gear trays with LENSIBLE optics make E-Line the benchmark for quality of light in the field of continuous line lighting. LENSIBLE combines a special arrangement of lenses in clusters with microstructures on the surface of the optic – inspired by nature. For maximum quality of light and visual comfort, with no compromises in terms of efficiency.
- Lens technology inspired by nature
- More colour clarity and uniformity
- Minimised glare
Excellence meets efficiency

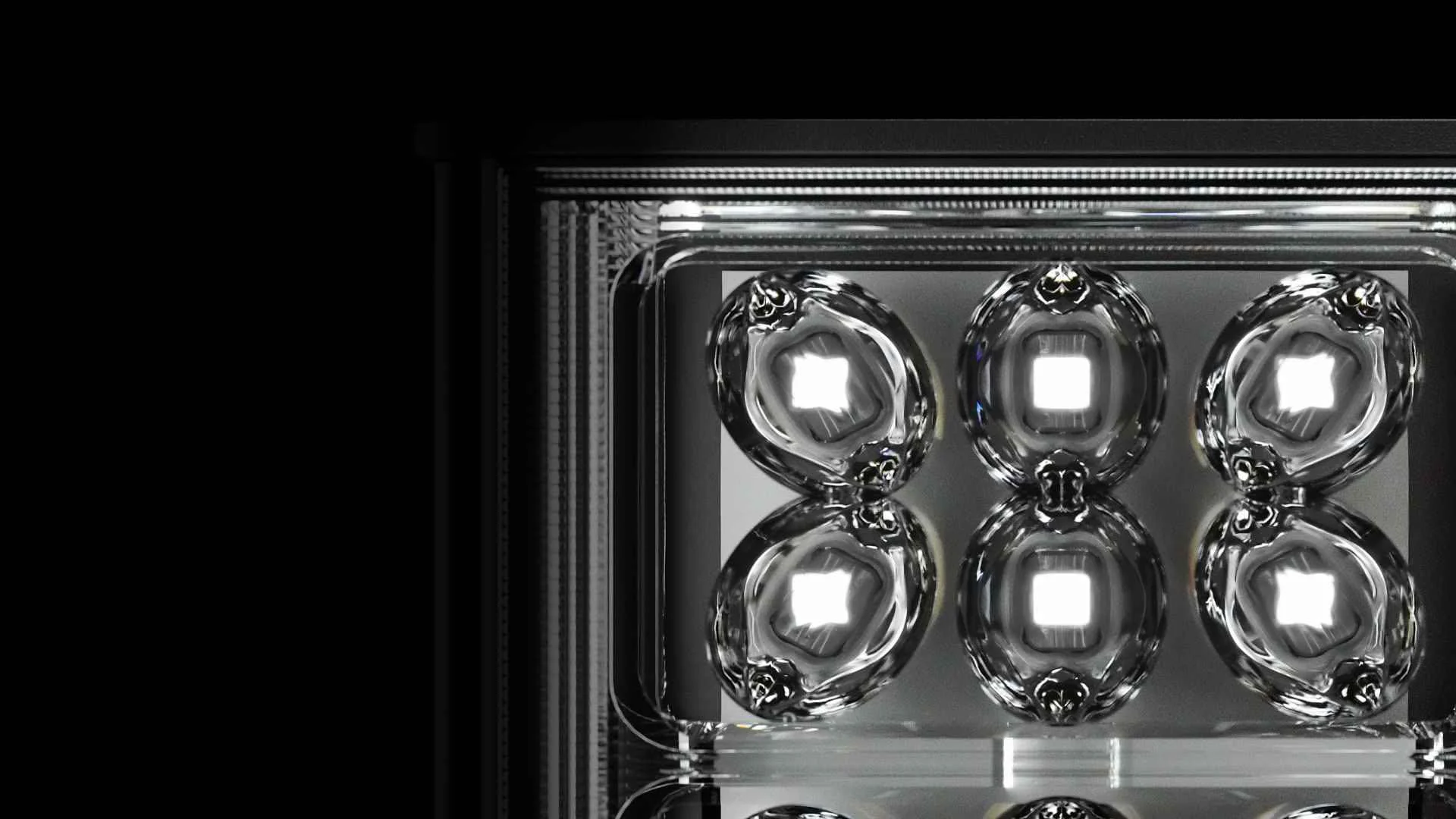

The plus in performance for applications with special requirements: With efficiency of up to 220 Im/W, E-Line LENSIBLE optics with a 3x2 lens cluster achieve top values in the market. That means lower electricity costs and carbon emissions in operation. In addition to the outstanding efficiency, there are further advantages due to the distribution of total luminous flux over more LEDs:
- maximum visual comfort due to further reduced contrast at the light emission surface
- Efficiency up to 220 lm/W
- High lumen packages up to 28,000 lm
- Ambient temperatures up to 50° C
Excellence meets efficiency
The plus in performance for applications with special requirements: With efficiency of up to 220 Im/W, E-Line LENSIBLE optics with a 3x2 lens cluster achieve top values in the market. That means lower electricity costs and carbon emissions in operation. In addition to the outstanding efficiency, there are further advantages due to the distribution of total luminous flux over more LEDs:
- maximum visual comfort due to further reduced contrast at the light emission surface
- Efficiency up to 220 lm/W
- High lumen packages up to 28,000 lm
- Ambient temperatures up to 50° C
Best quality of light for every situation

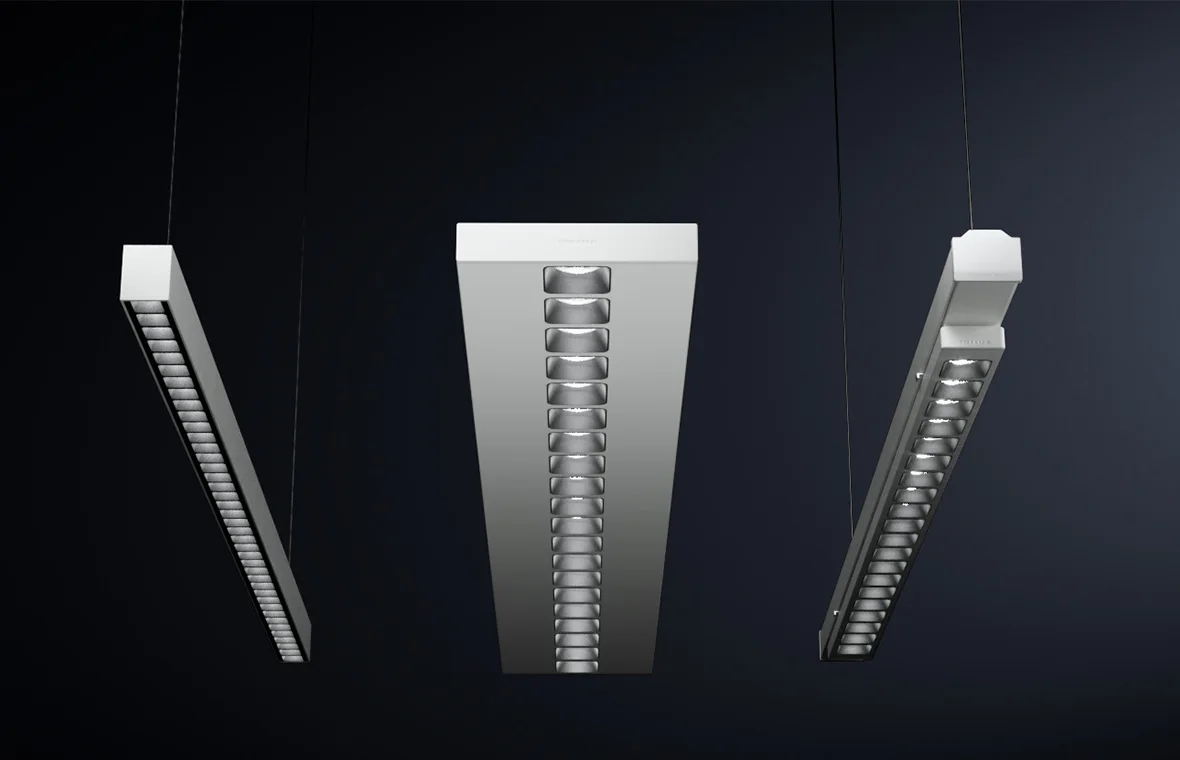

Whether E-Line or E-Line Pro trunking, with 22 application-specific light distributions the system features gear trays with optimum quality of light for every situation in industry, retail and office environments. Innovative LENSIBLE lens optics are at the heart of the range, along with prismatic and ConVision optics. The gear tray system therefore comprises.
- 22 application-specific light distributions
- LENSIBLE, ConVision, prismatic and diffuse optics
- Versions with UGR19, Ra>90
- Tunable White versions for Human Centric Lighting (HCL) concepts
Best quality of light for every situation
Whether E-Line or E-Line Pro trunking, with 22 application-specific light distributions the system features gear trays with optimum quality of light for every situation in industry, retail and office environments. Innovative LENSIBLE lens optics are at the heart of the range, along with prismatic and ConVision optics. The gear tray system therefore comprises.
- 22 application-specific light distributions
- LENSIBLE, ConVision, prismatic and diffuse optics
- Versions with UGR19, Ra>90
- Tunable White versions for Human Centric Lighting (HCL) concepts
Flexibly realising applications

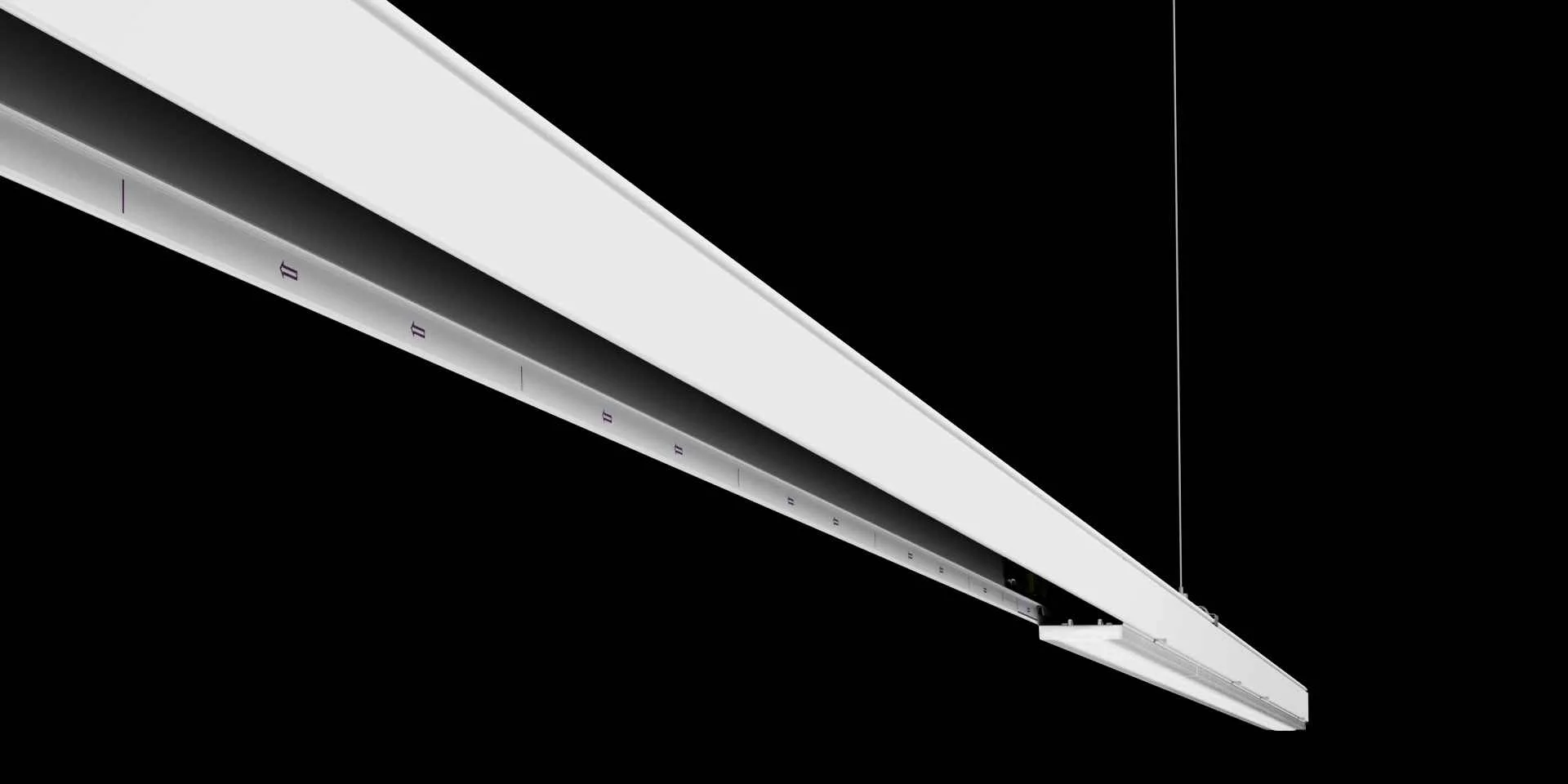

The E-Line Pro trunking has continuous current routing. Optionally 7 or 13-pole – matched to the respective application, for three circuits, DALI and emergency light or other additional functions. The gear trays can be freely positioned and make completely reliable electrical contact. The infeed is flexible without visible interference points or collisions.
- E-Line Pro trunking with continuous current routing (7- or 13-pole)
- Gear trays can be freely positioned
- Infeed without visible interference points
Flexibly realising applications
The E-Line Pro trunking has continuous current routing. Optionally 7 or 13-pole – matched to the respective application, for three circuits, DALI and emergency light or other additional functions. The gear trays can be freely positioned and make completely reliable electrical contact. The infeed is flexible without visible interference points or collisions.
- E-Line Pro trunking with continuous current routing (7- or 13-pole)
- Gear trays can be freely positioned
- Infeed without visible interference points
E-Line Pro
Installation rethought

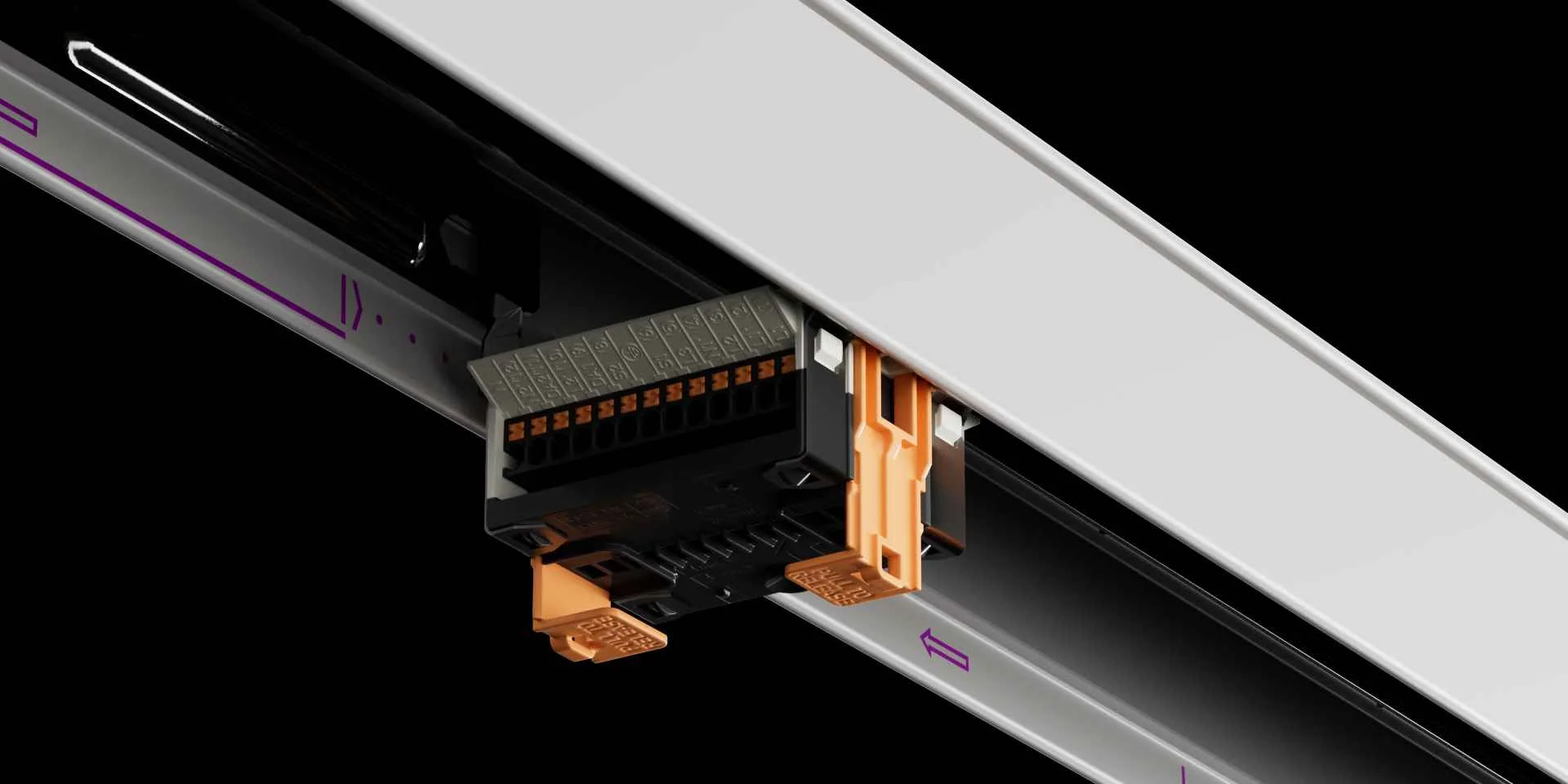

The E-Line Pro trunking incorporates all our experience with continuous line systems: easy to install, versatile and connective in every respect. This can be seen, heard and felt during mounting. The direction is clearly marked in the profile and the new couplings, inserts and modules click in with acoustic feedback – for secure electrical and mechanical connection.
- Easy to install, versatile and connective
- Direction is marked in the profile
- Acoustic feedback when connecting and inserting elements
E-Line Pro
Installation rethought
The E-Line Pro trunking incorporates all our experience with continuous line systems: easy to install, versatile and connective in every respect. This can be seen, heard and felt during mounting. The direction is clearly marked in the profile and the new couplings, inserts and modules click in with acoustic feedback – for secure electrical and mechanical connection.
- Easy to install, versatile and connective
- Direction is marked in the profile
- Acoustic feedback when connecting and inserting elements
Future-oriented product design
- Market-leading efficiency
E-Line features efficiency levels of up to 220 lm/W. This means lower electricity costs and carbon emissions during operation – over the entire service life. - Exchange components without tools
The modular design of the luminaire inserts means repairs are easy. Functionally compatible parts are available for 15 years after the end of series production – guaranteed. - Resource-saving refurbishments – in 44 seconds
Upgrade at the ‘speed of light’: E-Line luminaire inserts can be upgraded to the latest generation without tools – the trunking stays in place. - High recyclability
Smart design saves resources: thanks to its modular, adhesive-free design, E-Line achieves recyclability of 69 percent by weight. - Sustainable logistics
We minimise packaging waste at building sites by using multiple packaging, mono-material and reusable packaging on request.
Unmistakable design

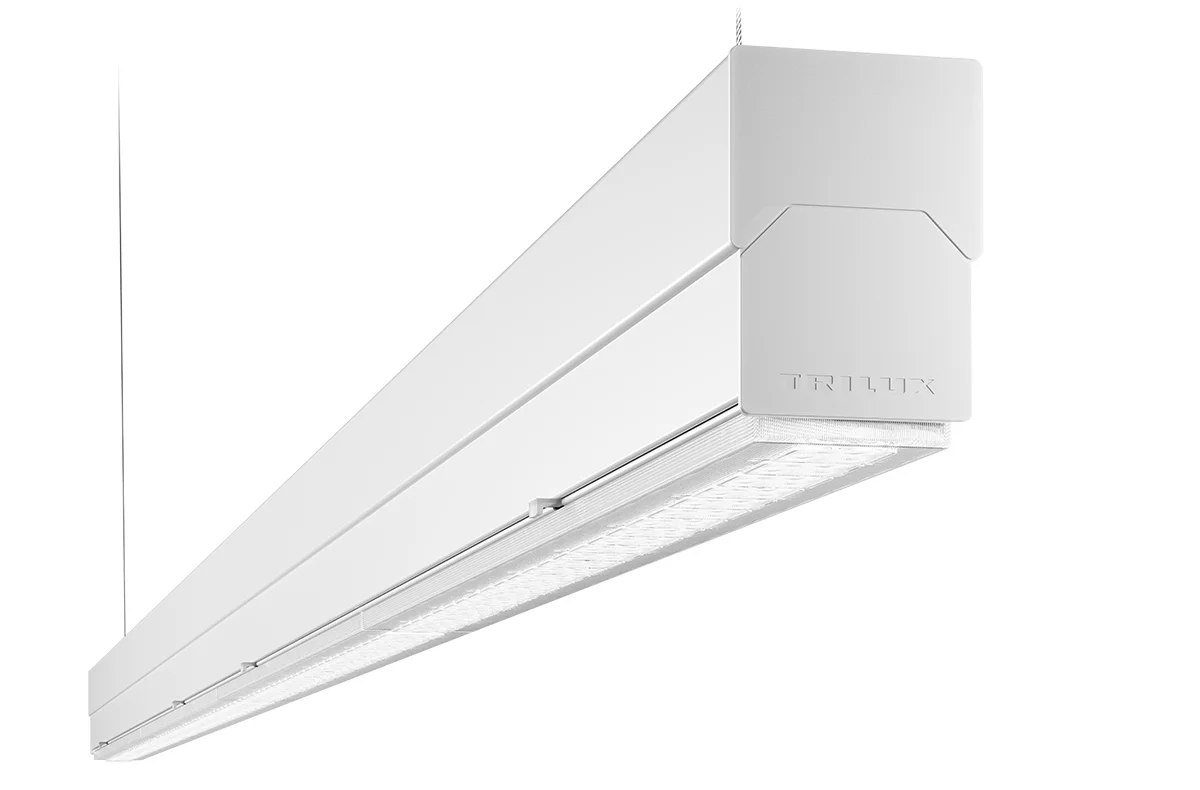

The LENSIBLE optics give E-Line a distinctive look – with minimised butt joins for a consistent appearance. With E-Line Pro, the gear trays are recessed into the profile, the infeed is made without visible interference points and the end caps have smooth surfaces. The result: a modern, clean and unmistakable appearance that also blends into applications such as retail, office and education.
- LENSIBLE optics with a concise look and minimised butt joins
- E-Line Pro: Gear trays recessed into the profile
- Modern, clean, unmistakable appearance
Simply refurbish
E-Line as a refurbishment solution

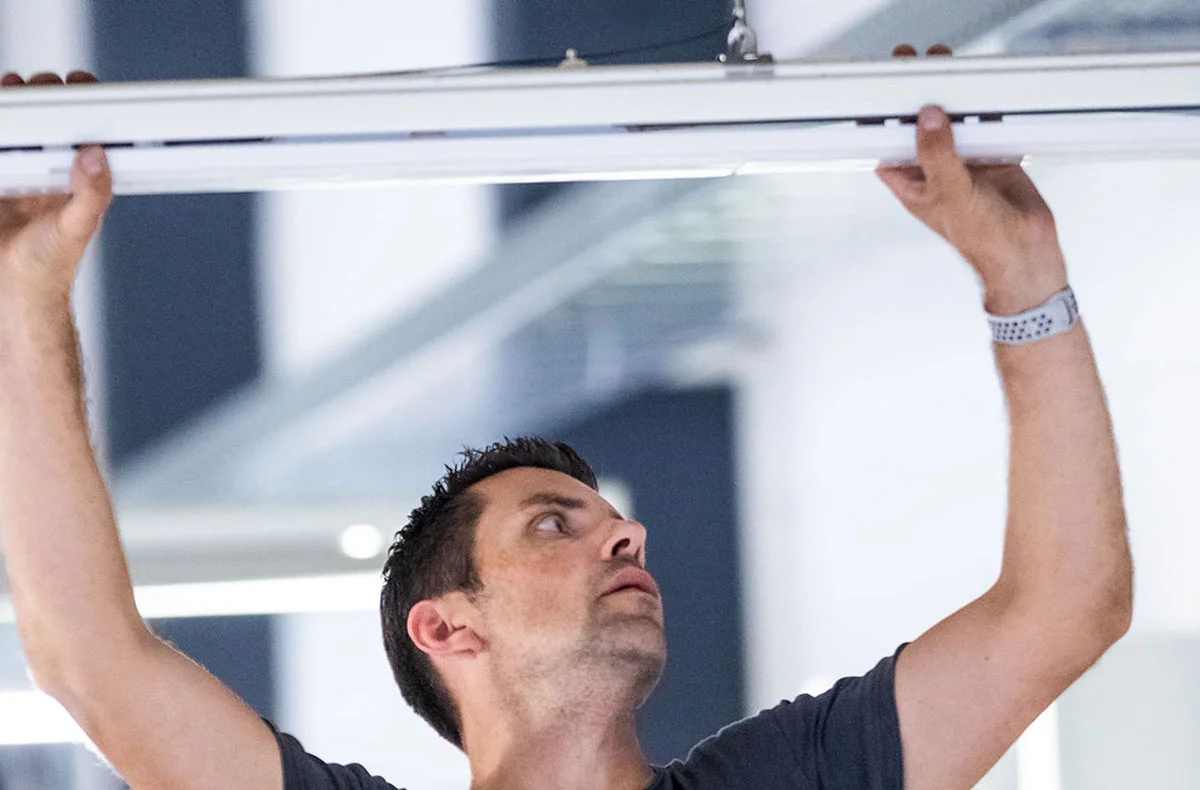

Existing, obsolete systems can be easily refurbished 1:1. Tool-free conversion of a conventional T5/T8 E-Line system to LED technology is thus done in next to no time. To expand existing E-Line projects, TRILUX also continues to offer suitable trunking and modules.
-
Extended availability promiseFor more sustainability, safety and design consistency, we offer you the TRILUX after-sales promise. This means that you can continue to purchase selected lighting solutions from us for ten years after purchase. For spare parts, such as LED modules, LED control gear or optics, it is even 15 years.
-
Flexibility in planningThe different lengths of the E-Line gear trays offer maximum freedom: 737.5 mm for more flexibility in planning, 1,475 mm for 1:1 replacement in refurbishment and 2,212.5 mm for use in cost-efficient projects.
-
One trunking profile for different protection ratingsCertain applications for continuous lines require higher degrees of protection, for example IP50 in operating sites with fire hazards. In such applications, E-Line Pro continuous lines can easily be adapted from their standard IP20 protection rating to IP50 with the help of a few accessories – even retroactively. This solution simplifies planning, logistics and installation.
-
Indirect module for ambient lightingWith indirect lighting, the applications of E-Line Pro expand enormously: for example in the office or retail sector. The discreet indirect module mounts flush onto the trunking. It uniformly brightens the ceilings – creating diffuse feel-good light and a pleasantly relaxed atmosphere.
-
Ready for light managementIntegrate an E-Line Pro system into a light management system? Nothing could be easier: use the DALI cables in the power supply of the trunking intended for this purpose to control DALI-capable luminaires. Alternative: Control wirelessly via Bluetooth LE, for example with LiveLink Retail. TRILUX light management reduces energy consumption and increases ease of use. It enables HCL lighting concepts and offers interfaces for monitoring, remote maintenance and integration into the building management technology.
-
Quality made by TRILUXE-Line Pro incorporates the experience of over 30 years and thousands of kilometres of trunking, with evolutionary further development stemming from an intensive dialogue with users. Production takes place entirely at the TRILUX headquarters. This means transparency, reliable supply chains and sustainability through short distances. State-of-the-art, flexible processes enable customised products – for solutions that ideally meet customer requirements.
| E-Line Pro | |
| Energy efficiency | to 185 lm/W HE; HE+ (industry) to 217 lm/W |
| Individually configurable luminous flux packages | 1,500 lm to 30,000 lm 1,500-10,000 lm: steps of 500 lm 10,000-30,000 lm: steps of 1,000 lm |
| Service life | 50,000 h / L80 / tq 35 °C HE 100,000 h / L95 / tq 50 °C HE+ (industry) 100,000 h / L95 / tq 50 °C |
| Colours | white 01 silver 03 black 05 |
| Colour rendering | Ra > 80 HE; HE+ (industry) Ra > 80 / 90 / ACT |
| Optics (HCL-capable) | 10 lens optics 4 ConVision® optics 2 opal optics 5 prismatic optics |
| Wiring (through-wiring) | 7-pole or 13-pole |
| Protection rating | IP20 / IP50 / IP64* *coming soon |
| Module dimensions | Module 750: 738 mm Module 1500: 1,475 mm Module 2250: 2,212.50 mm |
| Ambient temperature | -25 °C to 35 °C HE; HE+ (industry) -25 °C to 50 °C |
| Suspension distances | up to 4.0 m |
| Mounting method | Surface- and suspended mounting using various fasteners |
| Further features | Spotlight-, pendant luminaire-, track-, sensor-, light management-, emergency light- and blind module inserts, indirect module, cable channel, Fixpoint-, weather-proof luminaire-, Mirona Fit- and X-T-L connectors and more |
| HE = High Efficiency HE+ = High Efficiency (industry) | Note: All switchable luminaire inserts (ET) have 100% in DC operation. All dimmable luminaire inserts (not UR / EB1 / EB3) have 15% in DC operation. Does not apply to EB1, EB3 or UR variants. |
