Skeo Q LED
Possibilities squared around buildings
The challenge
Contemporary lighting around buildings must not only provide safe orientation in darkness but is also a decisive factor in design that impacts the external effect of the building. Solutions are required that facilitate very different demands with facade and path lighting to be implemented in a uniform language of design.
The solution
During the day the design inspires, and at night it scores points with light – the Skeo Q LED range includes square wall and ceiling luminaires, projectors and bollard luminaires. During daylight the purist, modern shape blends harmoniously into its surroundings and provides attractive accents. At night the flexible family of luminaires displays paths and facades using high quality, energy-efficient light adapted perfectly to the framework conditions.

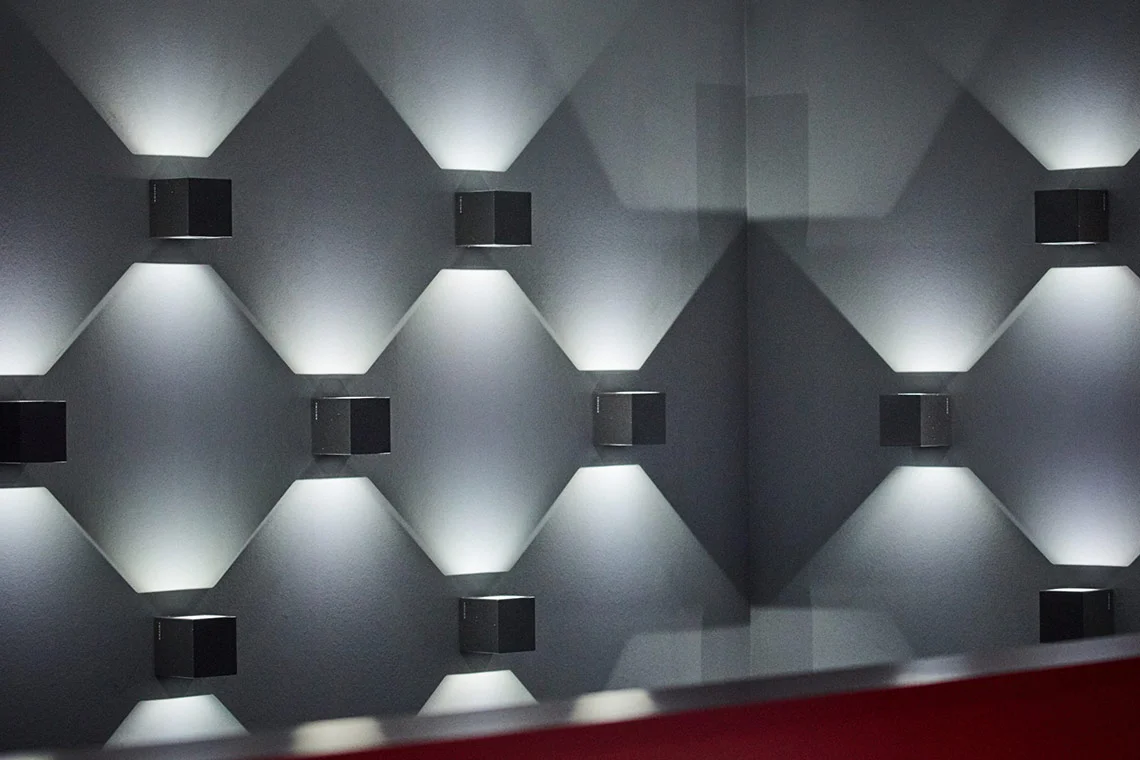

Clear form for wall and ceiling
Thanks to their linear design the luminaires blend ideally into the building surroundings – and provide attractive accents.
Functional luminaire family
A functional luminaire family facilitates the complete application of light around buildings to be illuminated in a uniform design.
High-quality material
Skeo Q LED also withstand rough weather conditions thanks to the high quality luminaire housing of die-cast aluminium with IP65 protection rating.
Technical features
|
Skeo Q LED wall luminaire |
Skeo Q LED ceiling luminaire |
Skeo Q LED bollard luminaire |
Skeo Q LED projector |
|
| Construction sizes |
100 x 100 x 100 mm 150 x 150 x 150 mm |
100 x 100 x 100 mm 150 x 150 x 150 mm |
100 x 100 x 100 mm 100 x 100 x 500 mm 100 x 100 x 800 mm |
100 x 100 x 500 mm |
| Light emission apertures | optionally with one or two | one | optionally with one or two | one |
| Beam characteristics |
direct or direct-indirect, optionally with narrow or wide distribution |
various |
asymmetric medium-wide distribution |
optionally rotationally symmetric, narrow, medium wide or wide distribution |
| Luminous flux | 200 lm to 3,600 lm | 200 lm to 3,600 lm | 300 lm or 700 lm | 450 lm |
| Light colours | 3.000 K and 4.000 K | 3.000 K and 4.000 K | 3.000 K and 4.000 K | 3.000 and 4.000 K |
| Protection rating | IP65 | IP65 | IP65 | IP65 |
