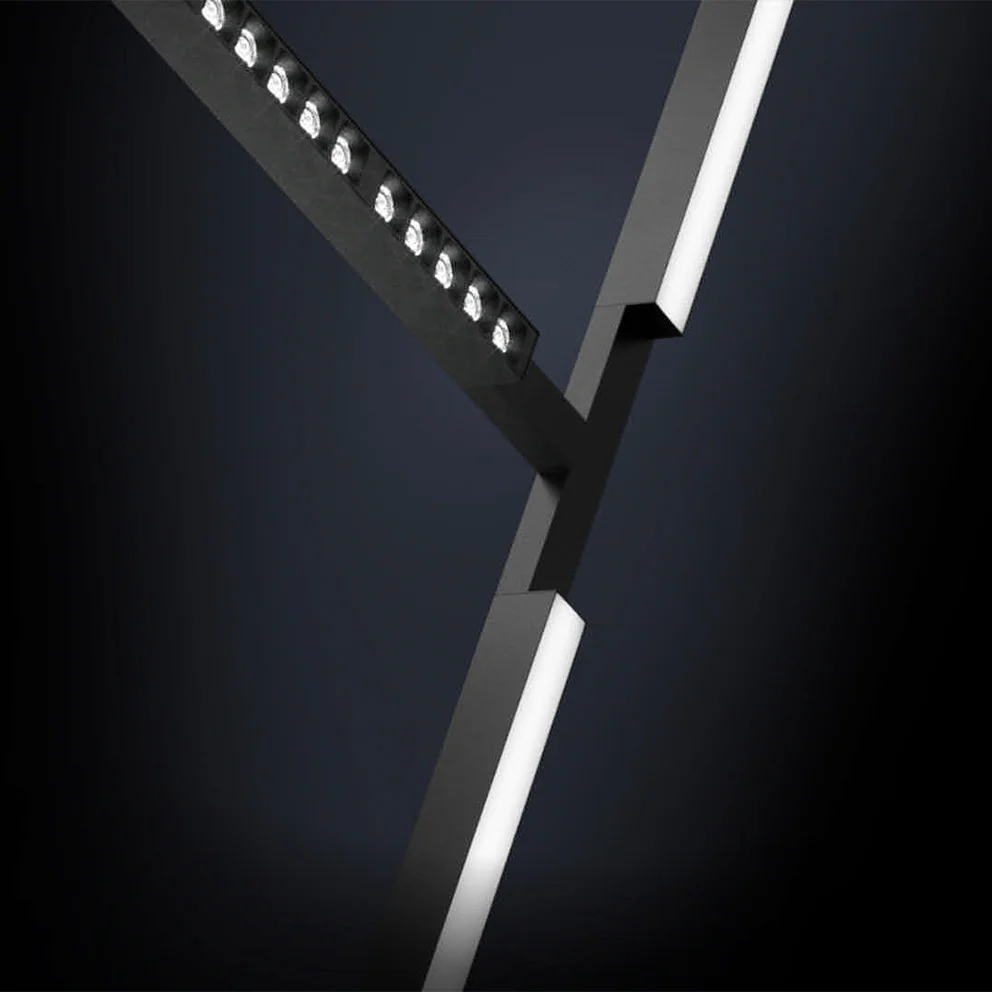

One system
For the entire office
Yonos enables single luminaires, continuous lines and light structures to be realised – with a consistent, coherent design and quality of light. Yonos remains flexible and adaptive throughout its service life. If the room concept changes, Yonos simply adapts.
- Versatile planning
- Flexible, even after initial planning
- Highly efficient lighting technology
- Individually configurable luminous flux packages
One system
For the entire office
Yonos enables single luminaires, continuous lines and light structures to be realised – with a consistent, coherent design and quality of light. Yonos remains flexible and adaptive throughout its service life. If the room concept changes, Yonos simply adapts.
- Versatile planning
- Flexible, even after initial planning
- Highly efficient lighting technology
- Individually configurable luminous flux packages

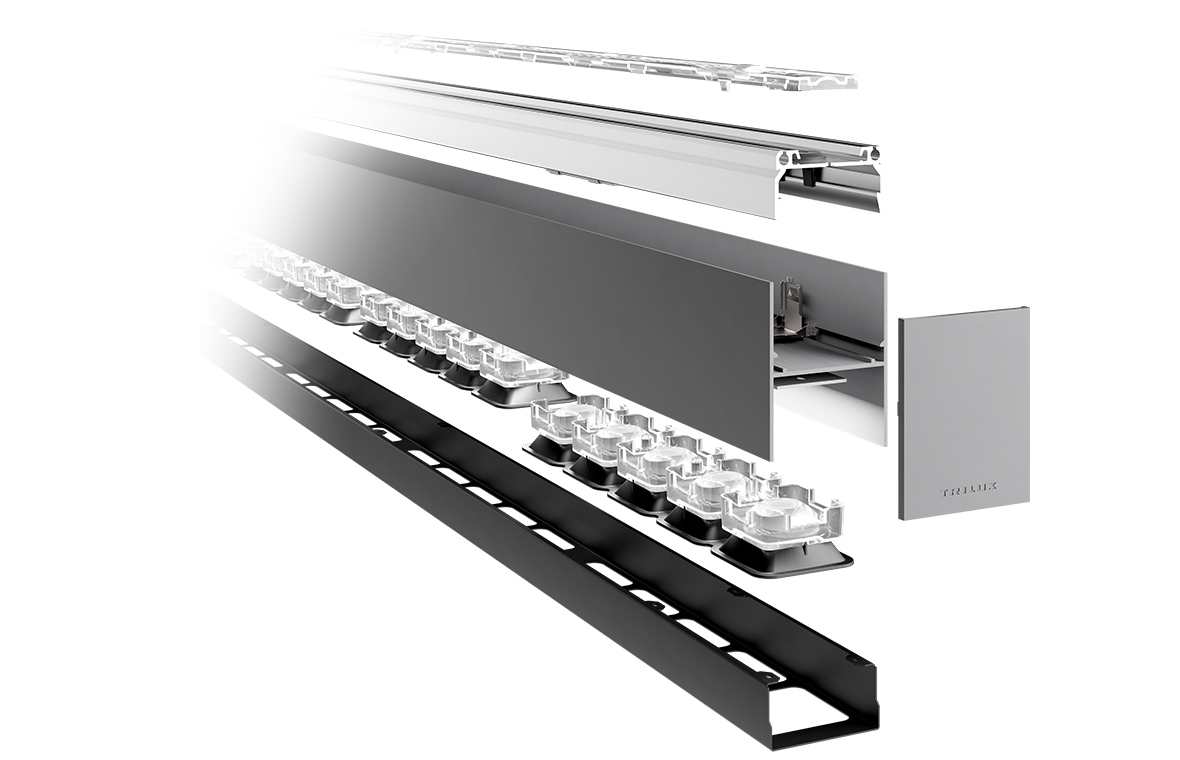

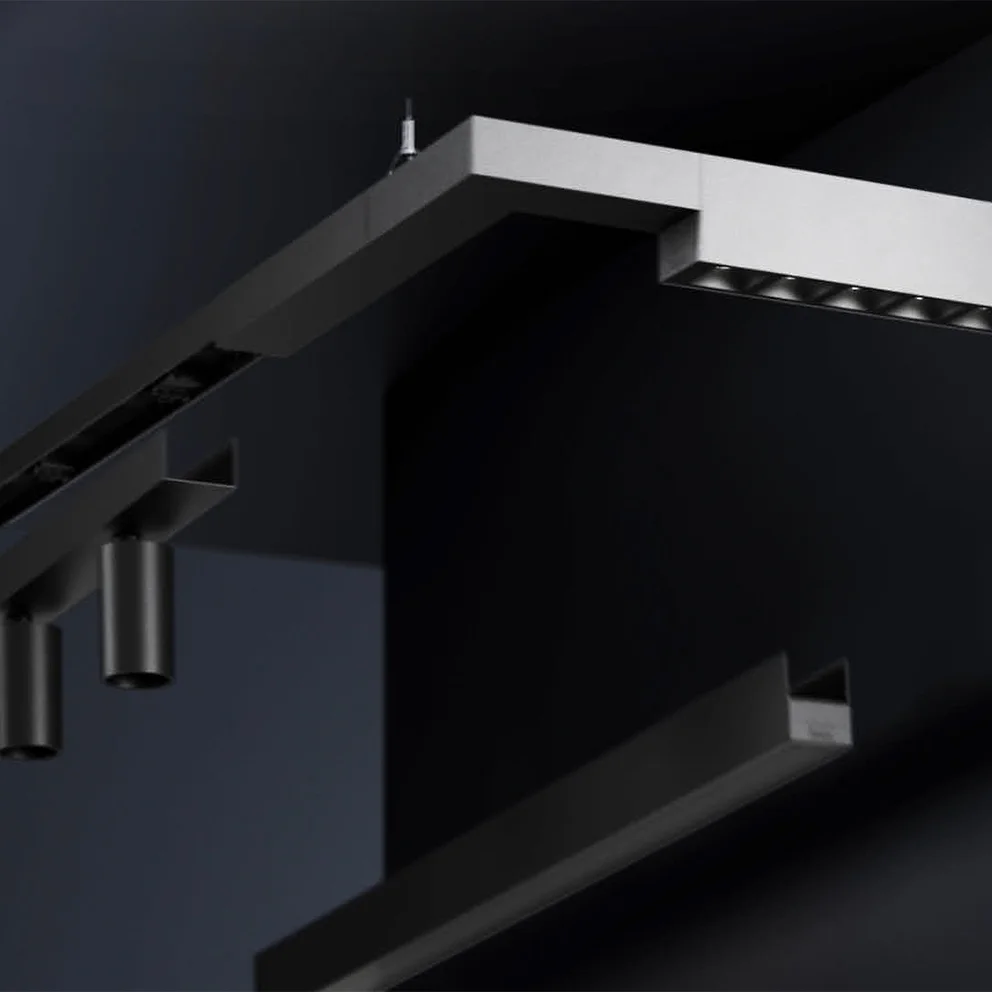

Easy to connect
The base unit
A robust aluminium profile with integrated power supply with taps is at the heart of Yonos®. As an infrastructure channel with lengths from 650 to 2600 mm, it accommodates luminaire, functional and decorative modules, can be connected together to form linear continuous lines and uses L, T, C and X connectors to create complex structures, either surface-mounted or suspended.
- Wiring (LV) 5-pole or 7-pole
- Taps every 325 mm or 650 mm
- Indirect light flush with the base unit
Easy to connect
The base unit
A robust aluminium profile with integrated power supply with taps is at the heart of Yonos®. As an infrastructure channel with lengths from 650 to 2600 mm, it accommodates luminaire, functional and decorative modules, can be connected together to form linear continuous lines and uses L, T, C and X connectors to create complex structures, either surface-mounted or suspended.
- Wiring (LV) 5-pole or 7-pole
- Taps every 325 mm or 650 mm
- Indirect light flush with the base unit

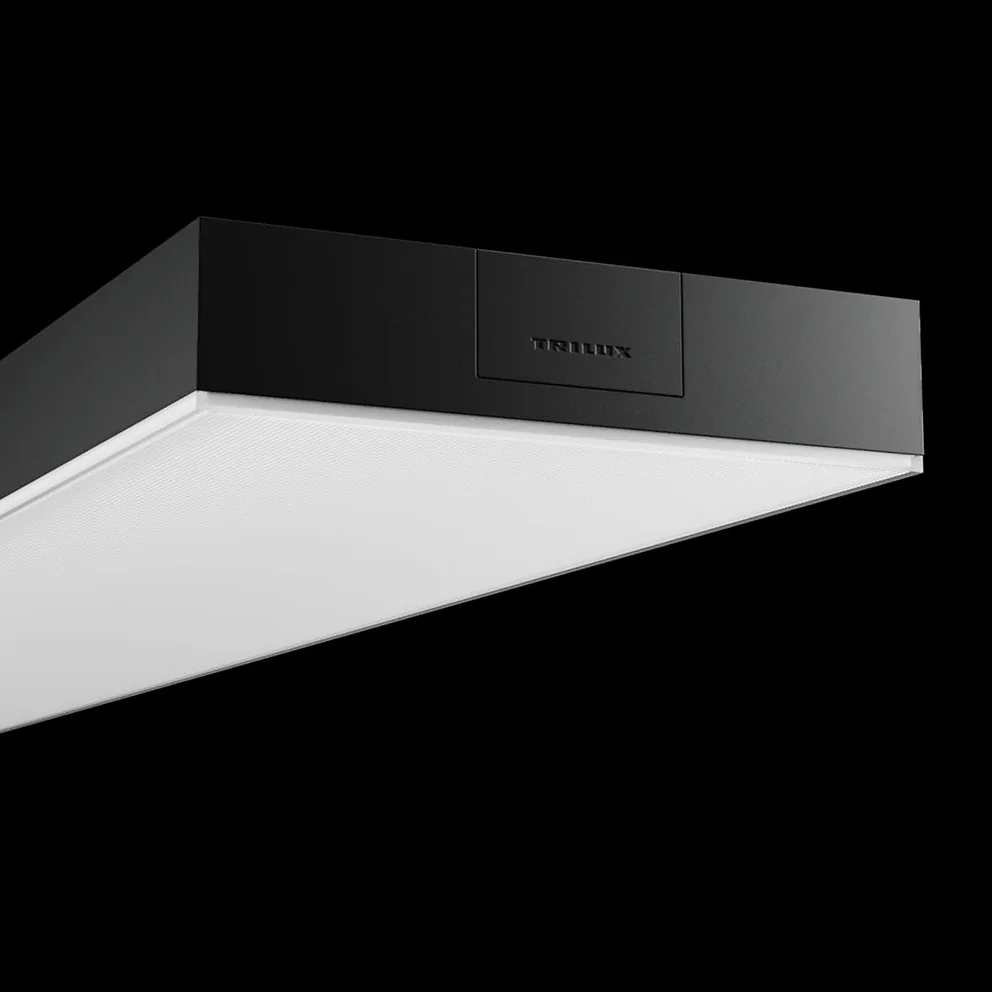

Versatile
The modules
Yonos contains everything you need for attractive office lighting: Standard-compliant and particularly low-glare workplace lighting, linear light for corridors, effective accent lighting for common areas and smart options for the future. All modules completely enclose the base element - this distinguishes the appearance from conventional continuous-row lighting systems, for example. Yonos is extremely easy to mount: The patented release and fastener and proven contacting technology ensure quick, safe and cost-effective installation.
- 9 optics, from normative to atmospheric
- Sensor-, control- and emergency light module inserts
- Light management via LiveLink or Casambi
- Patented release and fastener
Versatile
The modules
Yonos contains everything you need for attractive office lighting: Standard-compliant and particularly low-glare workplace lighting, linear light for corridors, effective accent lighting for common areas and smart options for the future. All modules completely enclose the base element - this distinguishes the appearance from conventional continuous-row lighting systems, for example. Yonos is extremely easy to mount: The patented release and fastener and proven contacting technology ensure quick, safe and cost-effective installation.
- 9 optics, from normative to atmospheric
- Sensor-, control- and emergency light module inserts
- Light management via LiveLink or Casambi
- Patented release and fastener
Durable
The product design
Yonos is designed to be re-planned, repaired and reused. The individual components can be easily disassembled and recycled at the end of the life cycle. We provide maintenance and care on request and, with the TRILUX after-sales promise, we give you the option of purchasing all system components for a 10-year period. Make your choice – we’ll make sure it stands the test of time.
With Yonos, we want to reduce the carbon footprint along the entire product life cycle. The product design is geared towards resource-saving procurement and production from the very start. The modular kit design minimises transport costs and reduces the space required for storage. We manufacture Yonos at a TRILUX production site in Germany, thus guaranteeing short delivery routes in the EU.
The extremely efficient LED lighting technology can be further enhanced by using intelligent light management systems. Yonos is light management-ready and designed for automated light control via LiveLink and Casambi. That means: artificial light only when it’s needed and only as much as needed. With high efficiency, automated lighting control, high quality of light and a CRI90 colour rendering index, Yonos is a building block for sustainable building certification such as BREEAM and DGNB (German Sustainable Building Council).
The main components of the system are made of high-quality aluminium which, once manufactured, can be recycled with almost no loss of quality. For Yonos we use aluminium with a particularly high proportion of recycled material: at least 70% recycled aluminium (certified to ISO 14025) for the base elements and the H and U profiles as well as for luminaire inserts and blind modules. That saves resources, reduces the carbon footprint and supports the sustainable use of raw materials. The base element is not coated, which also saves resources and reduces the ecological footprint. The connections of the individual electrotechnical components are designed so that these can be separated during recycling and fed into the appropriate material streams.

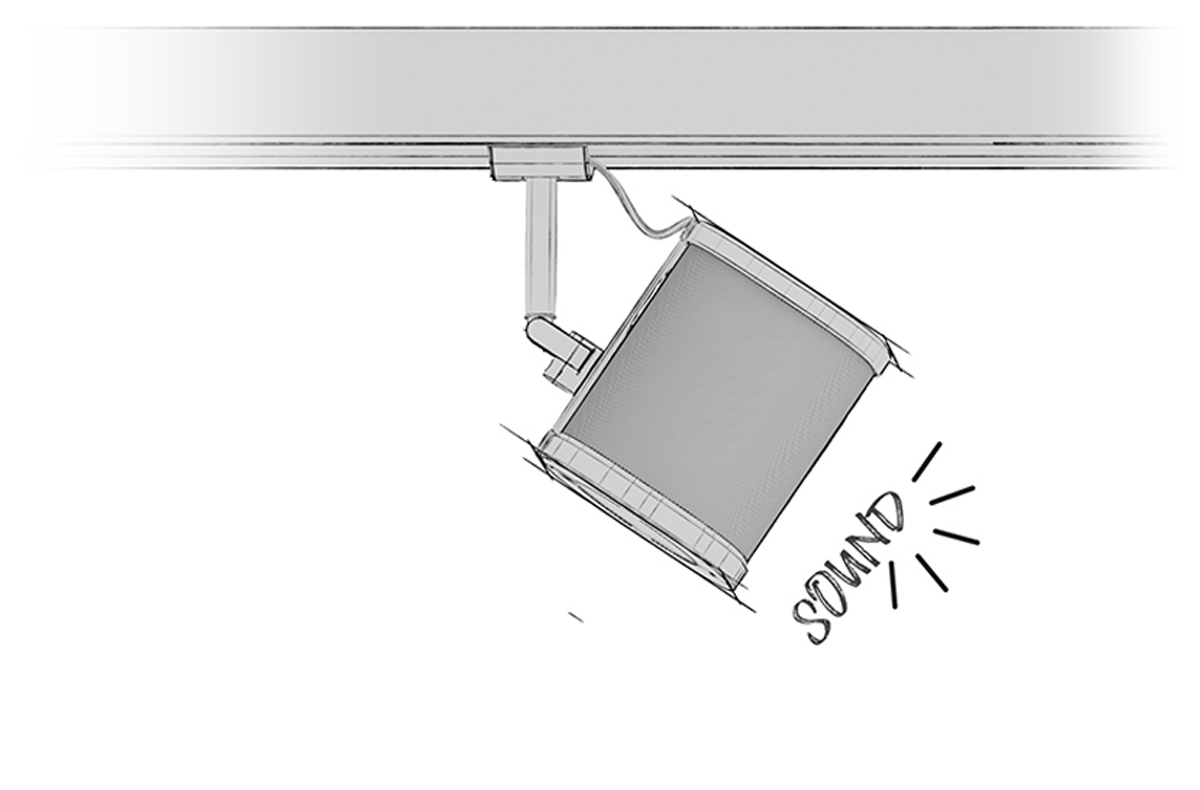

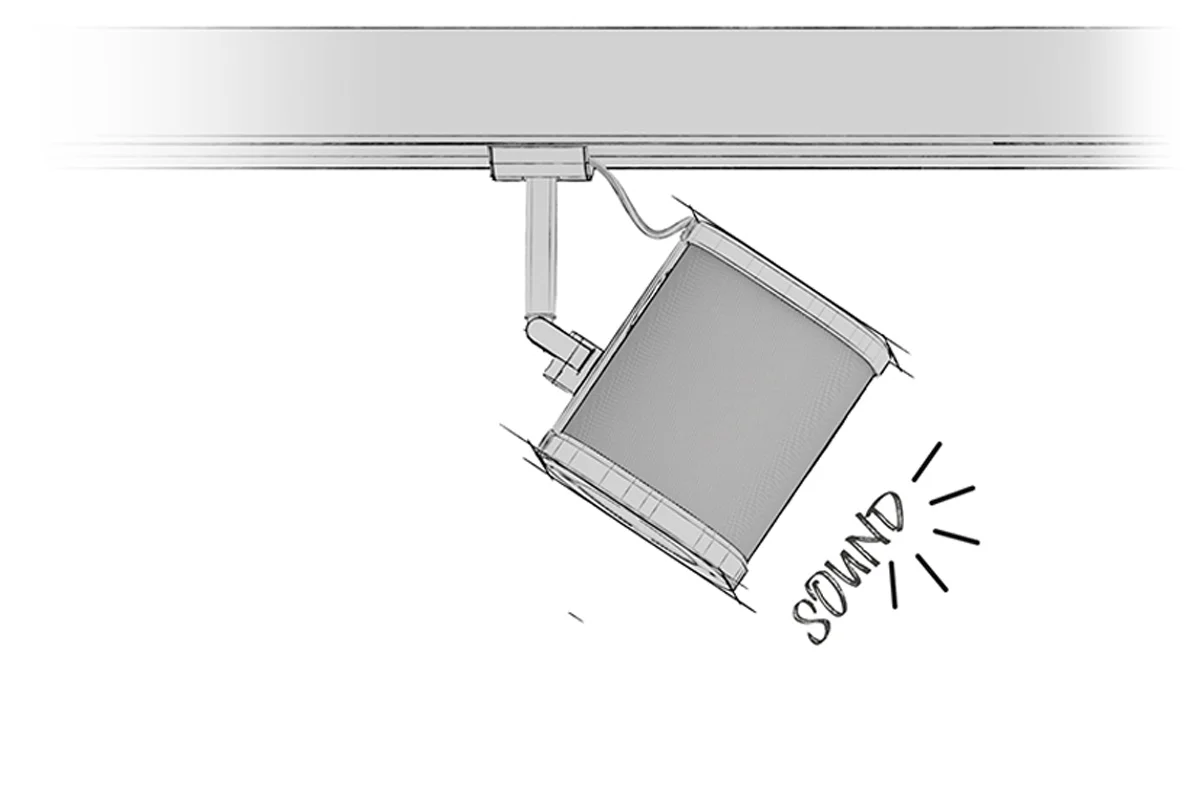

Much more than just light
Yonos base elements not only form the basis for intelligent office lighting. On request, devices from other manufacturers (e.g. sound systems) can also be integrated into the installation.

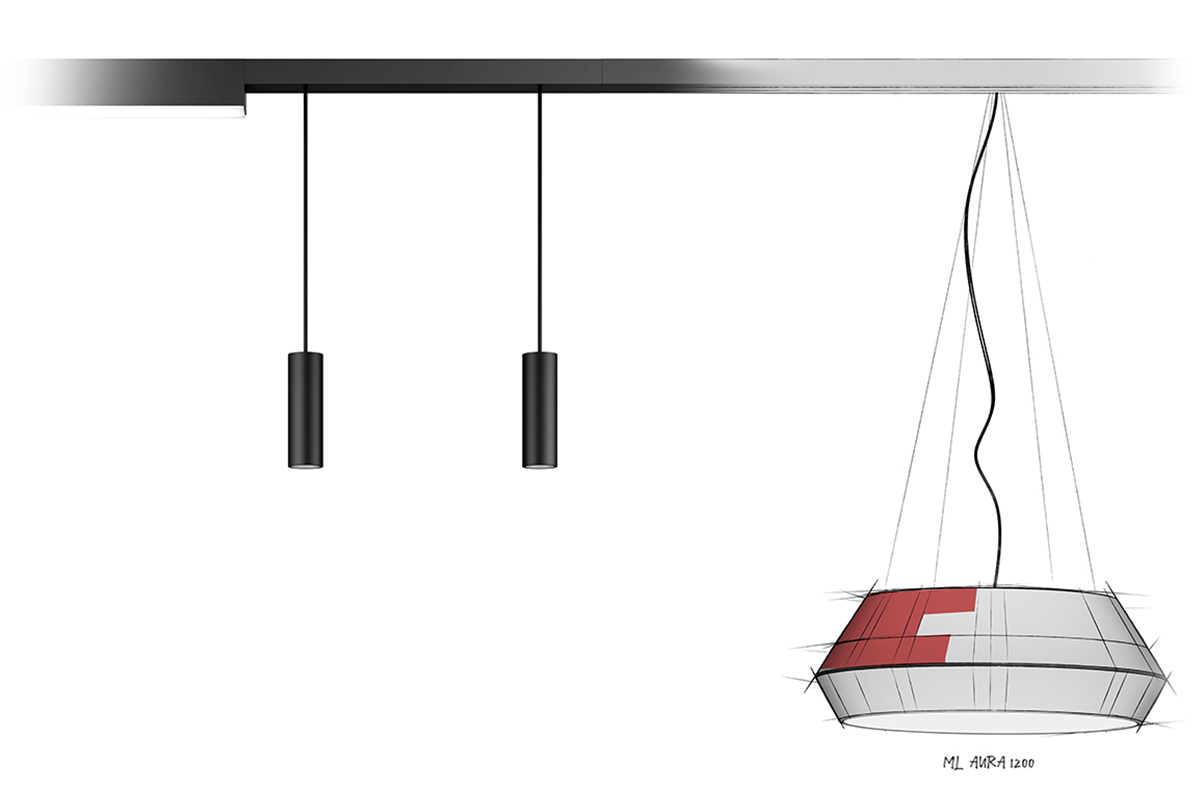

Project-specific solutions
Custom-made products
Office projects are diverse and frequently require high levels of creativity. Custom-made products are often part of the solution – as produced by the TRILUX artisan department or by Monolicht, our Swiss subsidiary. Here high-quality luminaires are made by hand, matched to needs and perfectly integrated into a Yonos lighting system.
Project-specific solutions
Special colours
Whether it’s a continuous line or single luminaire, Yonos adapts to individual wishes, architectural styles and surrounding colour concepts.
The housings are customisable in RAL colours on request.
RAL colour examples:
-

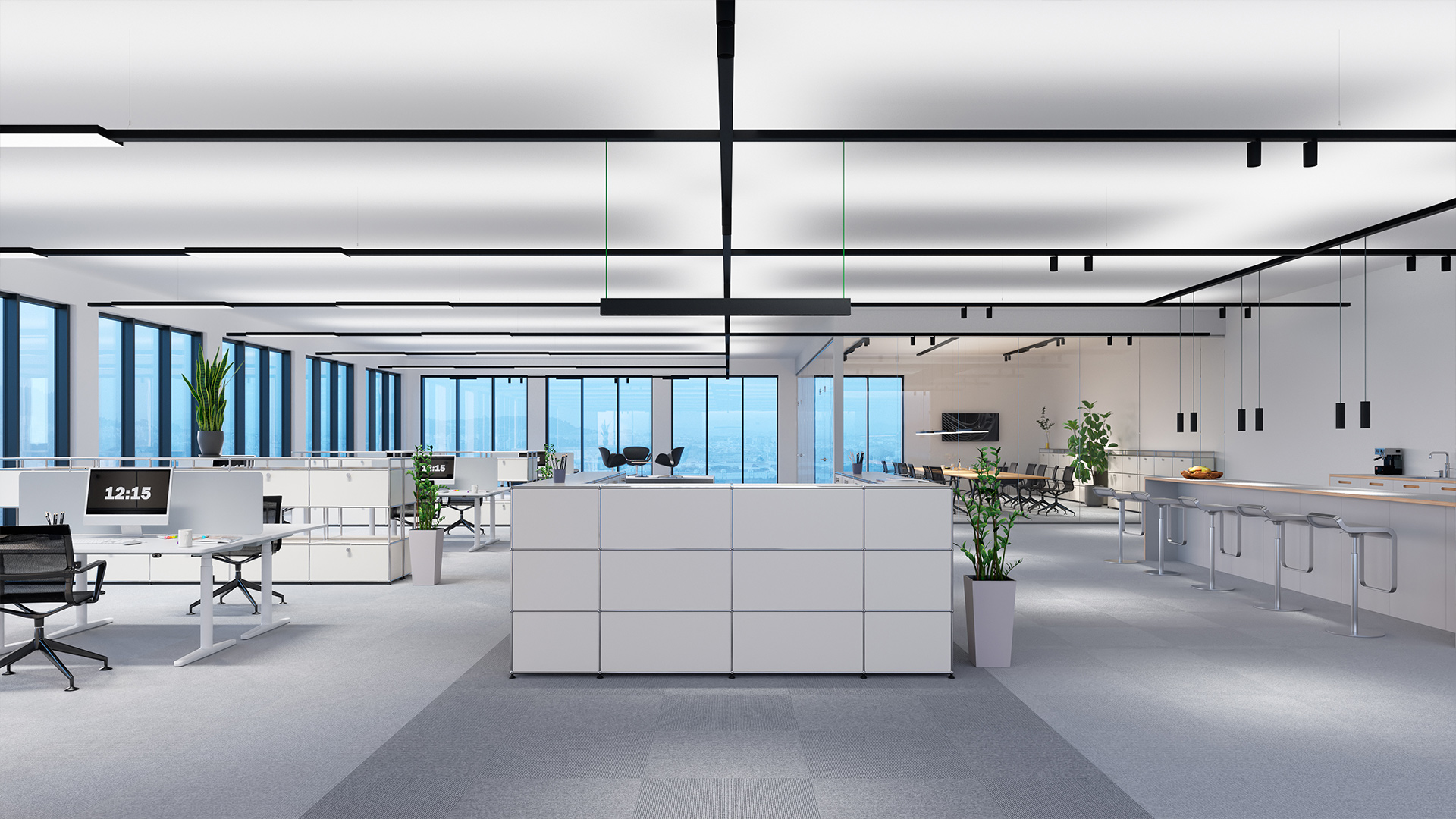

Offices in a new light
Individual classic situation, innovative realisation with Yonos: for example with standard-compliant glare-free ConVision® lens optic, indirect component and wireless control with Casambi Bluetooth.
-

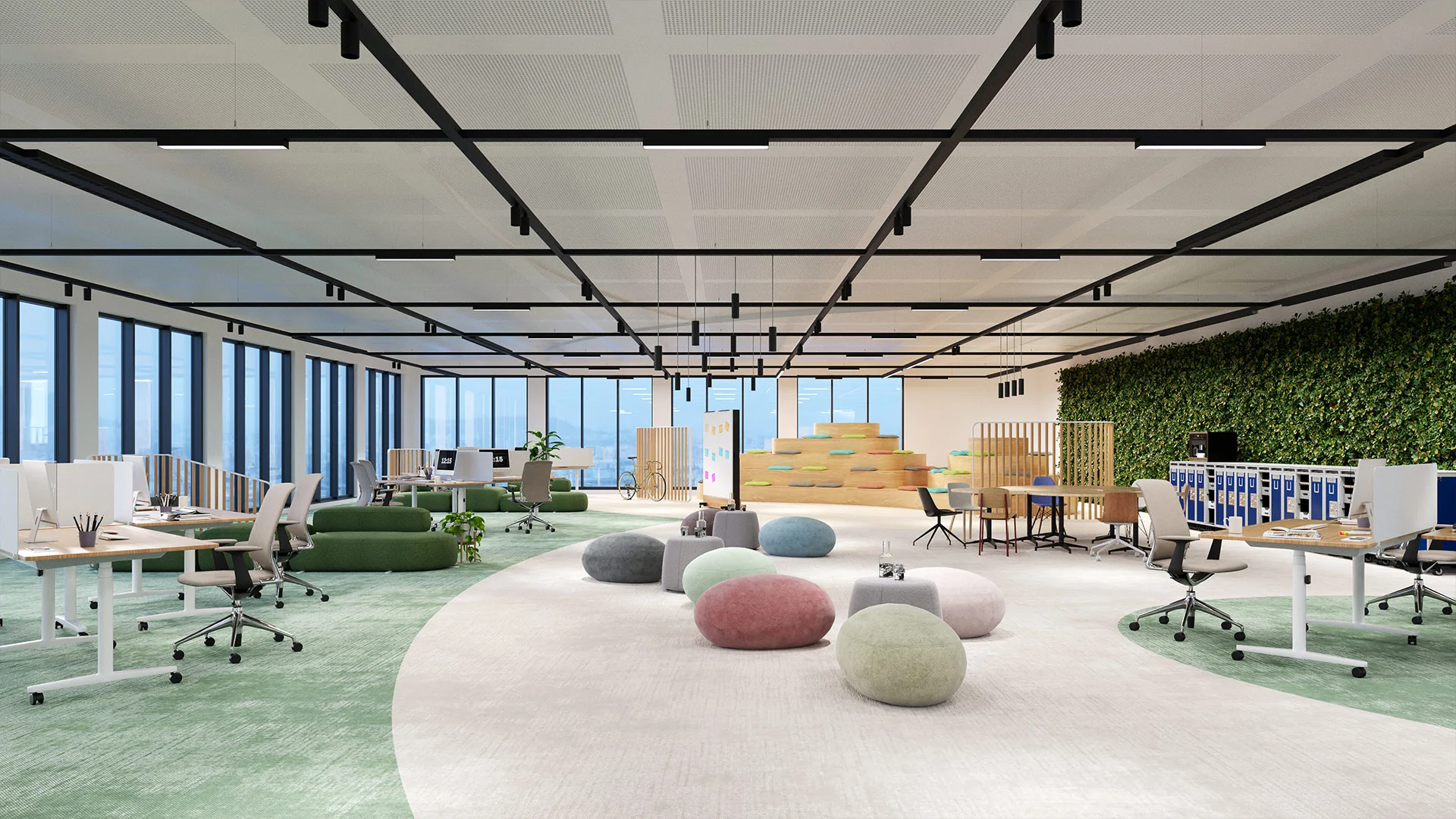

Welcome tomorrow.
Flexible Yonos supports New Work concepts in which, for example, casual meeting situations supplement classic workstations – as a grid formation with accent lighting and wallwashing for interior design.
-

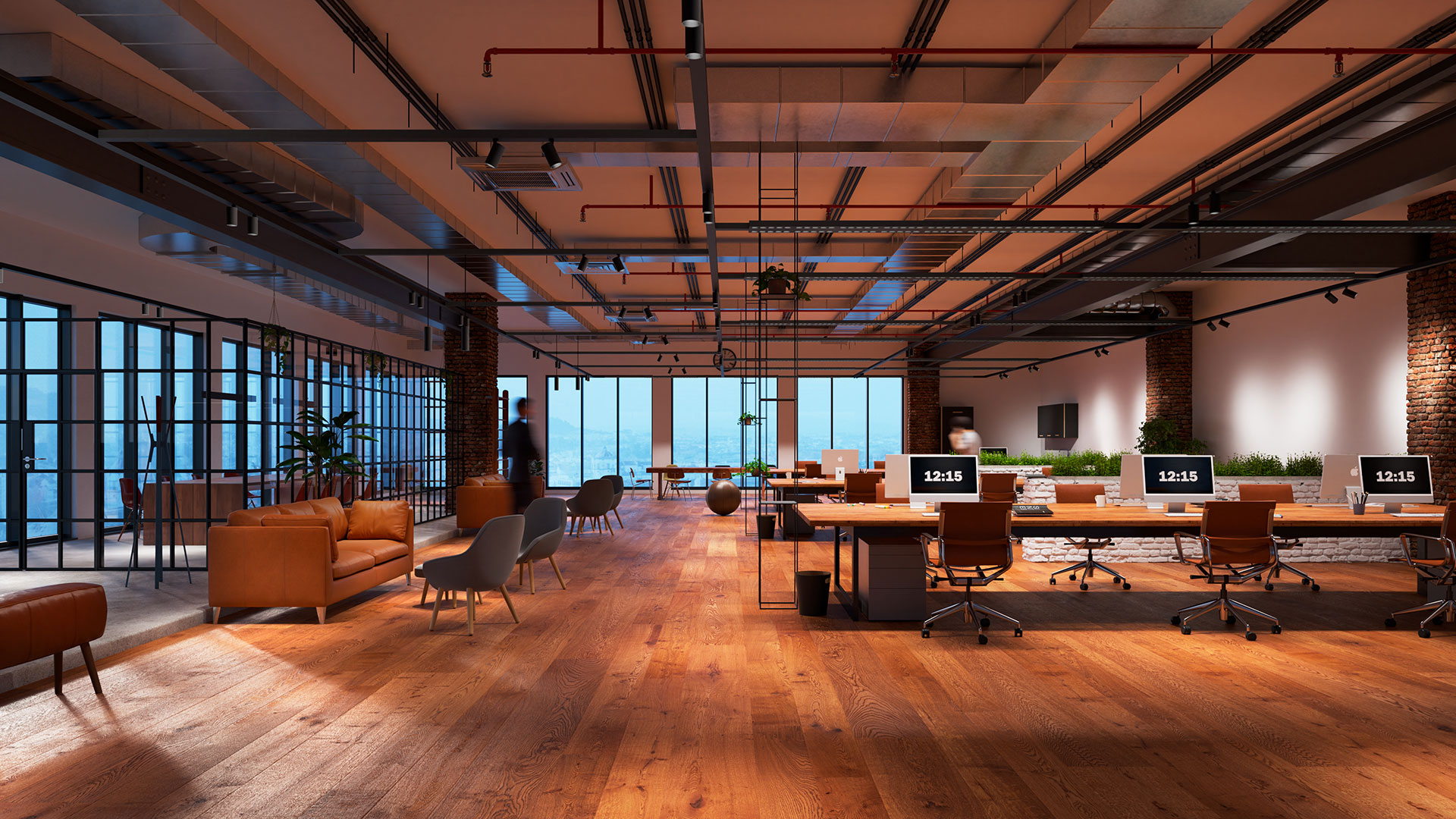

Yonos meets Industrial
Collaborative light organises the room: a Yonos structure marks the circulation routes. Luminaires with UGR <19 planar optics above the desks, spotlights on walls and and decorative pendant luminaires in the meeting zones.
| Yonos | |
| Mounting methods | Surface-mounted/suspendedLuminaires, functional and decorative inserts of any width and length completely encase the base unit |
| Width of base unit | 62 mm |
| Lengths of base unit in continuous line | 650 mm, 1300 mm, 1950 mm, 2600 mm |
| Lengths of base unit as single luminaire | 650 mm, 1300 mm, 1625 mm |
| Widths of luminaire inserts | 67 mm, 220 mm, 312,5 mm (312,5 mm only for surface mounted) |
| Lengths of luminaire inserts in continuous line | 650 mm, 1300 mm |
| Lengths of luminaire inserts as single luminaire | 650 mm, 1300 mm, 1625 mm |
| Lengths of functional and decorative inserts | 325 mm, 650 mm depending on the version |
| Glare reduction | Depending on the optical system: Directional with ConVision®: UGR <16 or UGR <19 Planar with prismatic: UGR <19 or UGR <22 Planar with opal: UGR <19 or UGR <22 |
| Optics | 3 ConVision® optics5 prismatic optics2 opal optics |
| Direct light distribution curves | Wide, Narrow, Wallwasher |
| Indirect light distribution curves | Extreme wide |
| Direct / indirect light distributions | 70/30, 80/20, 90/10, 50/50, 0/100 |
| Colour rendering | CRI 80 / 90 |
| Colour temperatures | 3000 K / 4000 K / 2700-6500 K |
| Energy efficiency | Up to 190 lm/W |
| Individually configurable luminous flux packages | 1.500 lm to 10.000 lm |
| Service life | 50.000 h L90 at 25°C |
| Housing colour | White 01 (RAL 9016)Silver 03 (RAL 9006)Black 05 (RAL 9005) |
| Wiring (LV) | 5-pole or 7-pole |
| Electrical version | ETDD, RF |
| Tap distances | 325 or 650 mm |
| Protection rating on room side | IP20 |
| Connectors | L- T-C-X-connectors |
| Further features | Spotlight-, pendant luminaire-, sensor-, light management-, emergency light- and blind module inserts |
