Sonnos

ONE RANGE. ONE WORLD OF DESIGN. COMPLETE FLEXIBILITY.

Diverse modular kit with wide selection of sizes, optics, luminous intensities and light colours. Intelligently designed accessories for refurbishment. Excellent quality of light with TRILUX ConVision® technology.

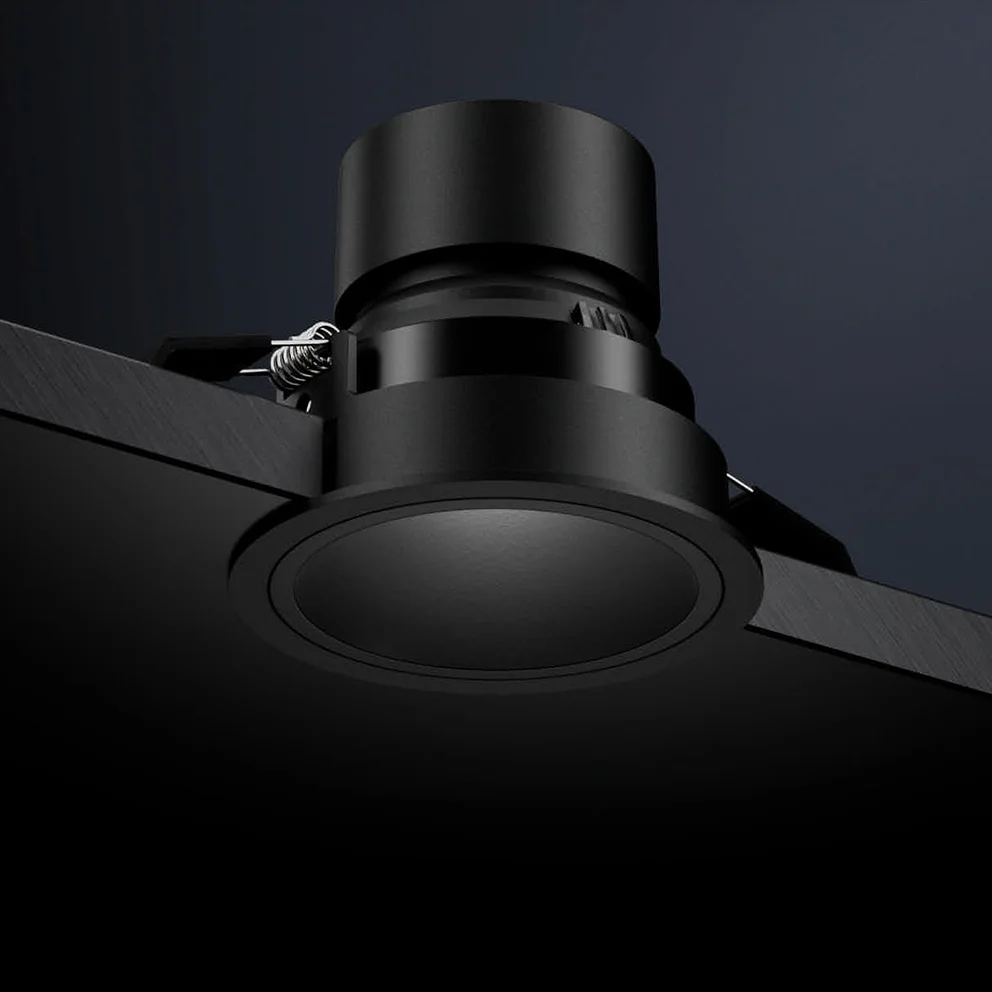

Equipped as standard for intelligent light management. Clever mounting concept for quick, tool-free installation.

Maximum flexibility

Round or square, horizontal or vertical lighting, from narrow distribution spotlights to high lumen-output wallwashers: Sonnos LED is available in five sizes for ceiling cut-outs from 45 to 210 mm. The design, materials and lighting technology of the various product versions are consistent. All variants can be ideally combined in a single project.

  • 2 types
  • 5 sizes
  • 1 design

Highest quality of light

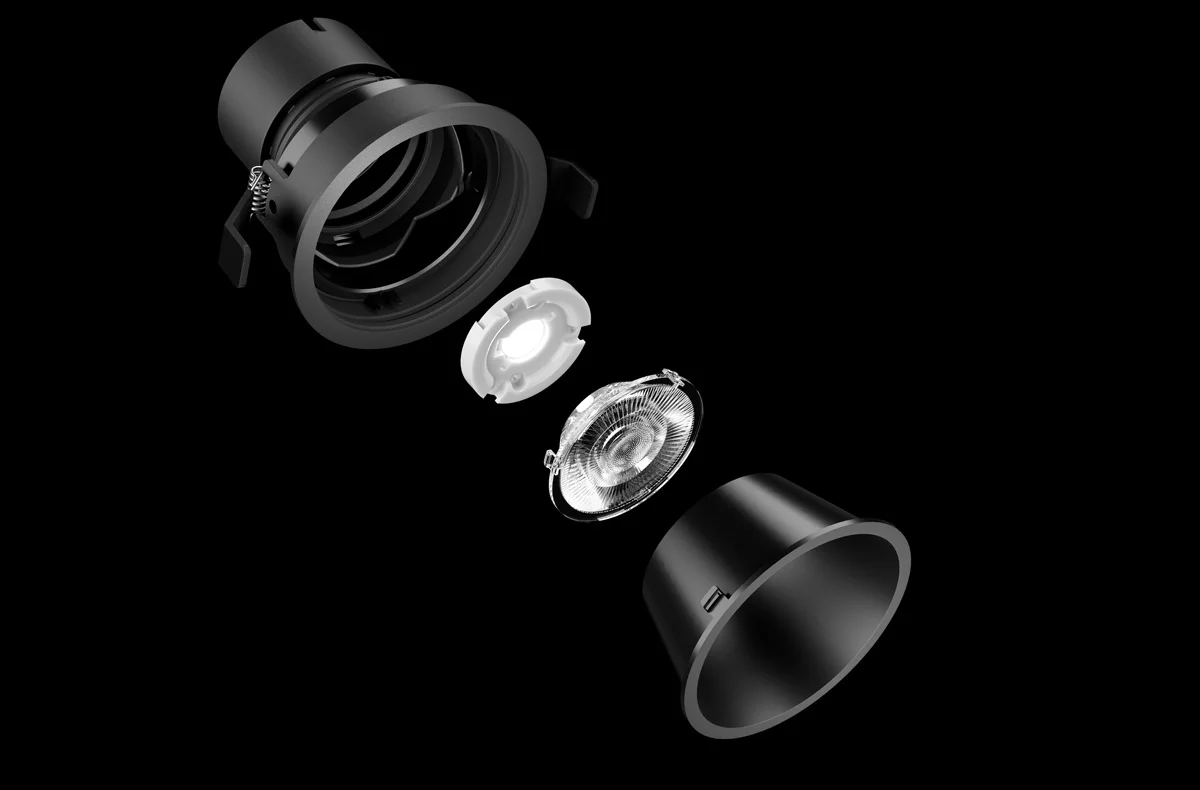

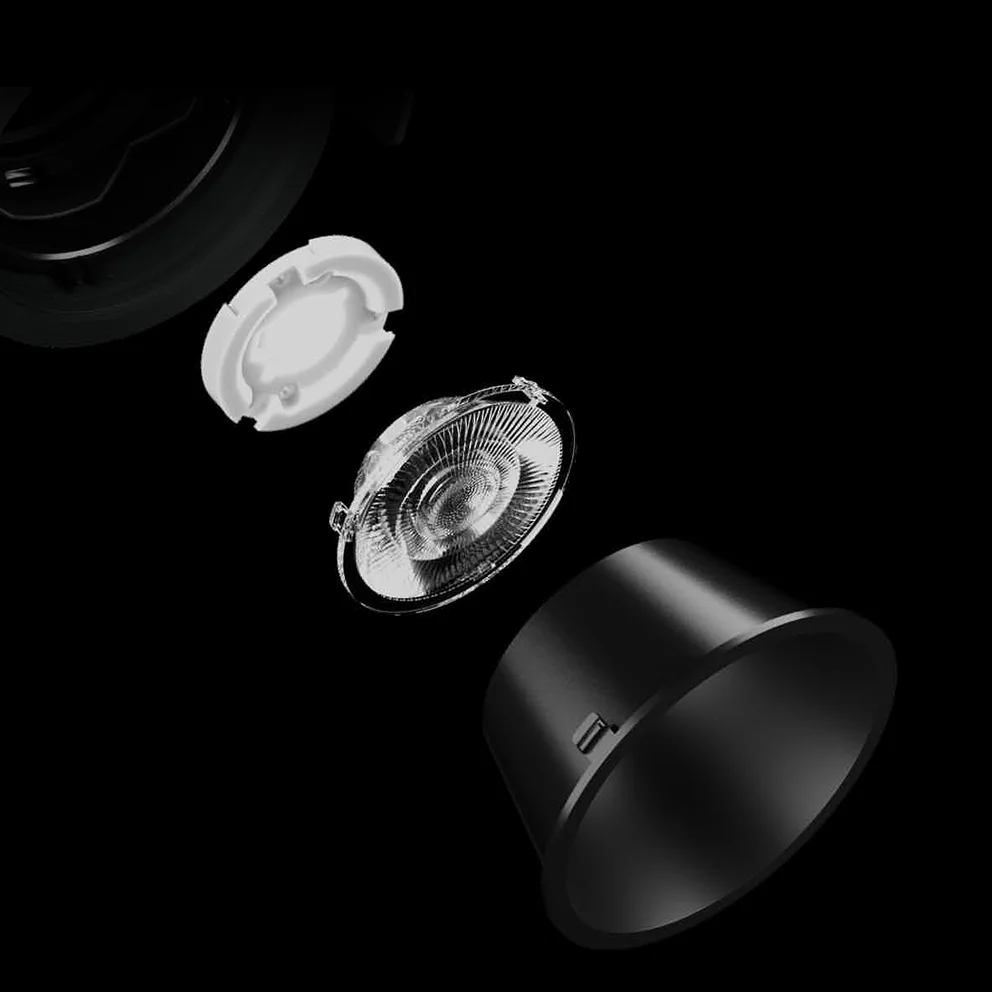

Less spill light, less glare – Sonnos LED luminaires with ConVision® technology create a directional, pleasant light for surfaces and objects with new three-dimensionality. The optical system consists of two precisely matched elements: the lens for directing the light and the limiter for controlling direct glare. The light-diffusing spherical domes in the centre of the lens are arranged in a Fibonacci structure according to the example of nature. This creates maximum quality of light in the room and maximum visual comfort for people.

Collimator/lens technology + limiter in 5 different surfaces


Highest quality of light

Less spill light, less glare – Sonnos LED luminaires with ConVision® technology create a directional, pleasant light for surfaces and objects with new three-dimensionality. The optical system consists of two precisely matched elements: the lens for directing the light and the limiter for controlling direct glare. The light-diffusing spherical domes in the centre of the lens are arranged in a Fibonacci structure according to the example of nature. This creates maximum quality of light in the room and maximum visual comfort for people.

Collimator/lens technology + limiter in 5 different surfaces


Diverse possibilities

Recessed, surface-mounted or pendant - the many variants of Sonnos LED are easy to handle with the configurator. With just a few clicks, all the data for further planning is quickly generated. Do your requirements go beyond the options in the configurator? No problem - we will be happy to advise you on individual, project-specific solutions!

Ideal for refurbishment

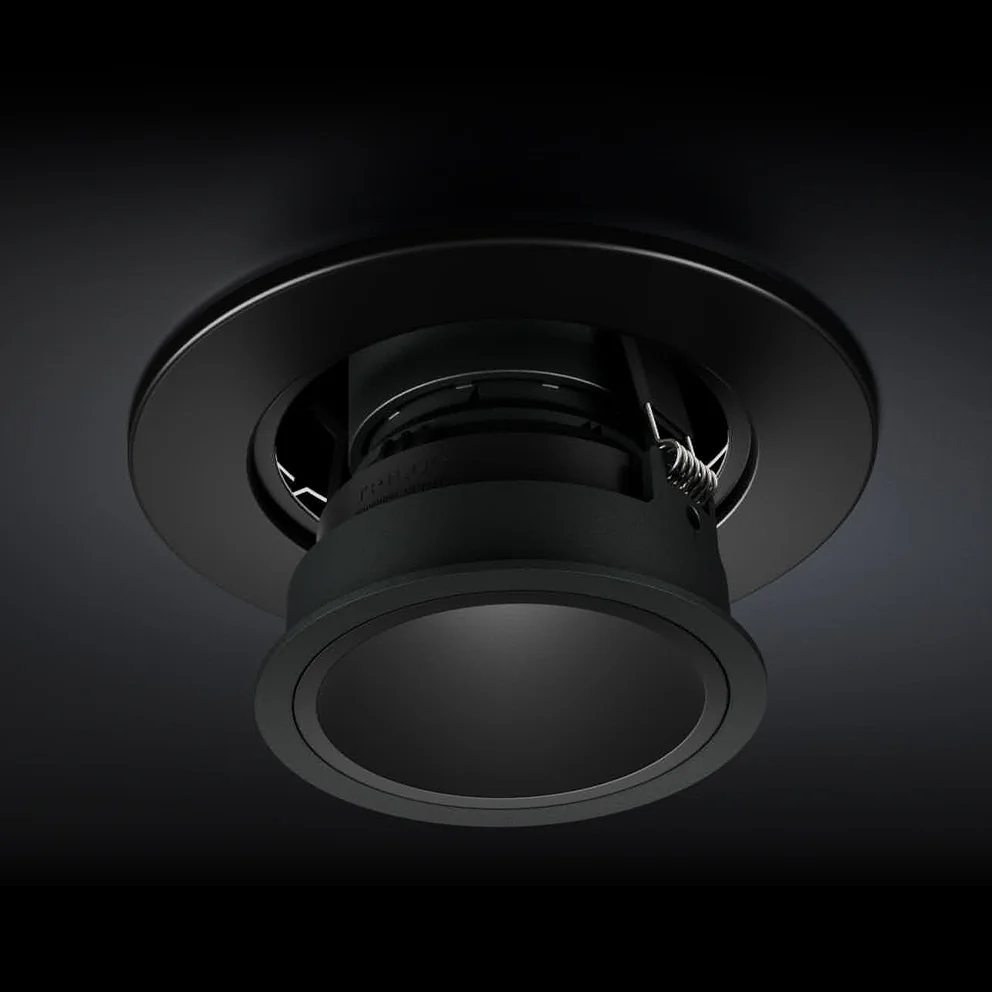

Less power consumption, better light: the Sonnos range of luminaires is ideal for refurbishing old systems. Existing ceiling cut-outs are no problem. The diameter of the luminaire can be extended to the appropriate size thanks to a refurbishment ring. Round or square laminating plates conceal larger hole sizes or unclean ceiling cut-outs.

Eligible for BEG subsidies, refurbishment fit Ø 68 - 340 mm

Diverse possibilities

Recessed, surface-mounted or pendant - the many variants of Sonnos LED are easy to handle with the configurator. With just a few clicks, all the data for further planning is quickly generated. Do your requirements go beyond the options in the configurator? No problem - we will be happy to advise you on individual, project-specific solutions!

Ideal for refurbishment

Less power consumption, better light: the Sonnos range of luminaires is ideal for refurbishing old systems. Existing ceiling cut-outs are no problem. The diameter of the luminaire can be extended to the appropriate size thanks to a refurbishment ring. Round or square laminating plates conceal larger hole sizes or unclean ceiling cut-outs.

Eligible for BEG subsidies, refurbishment fit Ø 68 - 340 mm

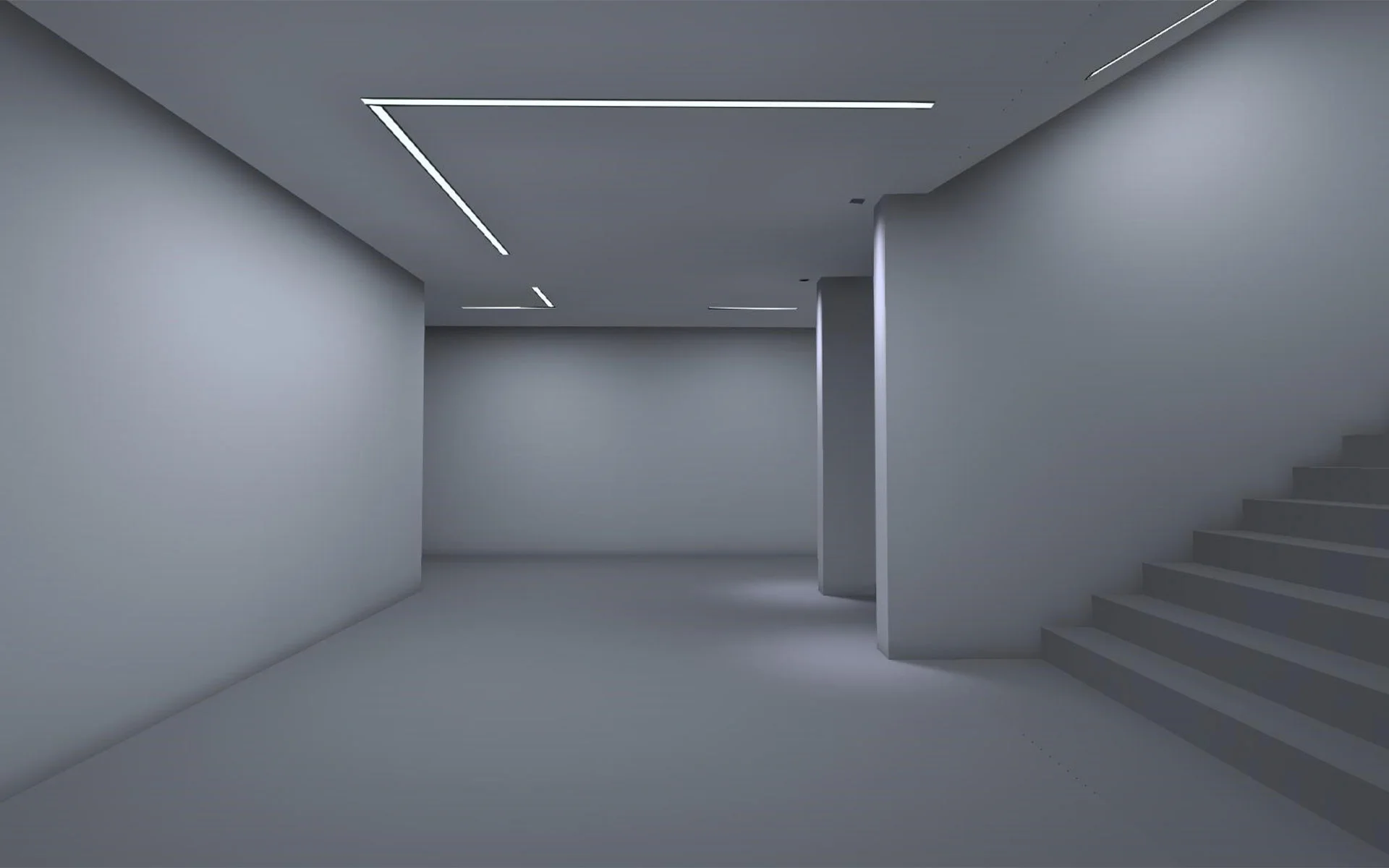

From point to line

Perfect match!

In some projects, linear light channels are an ideal complement to the directional light of a point light source. The Finea light channel system not only matches the lighting properties of Sonnos in terms of quality of light and ConVision® technology. Finea and Sonnos can be optimally combined. Both Finea C 35 and Sonnos RC0 systems have an outer diameter of approx. 50 mm, which ensures a harmonious and aesthetic interplay.

Sustainability

Suitable for certified construction

High efficiency and durability make Sonnos a sustainable product for the future. In combination with the intelligent LIVELINK Lighting management system, companies can save up to 85% of energy costs and CO2 emissions compared to conventional, unregulated lighting. With maximum efficiency, Sonnos LED thus becomes a building block for sustainable building certification, such as BREEAM or DGNB.

Modular means recyclable

Modularity is an important prerequisite for repairability and recyclability. Sonnos LED luminaires are already designed to enable the replacement of individual components. At the end of their product life cycle the luminaires can be dismantled into individual components and returned to the value chain.

Plastic-free packaging – individual or bulk

The packaging concept of Sonnos is designed to use cardboard only, without any plastic. The cartons are folded and can easily be broken down by hand for quick disposal after use. In addition to individual packaging, we also offer bulk packaging upon request. This reduces packaging waste, lowers disposal costs, and helps protect the environment. Moreover, bulk packaging simplifies handling and logistics, speeds up installation, and supports sustainable, efficient project execution.

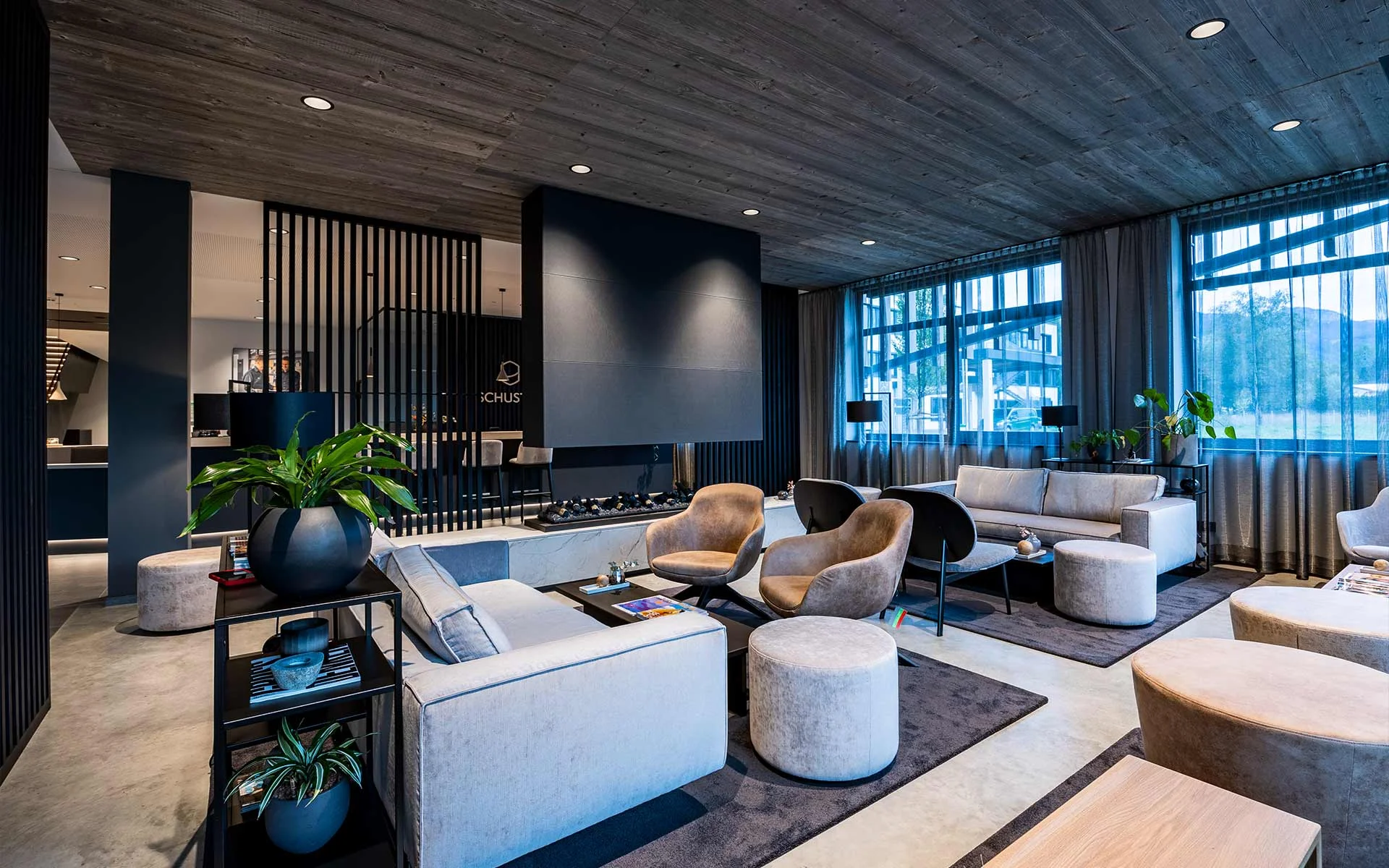

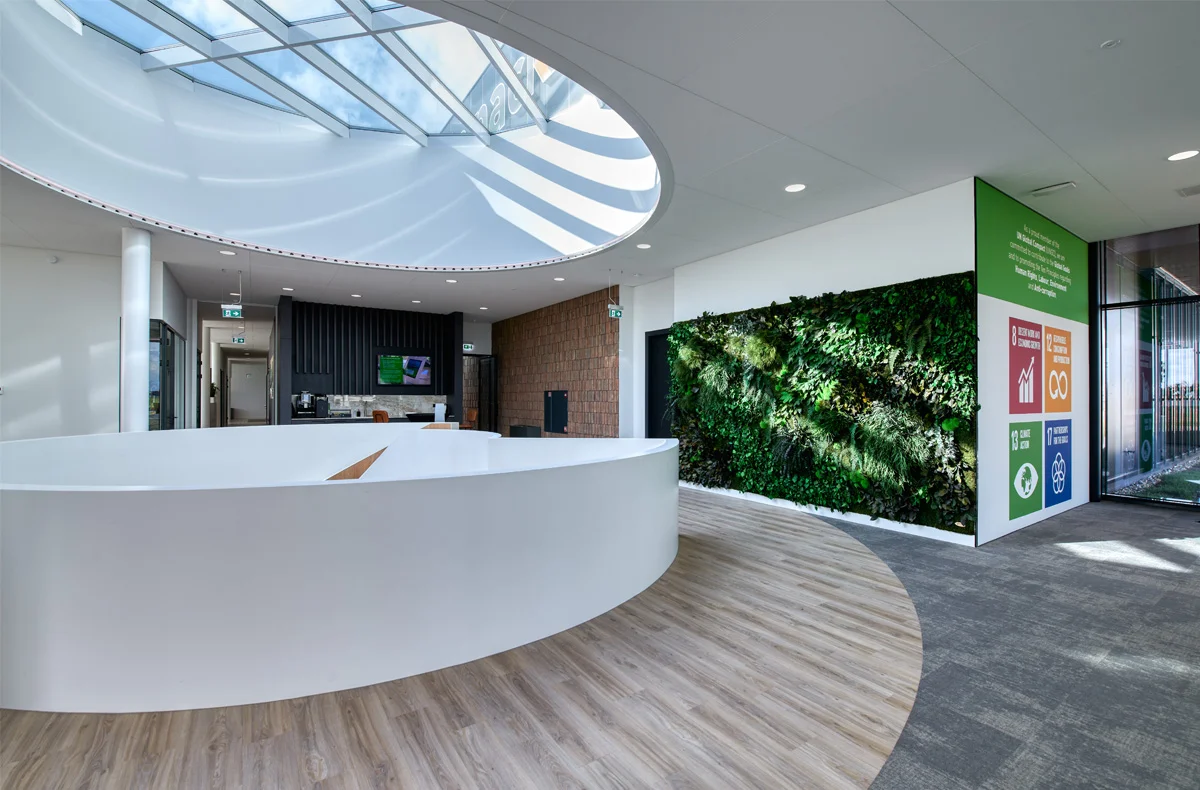

  • Foyers and reception areas

    Downlights, directional spotlights, spotlights, pendant luminaires and wallwashers: Sonnos offers high quality light for projects in offices and public buildings.

  • Corridors and circulation zones

    Sonnos downlights structure corridors and hallways. The 80° extra wide beam angle (extreme wide flood) enables maximum spacing between the light points. A semi-specular diffuser illuminates floor surfaces softly and without glare.

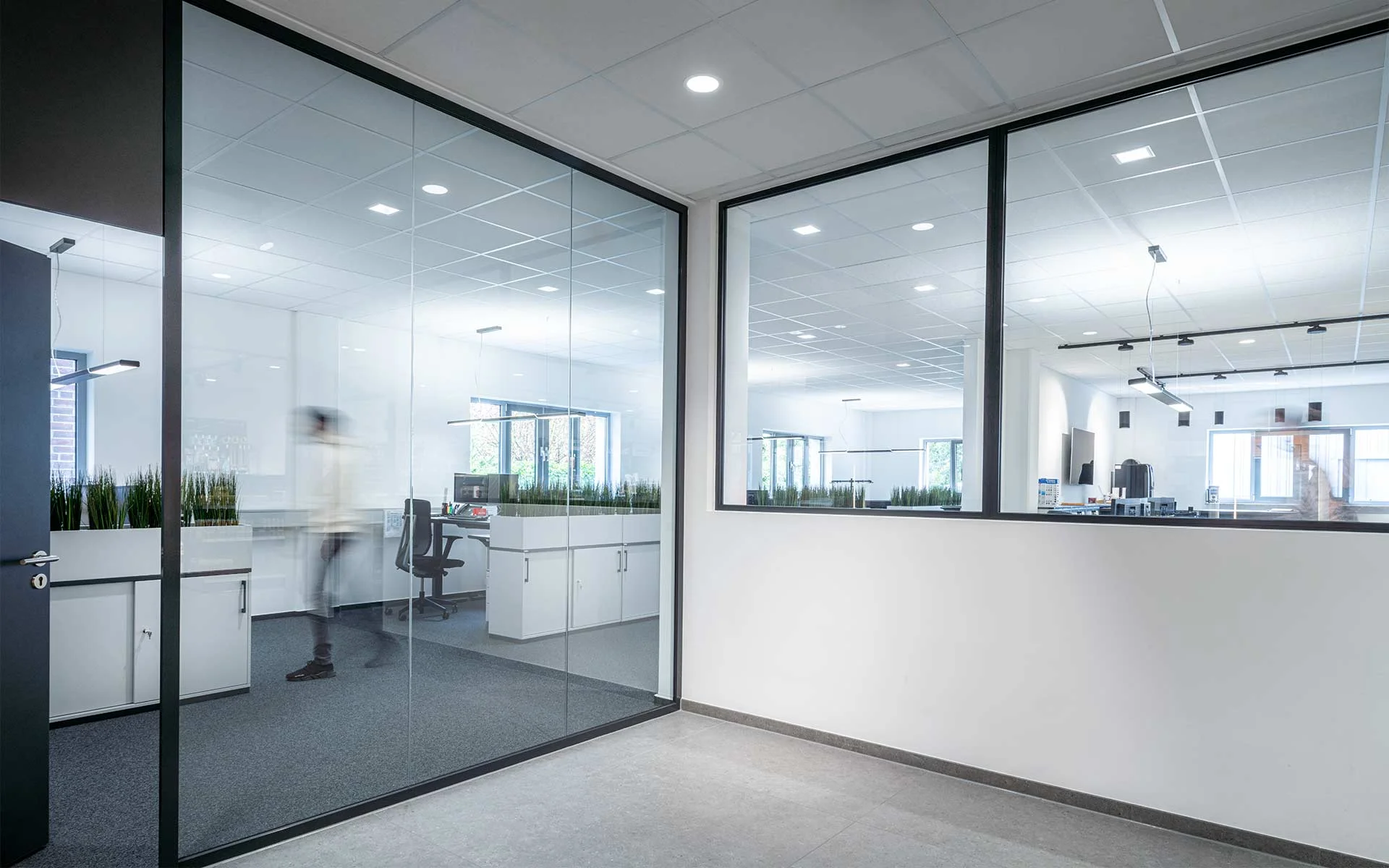

  • Offices and conference rooms

    Energy-efficient workplace lighting: the consistently high colour rendering index of Ra >90, very good glare limitation and light control with collimator technology ensure high quality light at the workplace.

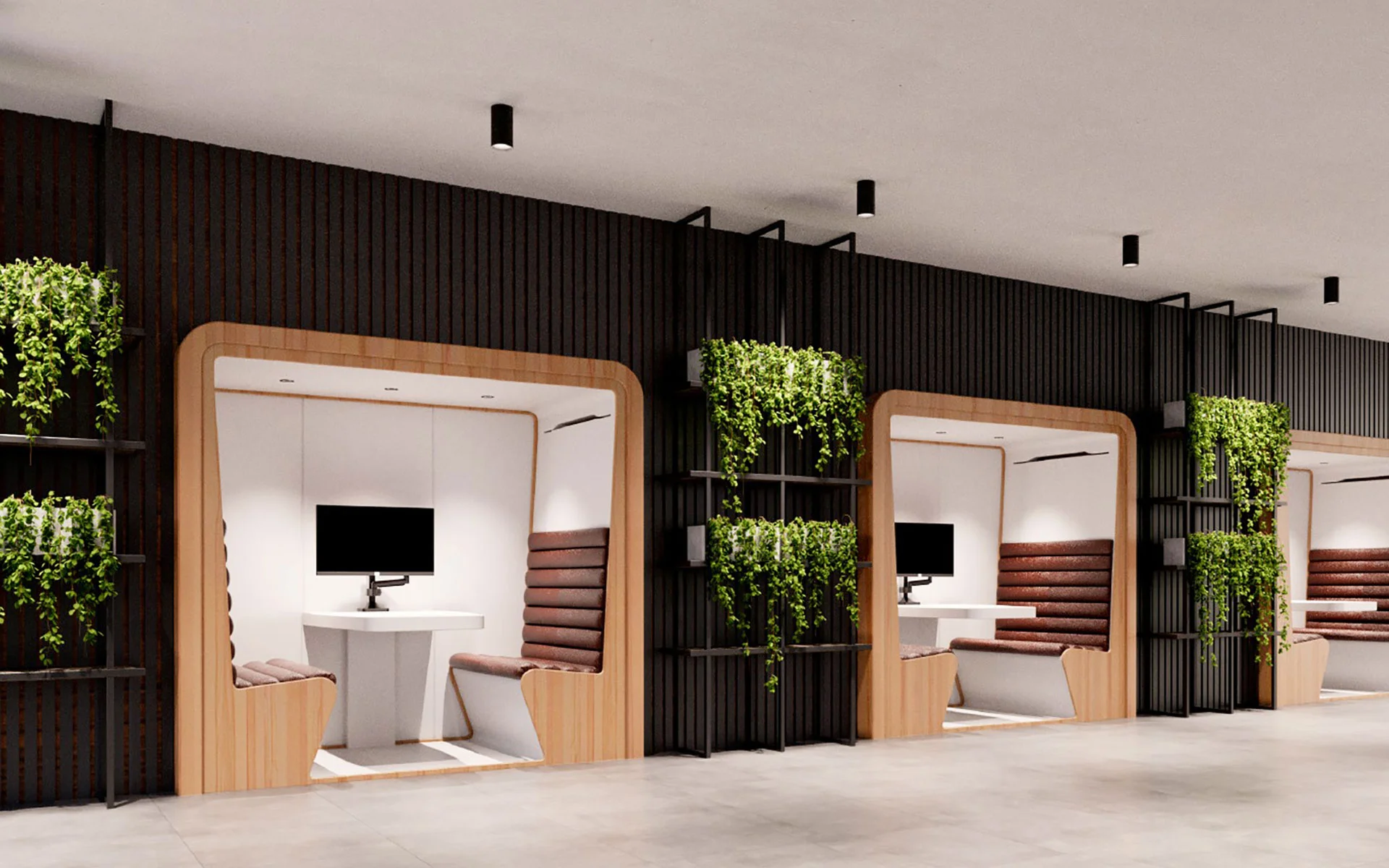

  • Niches and meeting boxes

    With its compact diameter and minimalist design, Sonnos is ideal for illuminating retreats evenly and without glare. Thanks to its shallow installation depth, it even fits in where space is limited. Whether in modern offices, hotels, corridors or bistros - Sonnos sets decorative lighting accents.

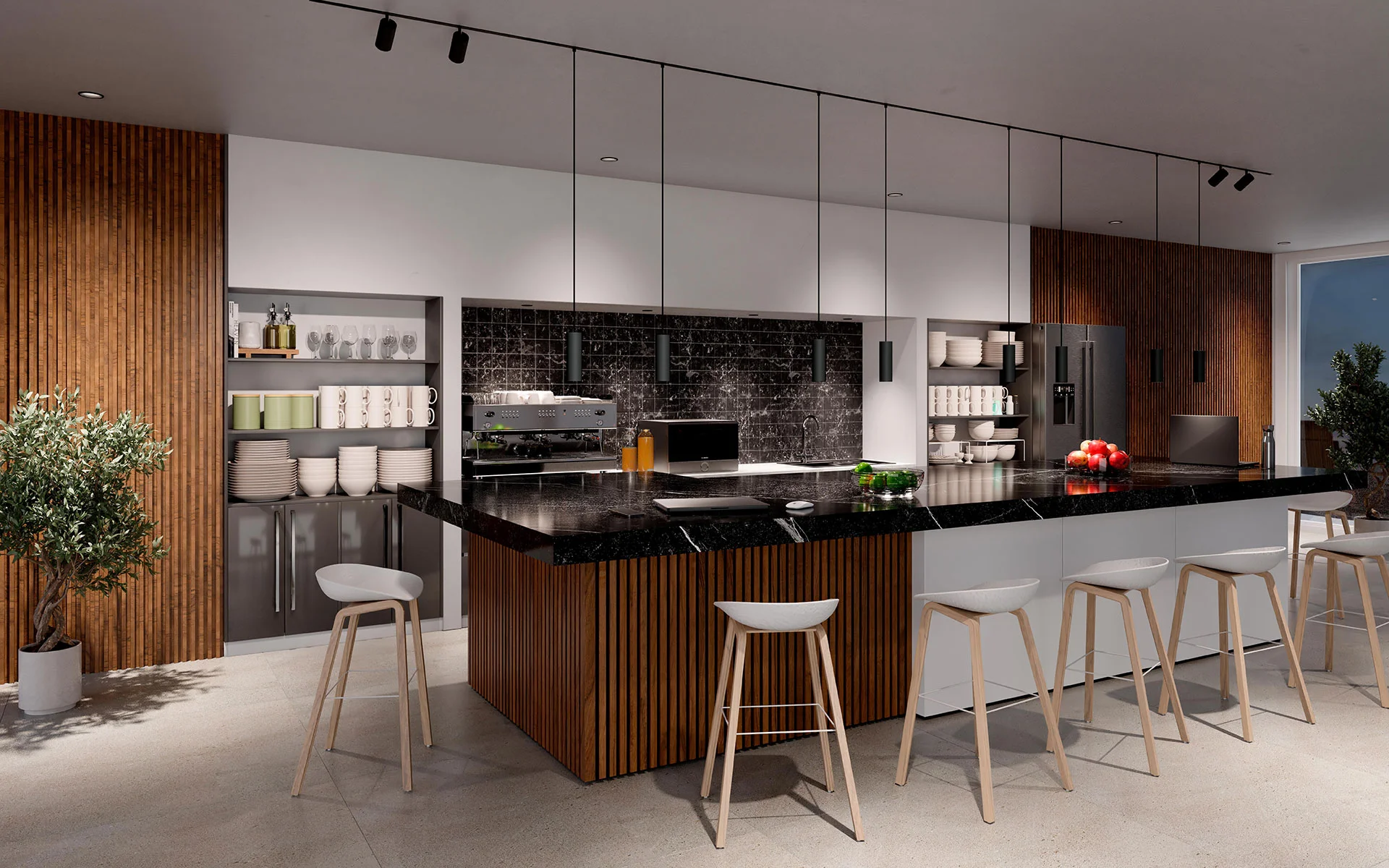

  • Planning diversity for vertical and horizontal surfaces

    Whether directional spotlights for installation in ceilings or track, decorative pendant luminaires or compact downlights for wall recesses - Sonnos offers versatile options for the accent lighting of walls, tables and counters. With consistent lighting technology and uniform design.

Technical Data

Type round, square
Sizes for 45 mm, 68 mm, 100 mm, 150 mm or 210 mm ceiling cut-out
Luminous flux packages 450 lm, 500 lm, 800 lm, 1400 lm, 2000 lm, 2600 lm oder 3800 lm oder 5000 lm
Beam characteristics medium flood (24°), floor (36°), very wide flood (60°), extreme wide flood (80°), wallwasher
Moveability fixed or pivotable as directional spotlight
Service life 50.000 h L90, ta 25°
Colour temperature 2.7000 K, 3.000 K, 4.000 K
Tunable White colour temperature 2.700 K bis 6.500 K
Dim2Warm colour temperature approx. 2700 K at 100%, approx. 1800 K at 1%
Mounting options trimless, overlapping, ceiling-raised or suspended
Reflectors optionally highly specular, semi-specular, white, black or gold; others on request
Colour of cover rings and surface-mount housing silver, black white or gold, others on request
Protection rating on room side IP54 - recessed; recessed trimless
IP44 - wallwashers
IP20 - directional spotlights, surface-mounted / pendant luminaires
