Opendo G2

Advanced lighting.

Learn effectively, work productively: easy to do if the light and design are right – as is the case with Opendo G2. The new generation of the successful luminaire range for schools and work offers even better quality of light, efficiency and ease of installation at an affordable price.

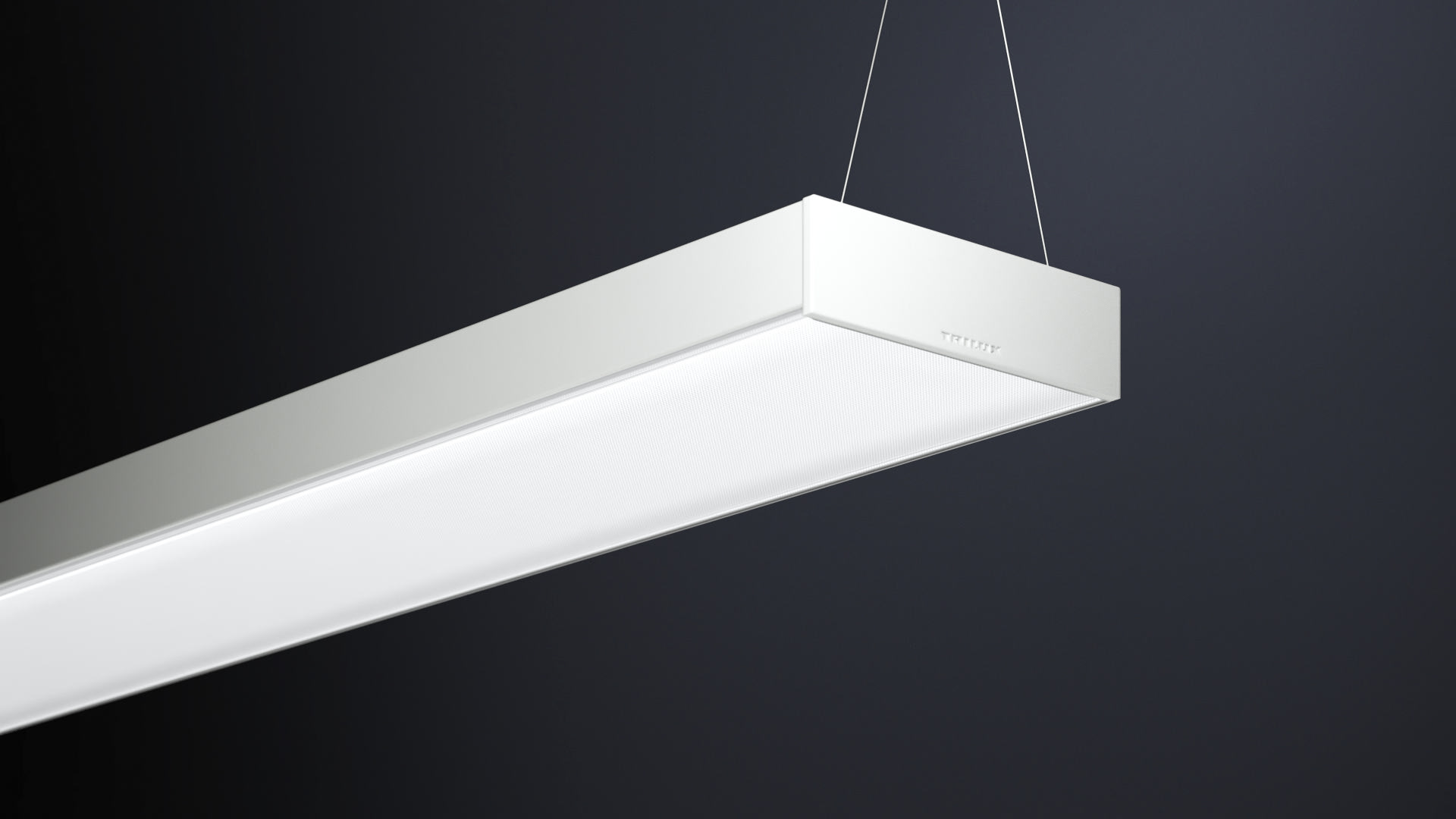

Harmonious:

Design and light emission

Its classic, understated design with the lateral light edge makes Opendo G2 a universal luminaire for classrooms and offices. Its uniform light emission surface across the entire width of the luminaire ensures soft room illumination: that’s how pleasant learning and working can be!

Harmonious:

Design and light emission

Its classic, understated design with the lateral light edge makes Opendo G2 a universal luminaire for classrooms and offices. Its uniform light emission surface across the entire width of the luminaire ensures soft room illumination: that’s how pleasant learning and working can be!

Rational

Installation-friendly details

It couldn't be simpler: mount the Opendo G2 housing, connect the plug, snap in the light insert – done! The electrical feed on the rear is now centrally on the luminaire housing. With the new generation, power feed at the face end is also possible without accessories. When installed as a continuous line, one feed is sufficient thanks to through-wiring.

Rational

Installation-friendly details

It couldn't be simpler: mount the Opendo G2 housing, connect the plug, snap in the light insert – done! The electrical feed on the rear is now centrally on the luminaire housing. With the new generation, power feed at the face end is also possible without accessories. When installed as a continuous line, one feed is sufficient thanks to through-wiring.

Diverse

For universal applications

Continuous line or single luminaire, recessed, surface-mounted or suspended, symmetric or asymmetric light distribution – Opendo G2 has the right solution for any situation. It can also be easily networked, for example with LiveLink or Casambi. Variants with function modules such as daylight- and presence sensors or emergency light LED are available. Of course, many variants feature Tunable White. This is ideal for HCL concepts that enhance well-being.

Diverse

For universal applications

Continuous line or single luminaire, recessed, surface-mounted or suspended, symmetric or asymmetric light distribution – Opendo G2 has the right solution for any situation. It can also be easily networked, for example with LiveLink or Casambi. Variants with function modules such as daylight- and presence sensors or emergency light LED are available. Of course, many variants feature Tunable White. This is ideal for HCL concepts that enhance well-being.

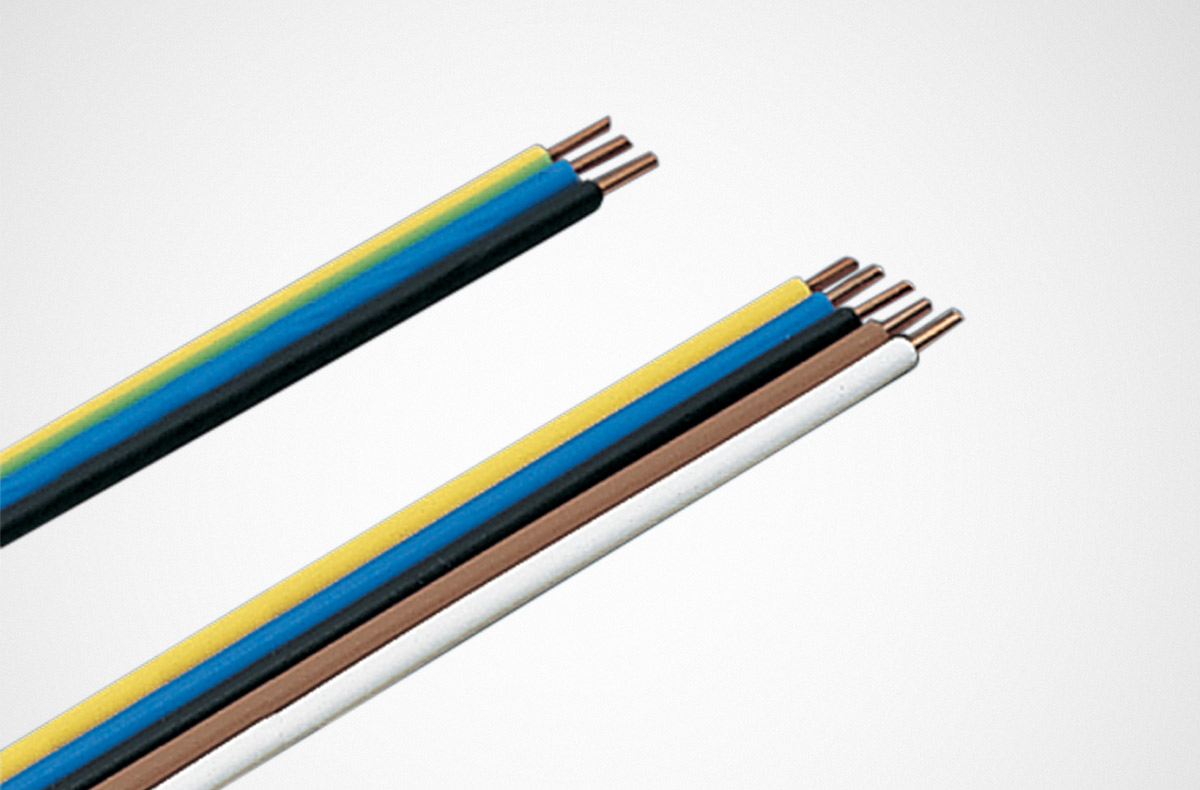

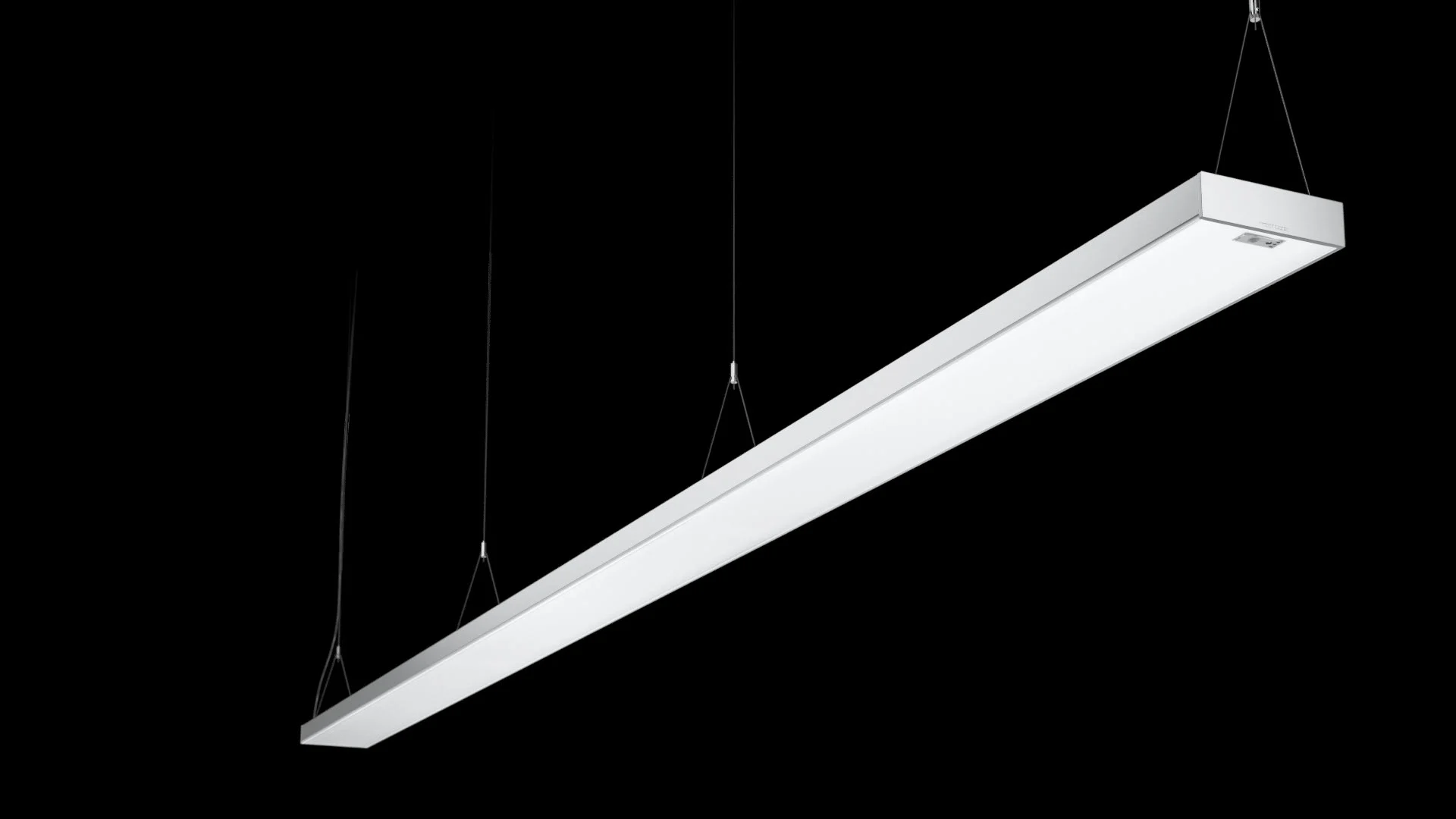

  • Continuous line with through-wiring

    Rapid installation as continuous line thanks to through-wiring with only one power feed.

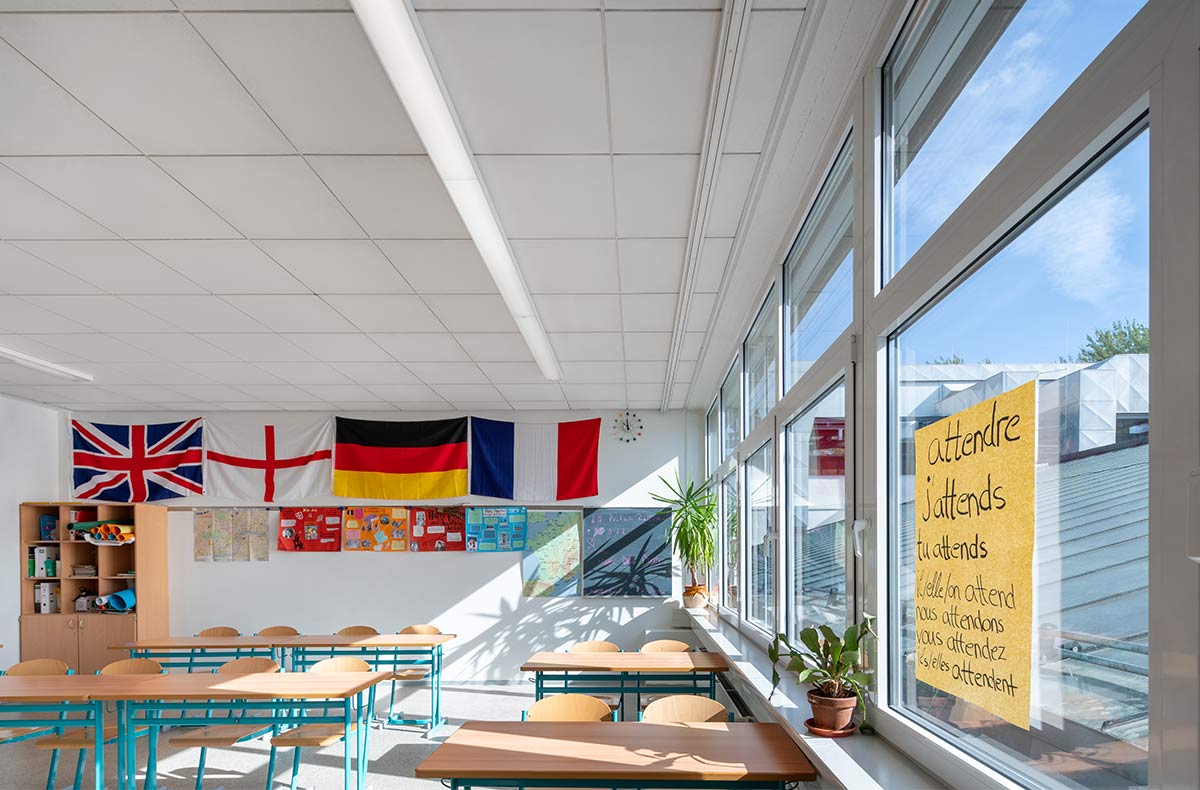

  • HCL – dynamic quality of sunlight

    Human Centric Lighting strengthens the biorhythm and increases well-being.

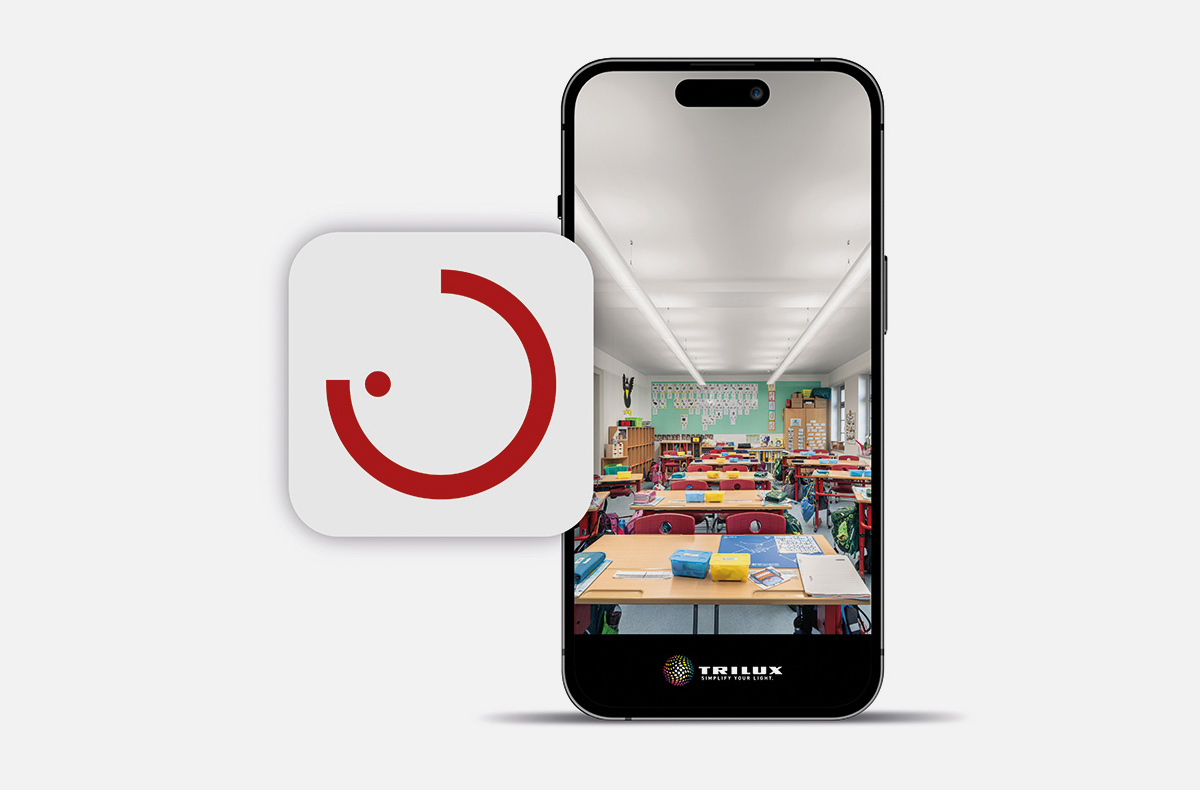

  • Networking, light management and sensor technology

    Simple networking with LiveLink wired or as a Casambi wireless solution – with the option of saving additional energy through daylight- and presence sensors.

  • Accessible control gear unit

    The control gear is easy to replace: a sustainable, maintenance-friendly solution.

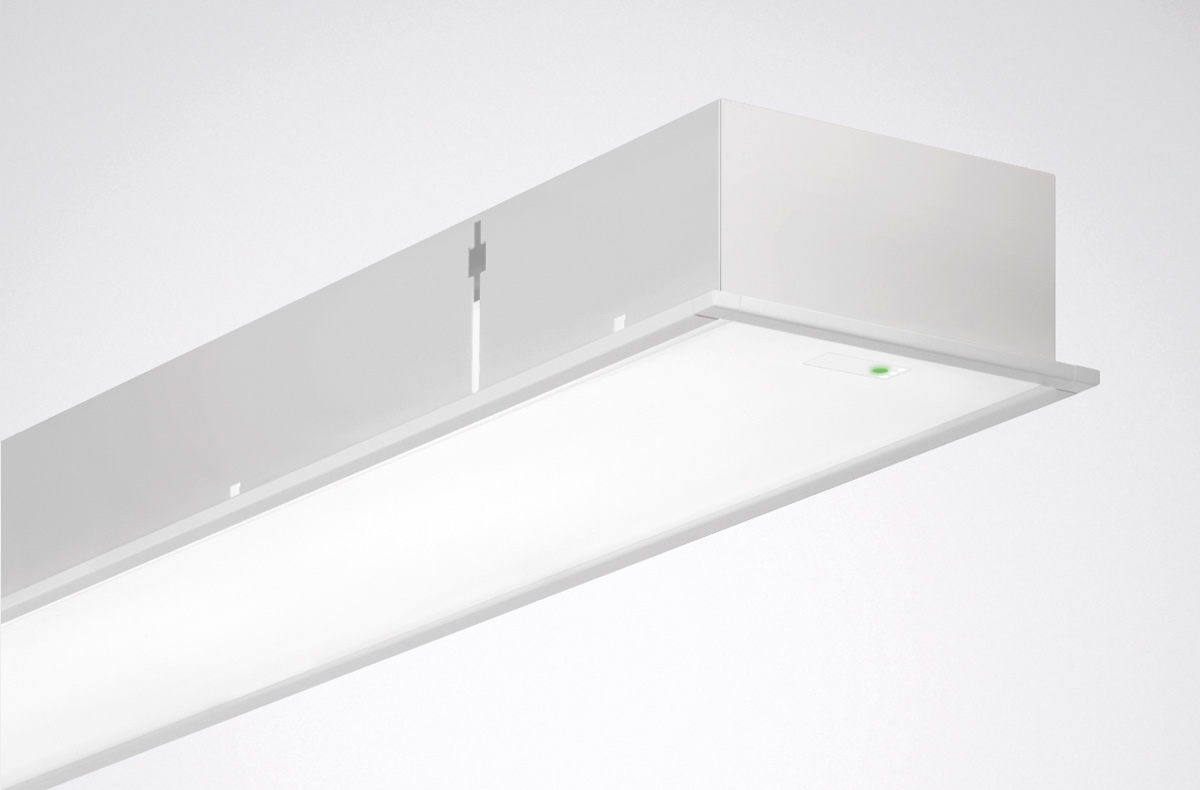

  • Emergency light system with integrated battery

    All inclusive: Opendo G2 is available as a version with emergency light function and integrated battery.

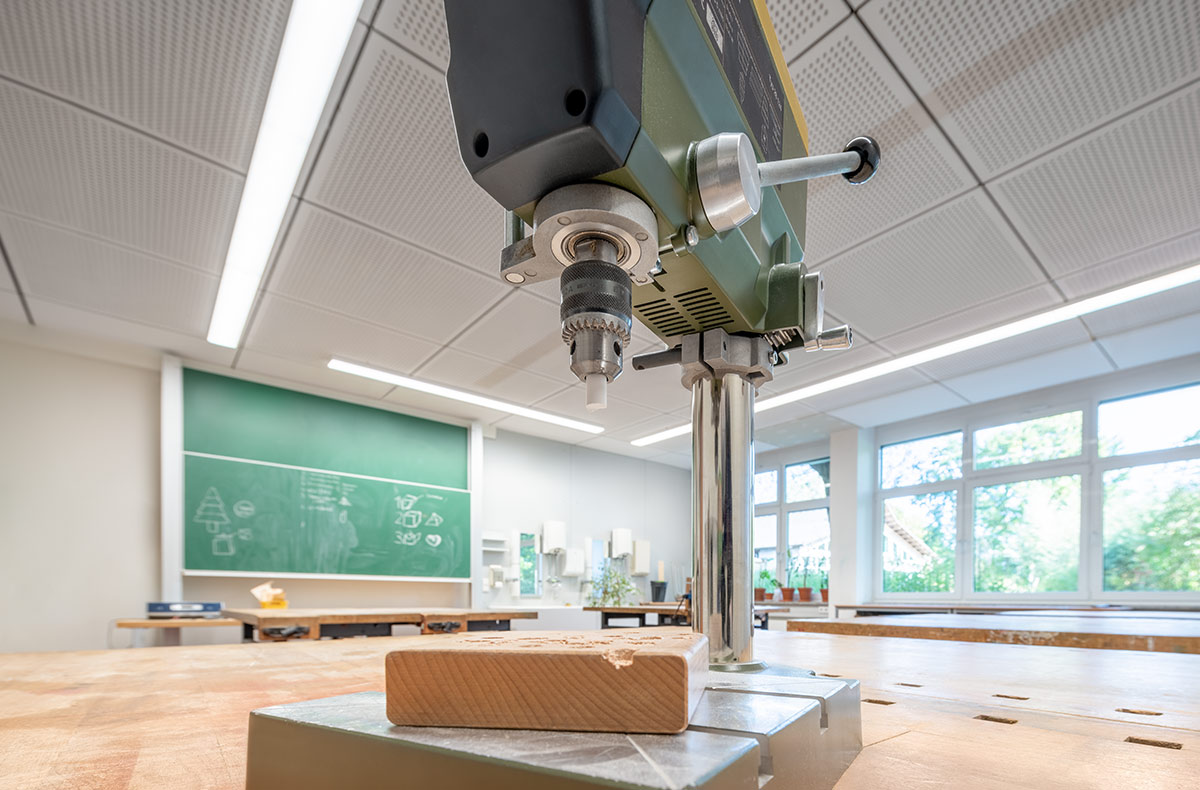

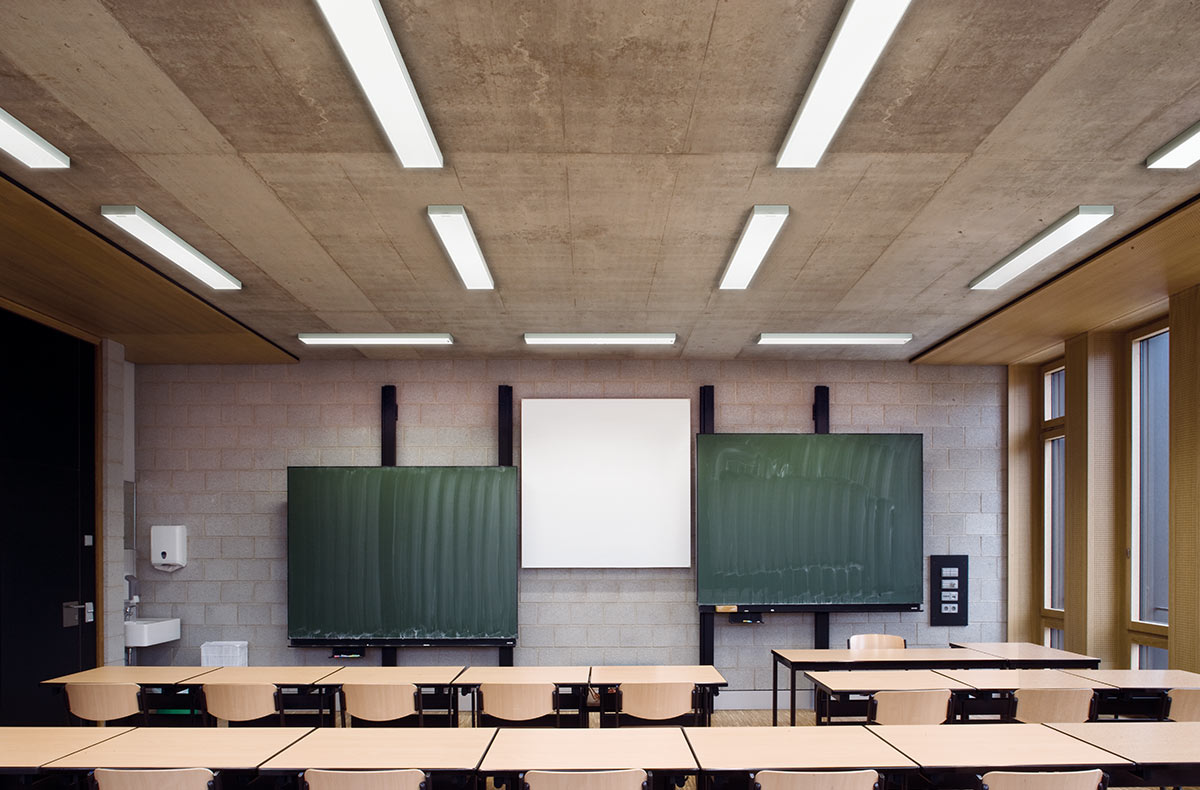

  • Refurbishment-optimised design

    Luminaire width, feed points, drill holes – everything is geared towards quick 1:1 refurbishments of predecessor luminaires (504..).

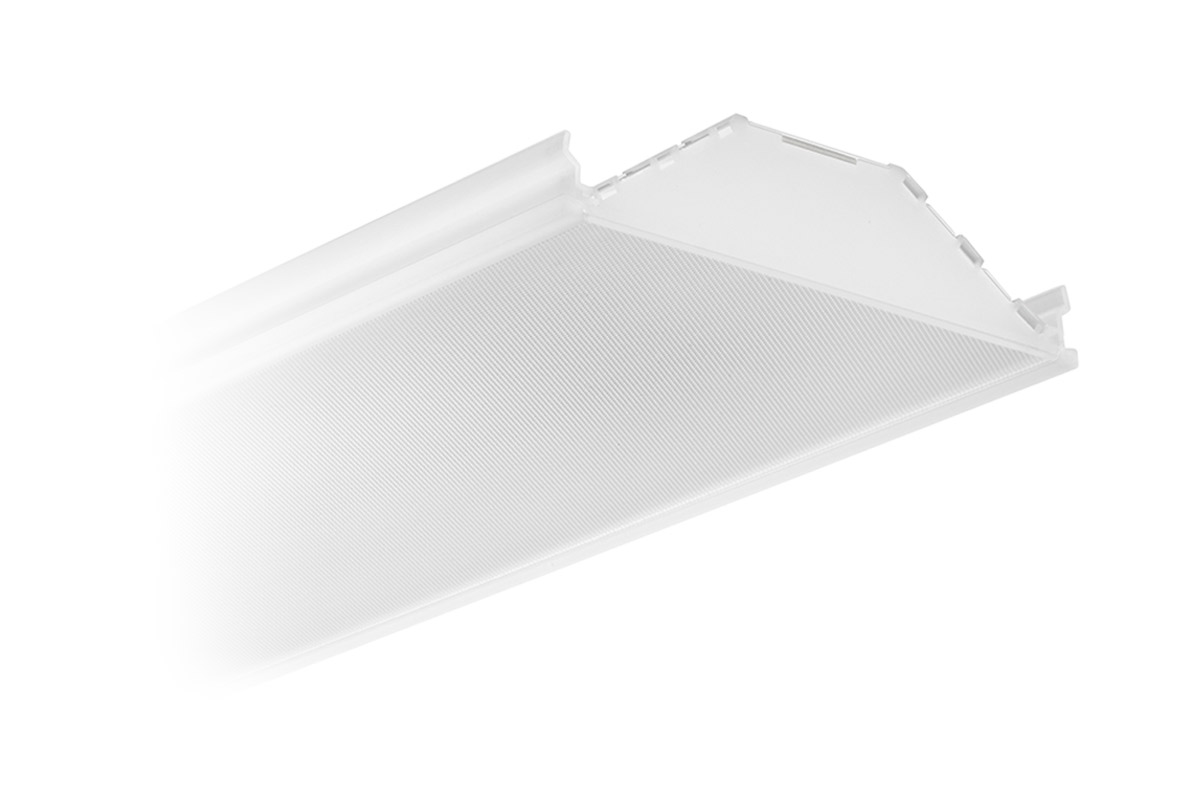

Practical solutions for
schools and offices

Two luminaire types: with symmetric light distribution for standardised general lighting or with asymmetric distribution for uniform panel lighting. And if something gets broken in school use: the luminaire inserts are available as spare parts.

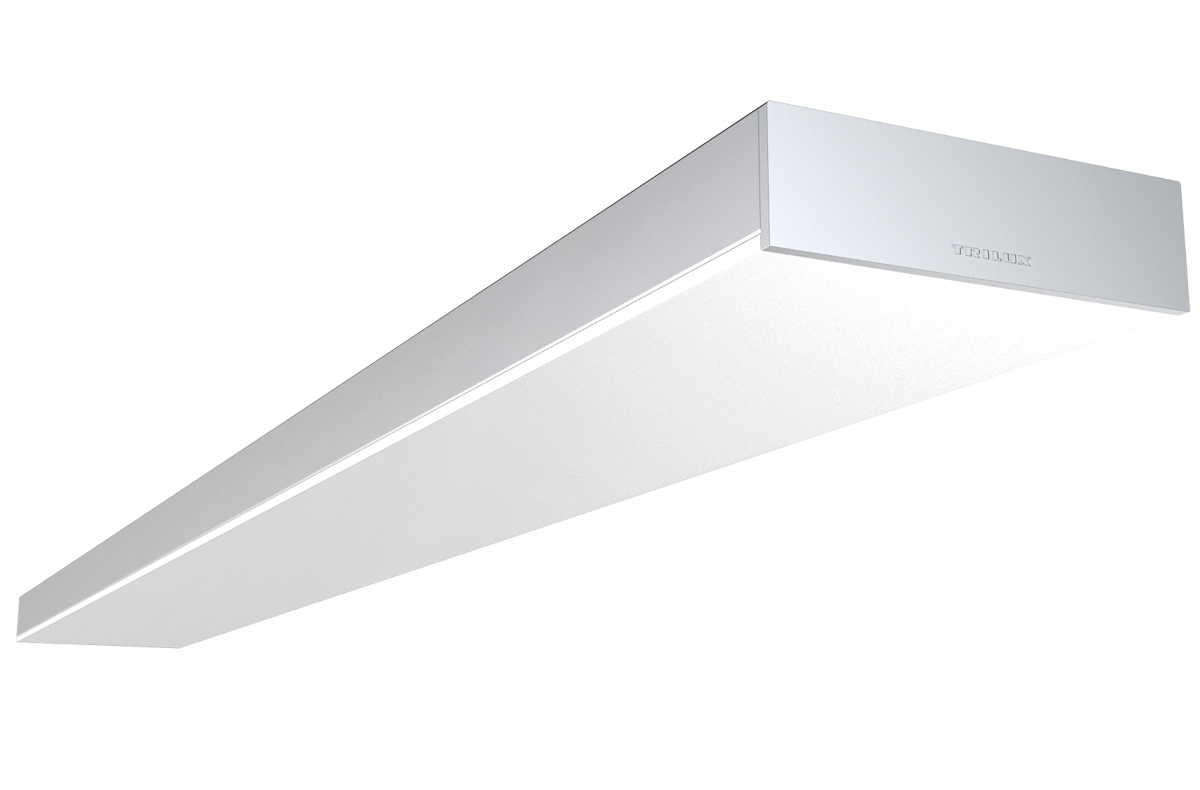

More efficiency and performance

More efficiency, higher lumen packages and flexibility thanks to multilumen technology: the light output of Opendo G2 can be adjusted on the building site, which is ideal for the refurbishing of existing luminaire systems.

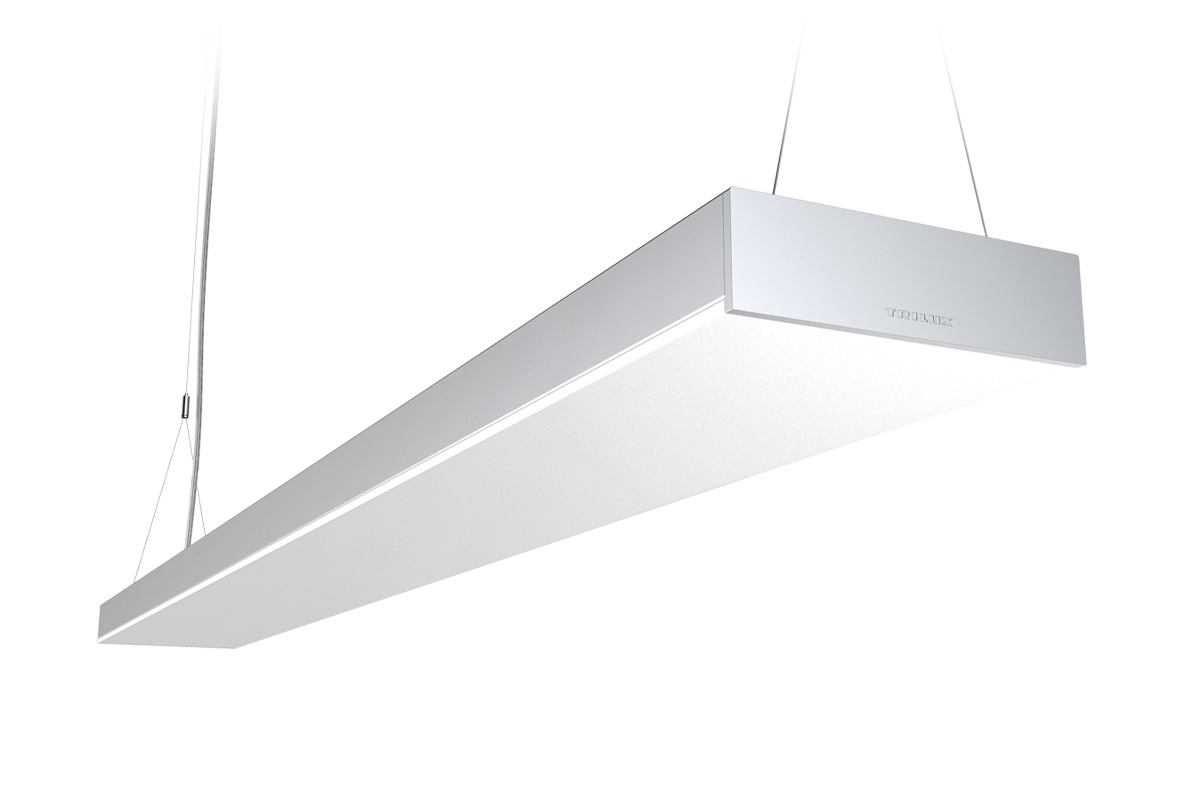

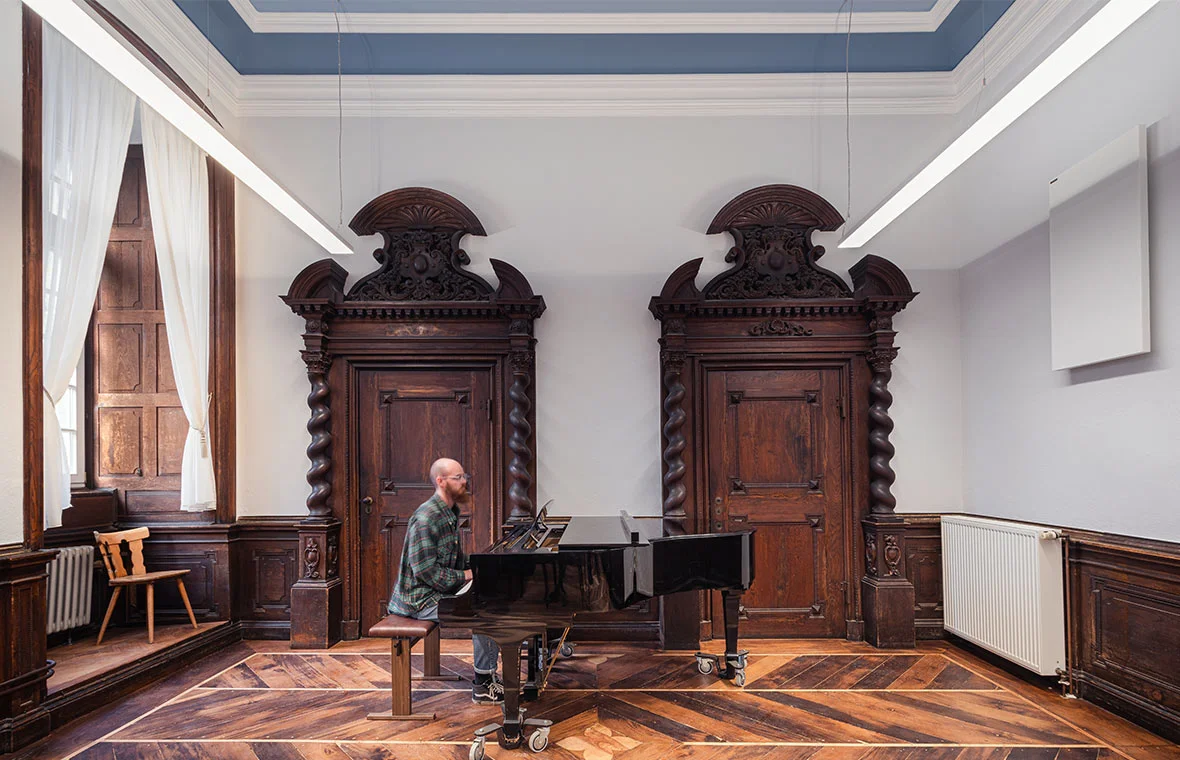

Flexible mounting options

Surface-mounted or suspended as a single luminaire or continuous line, or recessed mounting as a single luminaire.

Design

Opendo G2 brings lighting solutions to schools and offices that are as functional and economical as they are aesthetically pleasing. Quality of light and design both fulfil high demands thanks to a uniform light emission surface across the entire width of the luminaire and the striking lateral light edge. Two practical optics and the wide range of mounting options enable highly holistic designs.

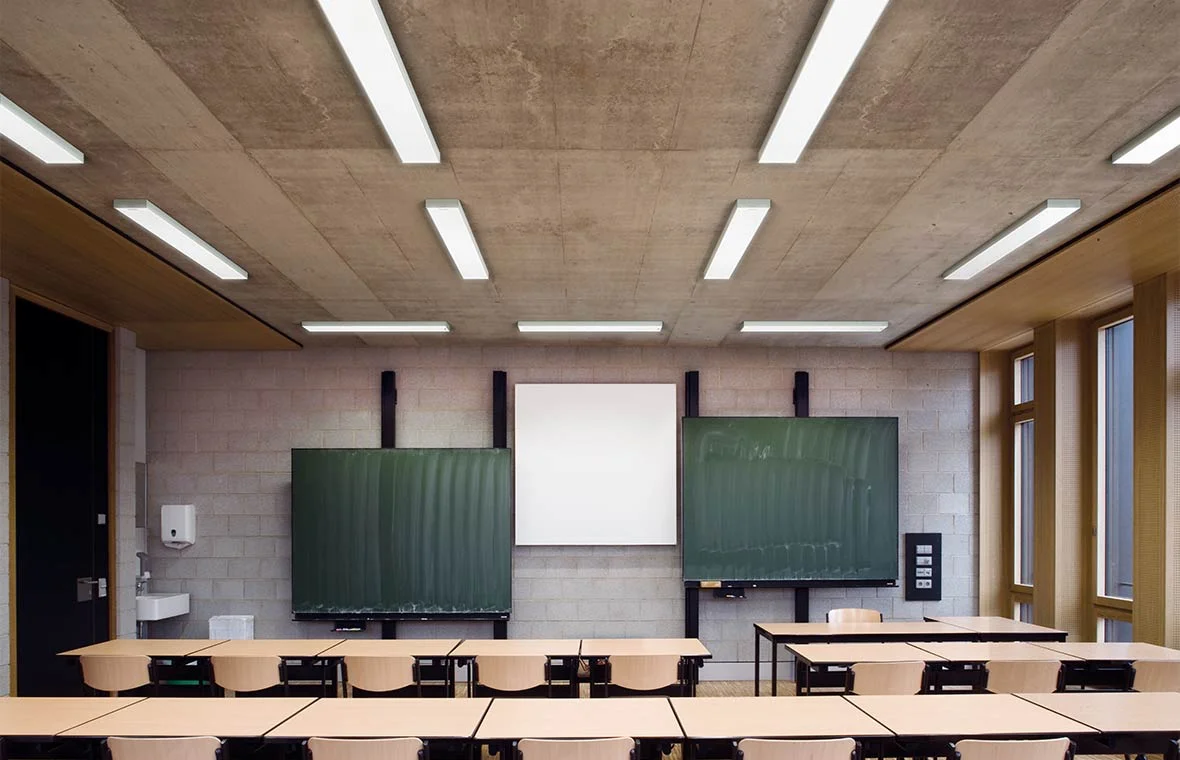

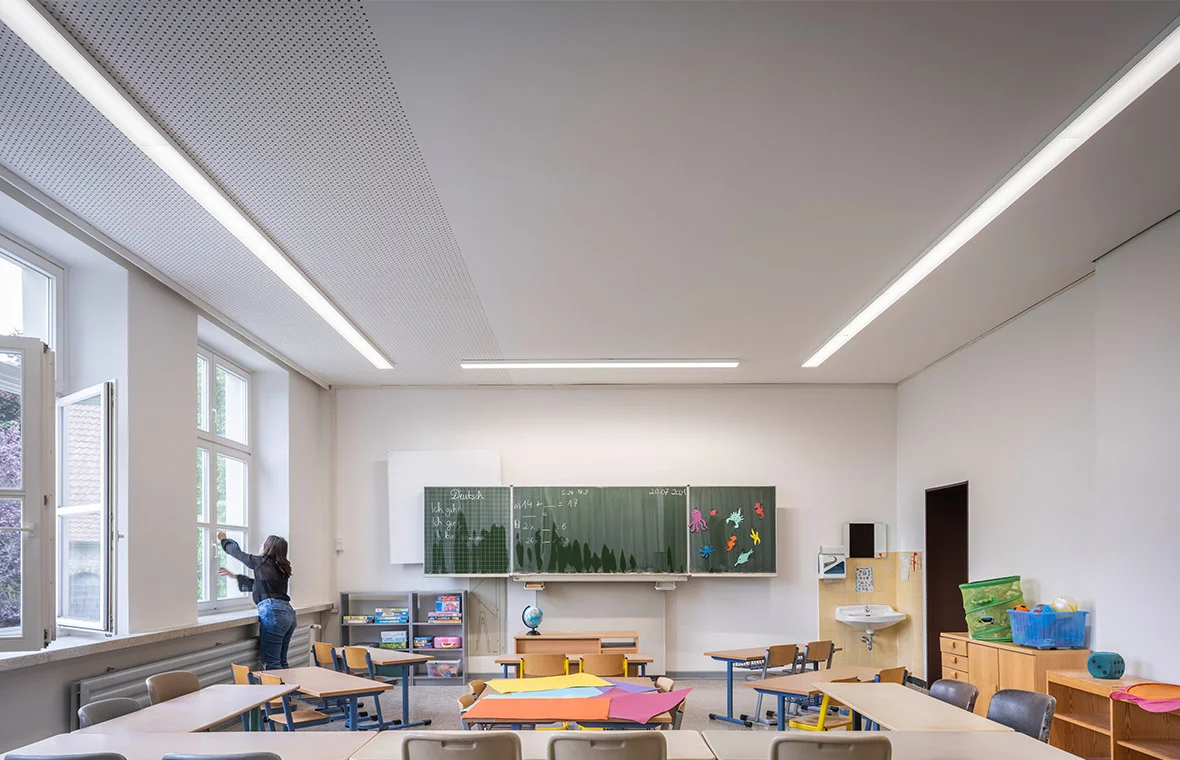

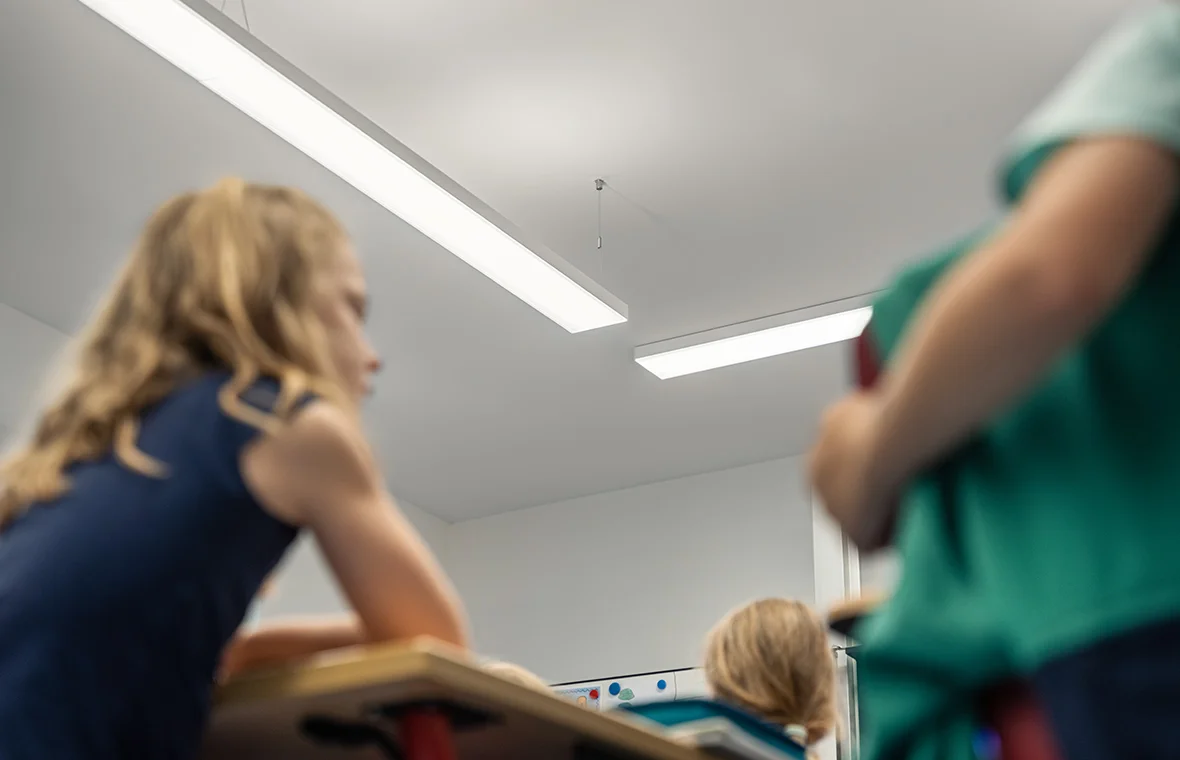

  • Schools and colleges

    The education sector deserves the best lighting technology and quality. The building conditions are, however, often complex. Opendo G2 is perfectly equipped for this with practice-orientated light distributions such as asymmetric panel light: providing future-proof and sustainable school lighting.

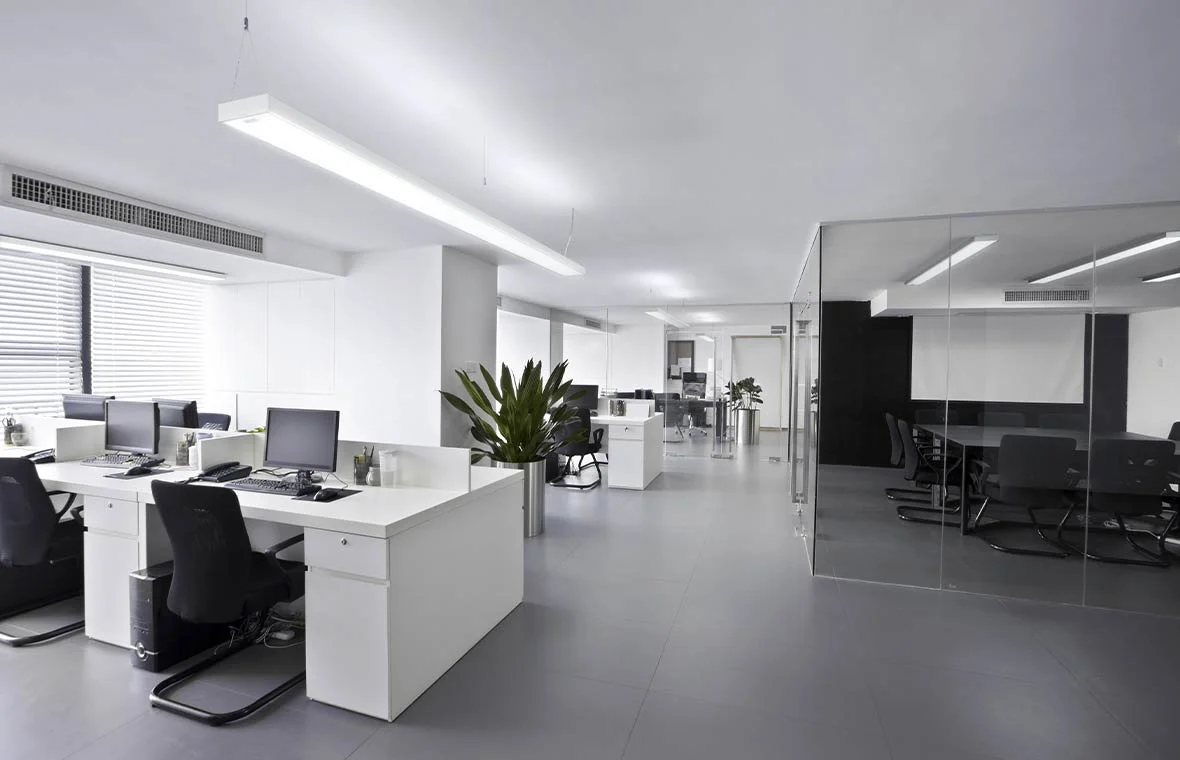

  • Office

    The quality and design of light have a particular influence on the working atmosphere in offices. Opendo G2 scores points in both disciplines – with customised planar light and an unmistakably modern design. Sensors, light management and integrated emergency light? It’s all possible.

Technical Data

Lengths Surface-mounted/Suspended
D1 / H1: 160x1200
D2 / H2: 160x1500
RecessedM36: 185 x 1200
M37: 185 x 1250
M38: 185 x 1500
M39: 185 x 1550
Luminaire luminous flux Surface-mounted/ Recessed luminaire 1200mm: 3600lm
Surfaced-mounted/ Recessed luminaire 1500mm: 4200lm / 4700lm
Suspsended 1200mm: 5300lm
Suspended 1500mm: 6400lm
Efficiency up to 130 lm/W
Service life L80 at 50,000 h
Colour temperature 830 / 840
Protection rating IP20
Housing Sheet steel luminaire body
Approval marks CE, ENEC (pending)
LMS Light management with LiveLink including Wireless
Sensor system CO₂-sensors/daylight and presence sensors
Emergency light Individual emergency light battery 3 h
Changeober relay (recessed luminaire)
