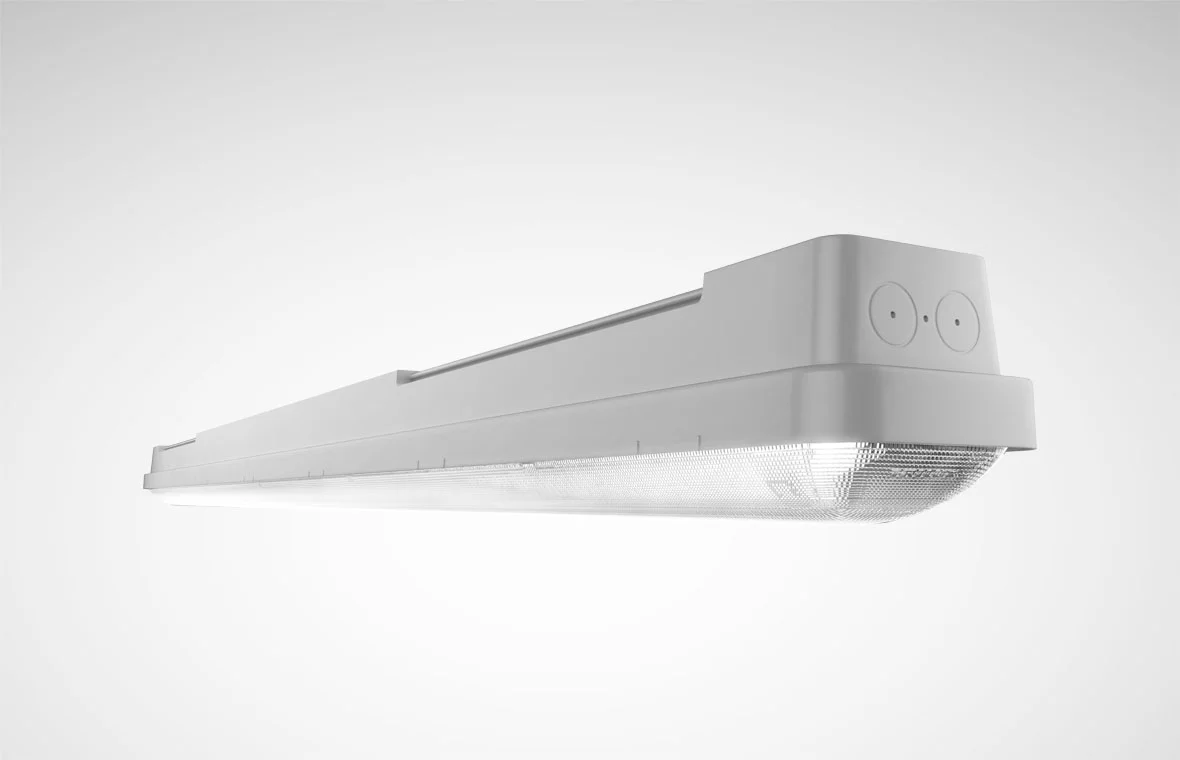

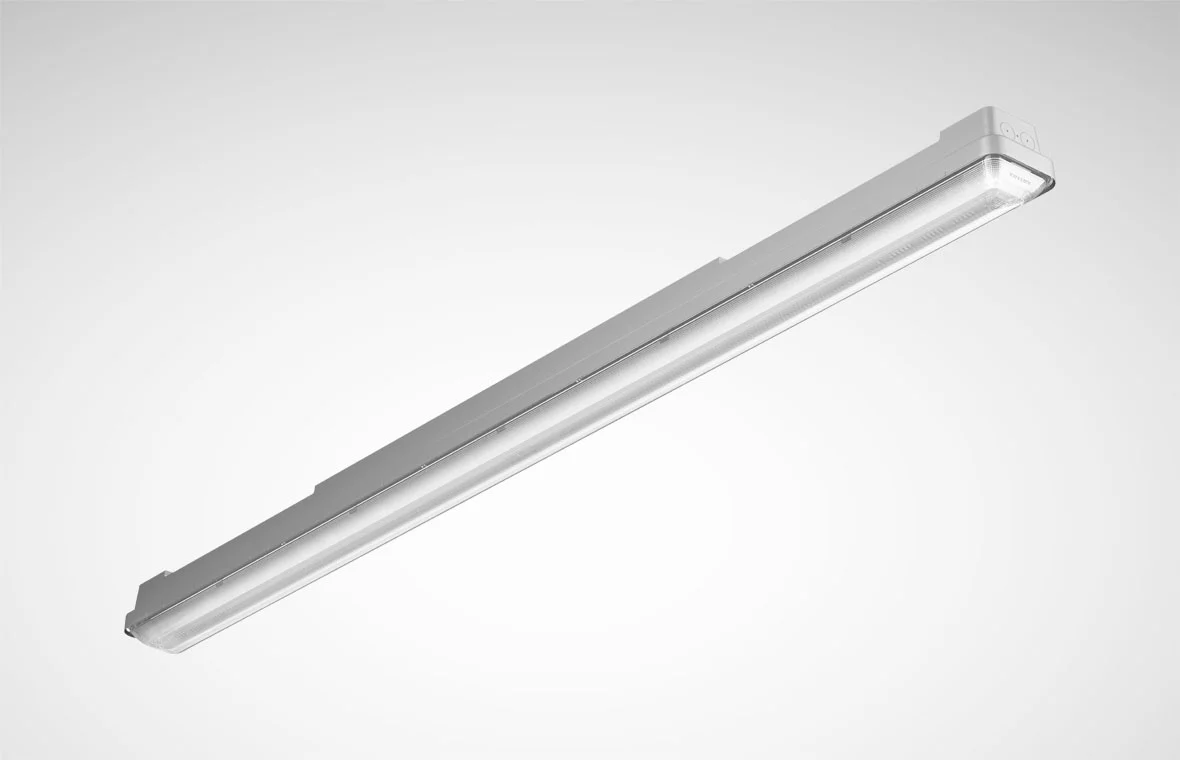

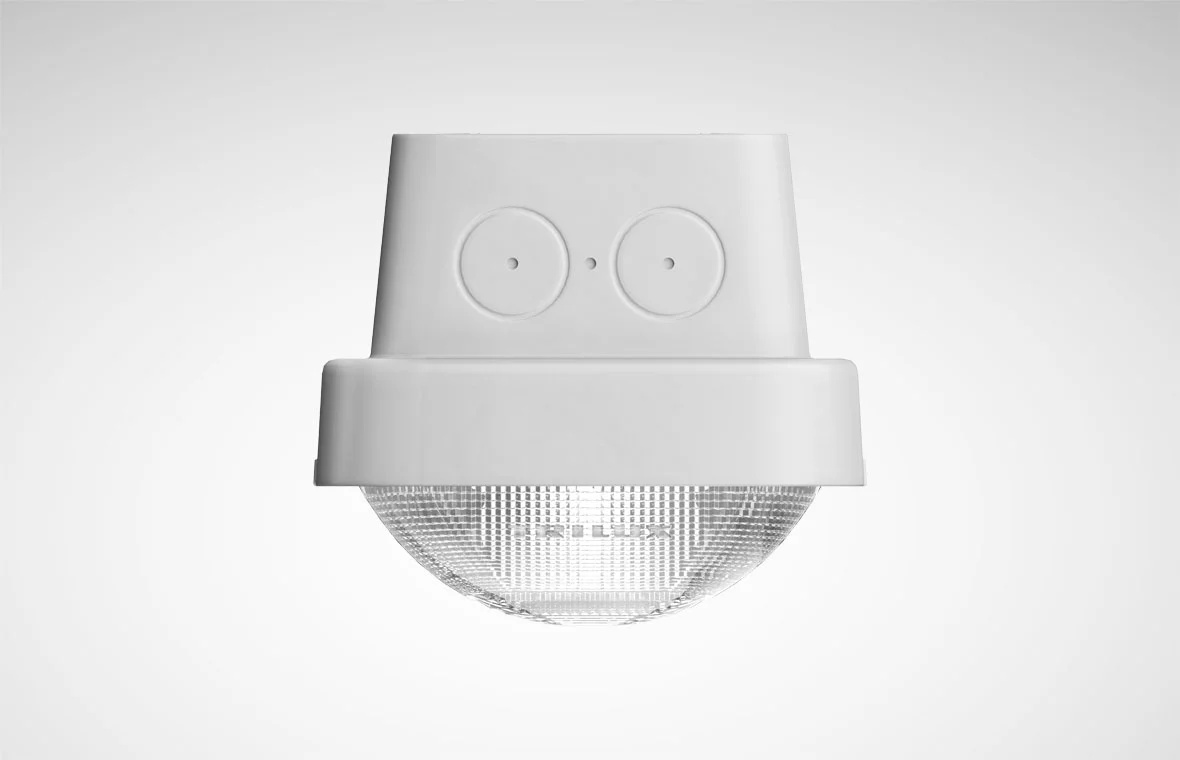

Oleveon Fit
Simply planned. Flexibly refurbished. Fit for the future.

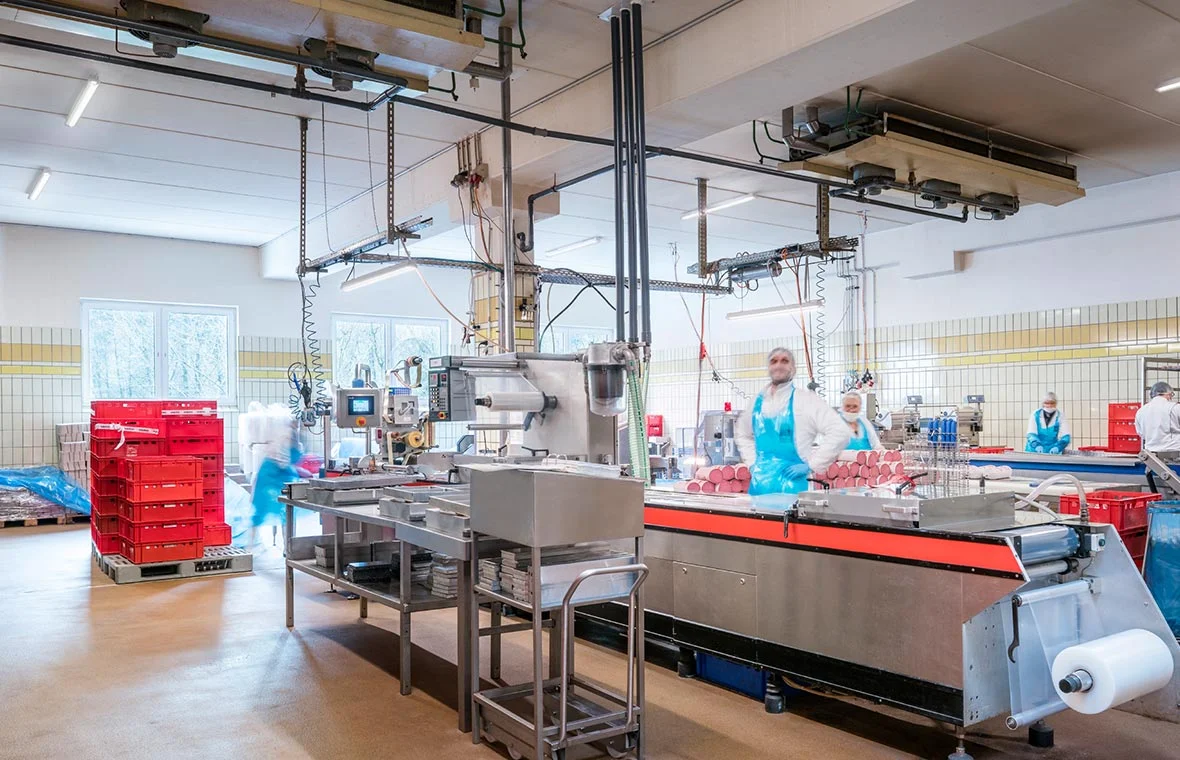

Oleveon Fit raises the lighting quality in damp rooms to a new level.

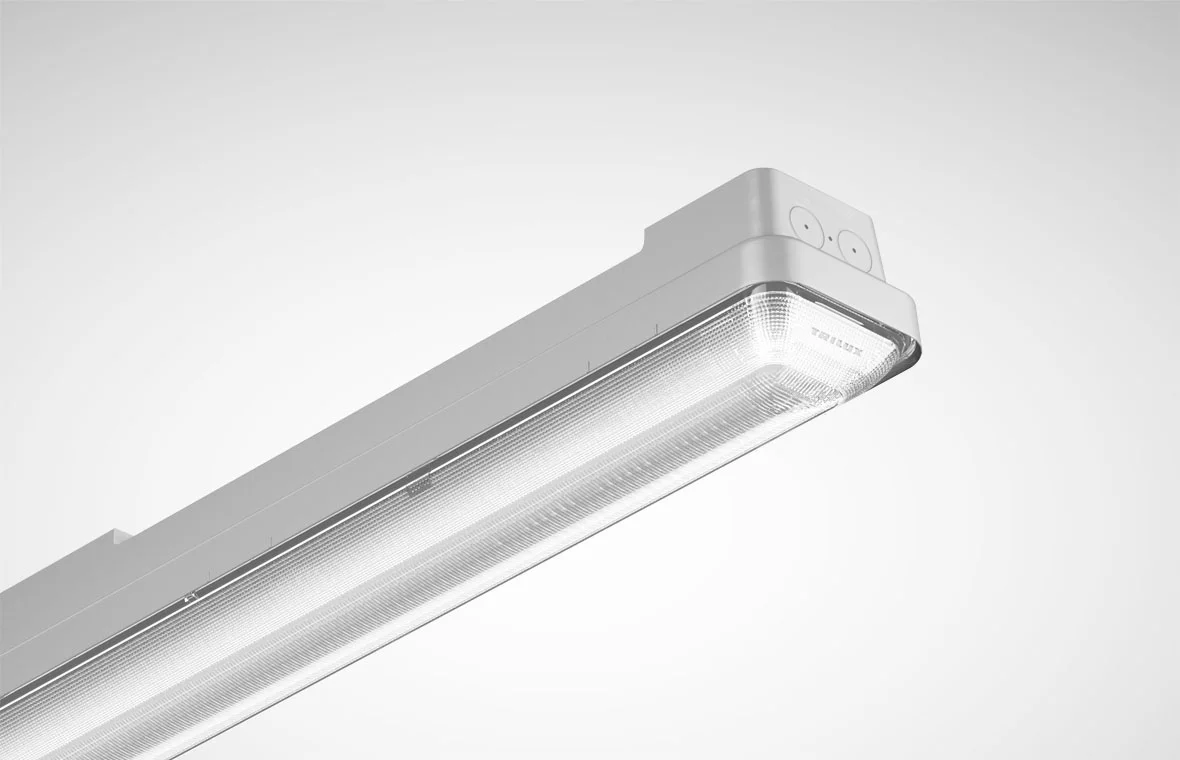

Innovative 3-D prismatic technology provides uniform, glare-free light and state-of-the-art LED technology minimises energy consumption. Upgrading is child's play: Oleveon Fit was designed for quick and simple refurbishments, and thanks to its wide range of versions and integration of light management and sensors can be optimally adapted to the specific framework conditions.
Possibility of refrabrication
Networking by radio

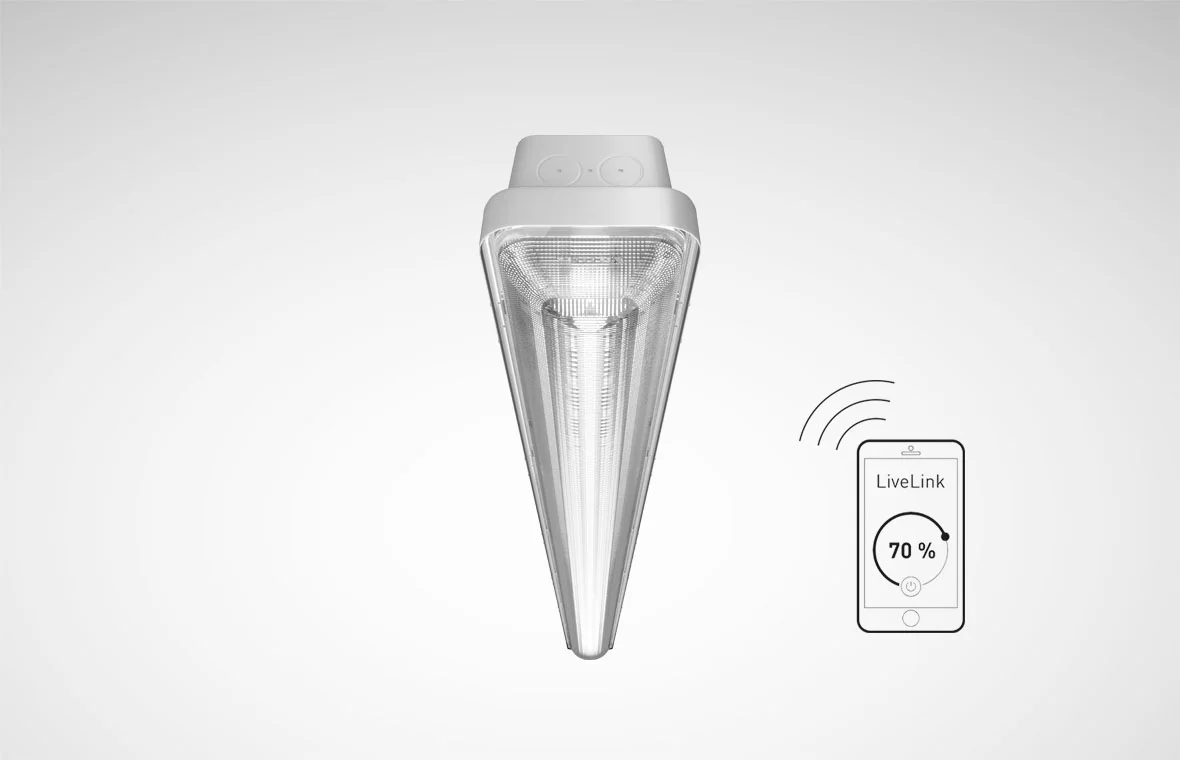

If the DALI control lines are missing, the Oleveon Fit can also be easily networked by radio and controlled via sensors and the LiveLink lighting management system. This enables rapid refurbishment without interfering with the building fabric.
LiveLink SwarmSens not only helps to save energy. By networking the luminaires, the light runs ahead intelligently.
-
Flexibly refurbishedThe perfect refurbishment solution for simple 1:1 replacements.
-
Energy efficiency and light qualityHigh quality light and low operating costs thanks to 3-D prismatic technology and energy efficiency of up to 145 lm/W
-
Variety for all applicationsWide range of variants for customised lighting concepts.
-
MonitoringGreater security and flexibility due to monitoring of the operating data via intelligent LiveLink component.
| Energy efficiency: | up to 159 lm/W |
| Service life: | L80 50,000 h tq 25° C |
| Luminaire luminous flux: | 2.300 lm, 4.000 lm, 6.000 lm, 8.000 lm |
| Size (mm): | 1257 mm / 1552 mm |
| Lengths: | 1,200 mm and 1,500 mm |
| Accessories: | PC/PMMA/PC RCY |
| Housing material: | PC/PC RCY |
| Cover material: | PC/PMMA/PC RCY |
| Colour temperature: | 4,000 K, 6,500 K |
| Emergency light variants: | 3 h |
| Connection system: | Connection terminal (optional Wieland/ Stucchi possible) |
| Beam angle: | wide distribution (B), Lambertian (L) |
| Ambient temperatures: | -20 °C to +35 °C |
| Switching type: | ET, ETDD |
| Protection rating: | IP66 |
| Optional configuration: | Constant Light Output (CLO) technology |
| Intelligence: | integrated sensor solutions with presence detection, daylight-dependent lighting control and intelligent light management system (e.g. LiveLink) |
| LiveLink: | versions for radio use and monitoring use among other applications |
