Solvan Flow LED
the all-round talent for more planning flexibility
Challenge
An increasing number of office buildings, school buildings, care homes and shops are upgrading to LED lighting solutions. The focus here is not only on energy efficiency. Solutions are required that can be flexibly adapted to the conditions on location – and that score points with their high quality of light.
Solution
The Solvan Flow modular system is the all-round talent for high-quality, energy-efficient light in the education, care, office and retail sectors. As a single luminaire, Solvan Flow sets effective accents and offers flexibility in lighting design with three methods of installation (recessed, surface-mounted and suspended). For larger lighting tasks, Solvan Flow simply becomes a seamless continuous line. A wide selection of optics – such as the standard-compliant LED micro-reflector optic for VDU workstations or the CDP-I optic for high quality planar light – ensure optimum visual conditions everywhere.
Connectivity
HCL
Saving energy

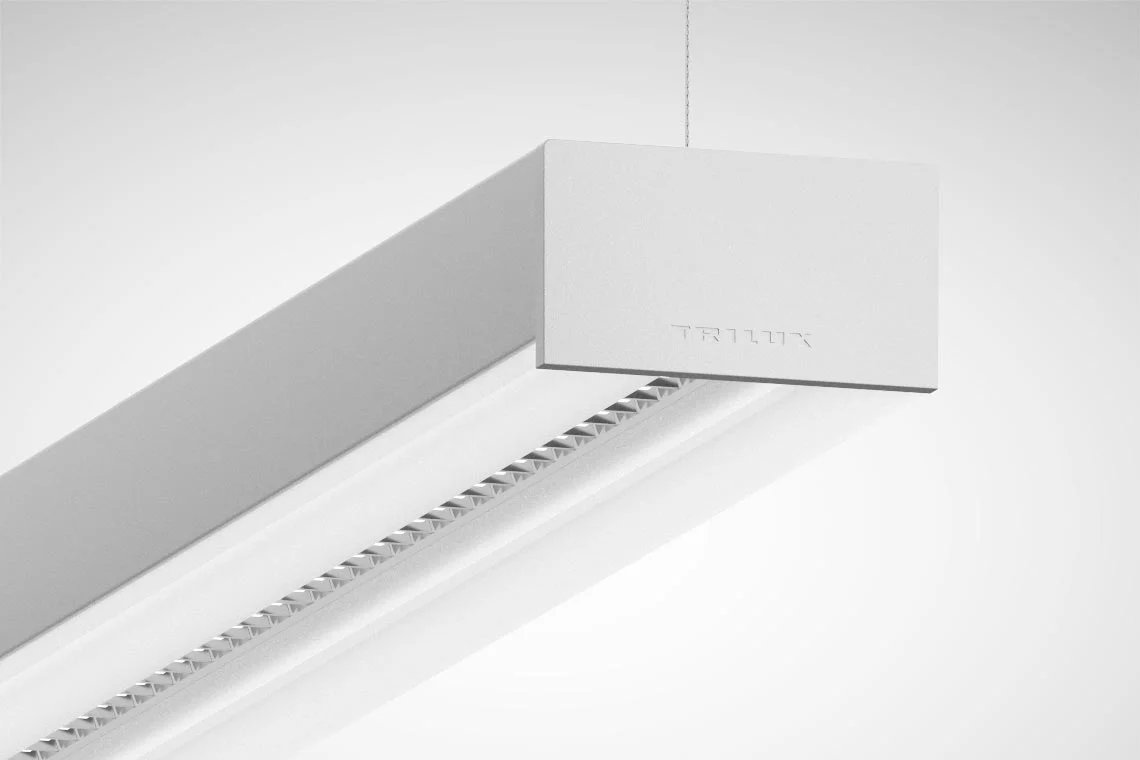

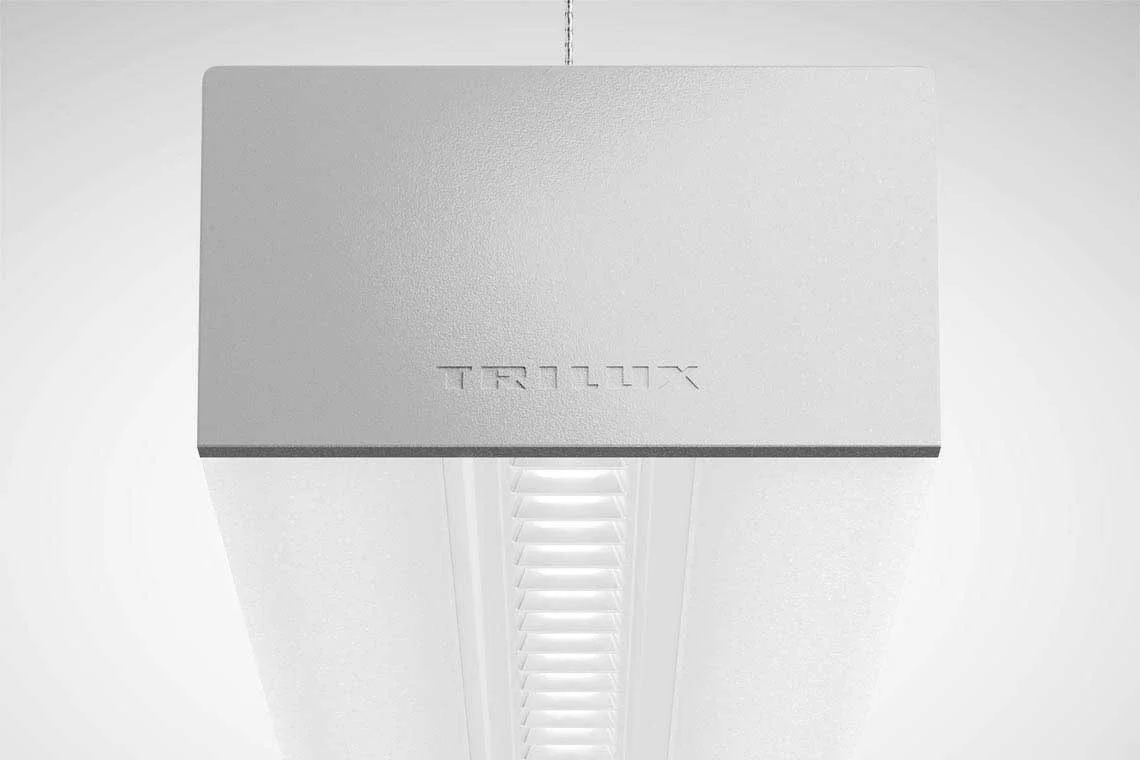

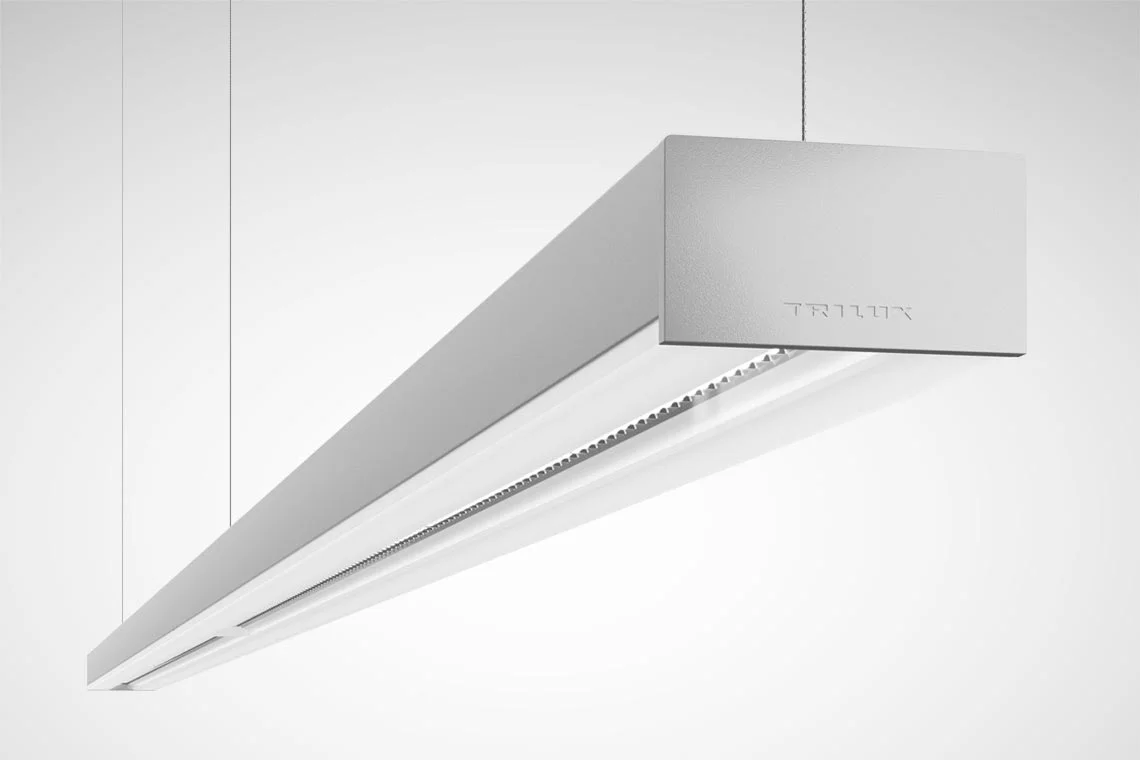

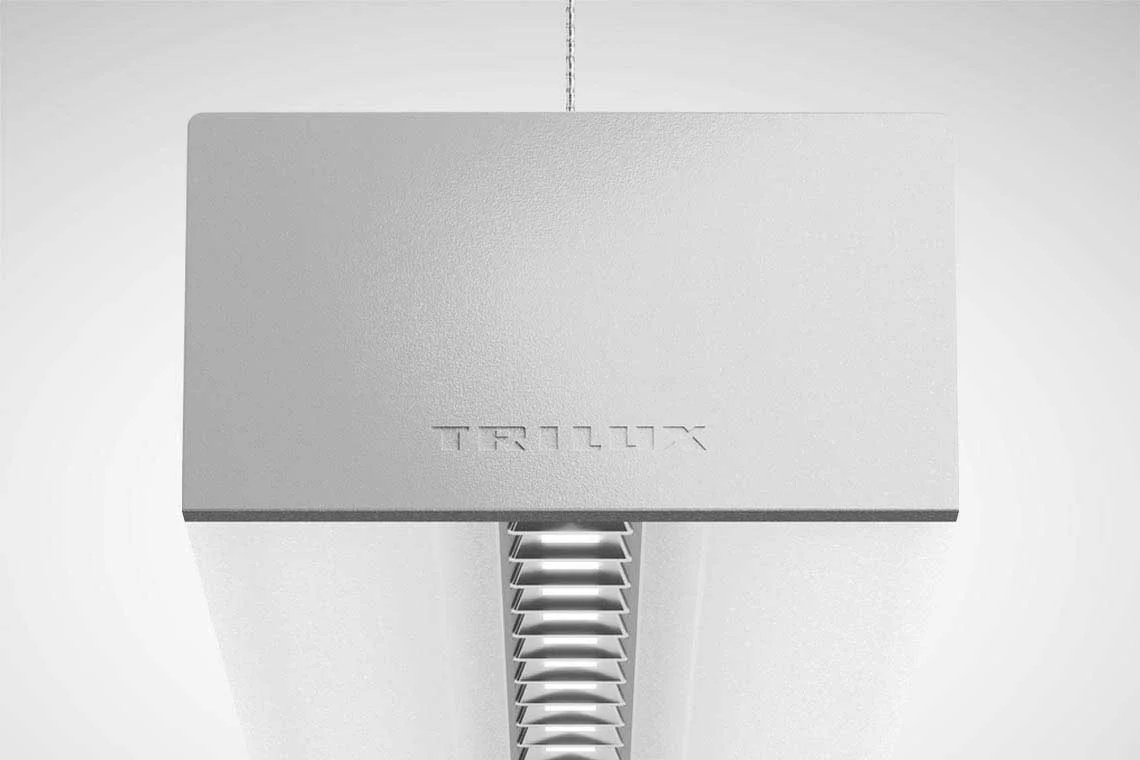

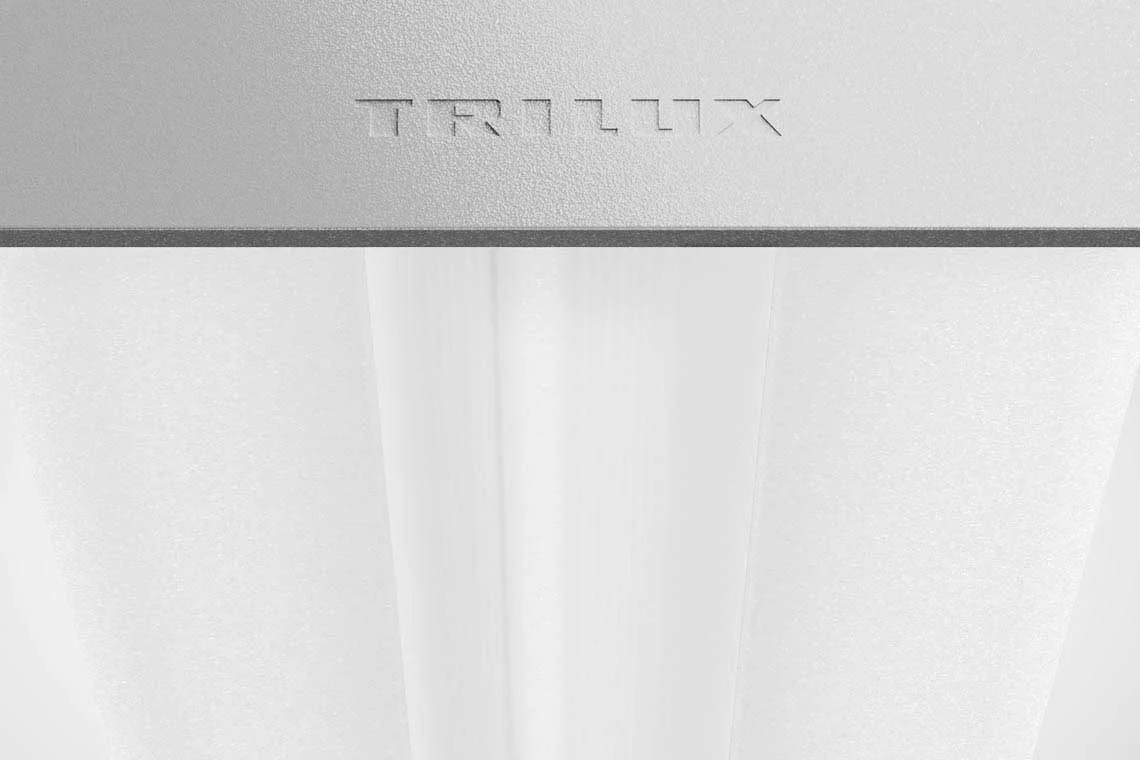

Product and application images
Maximum flexibility

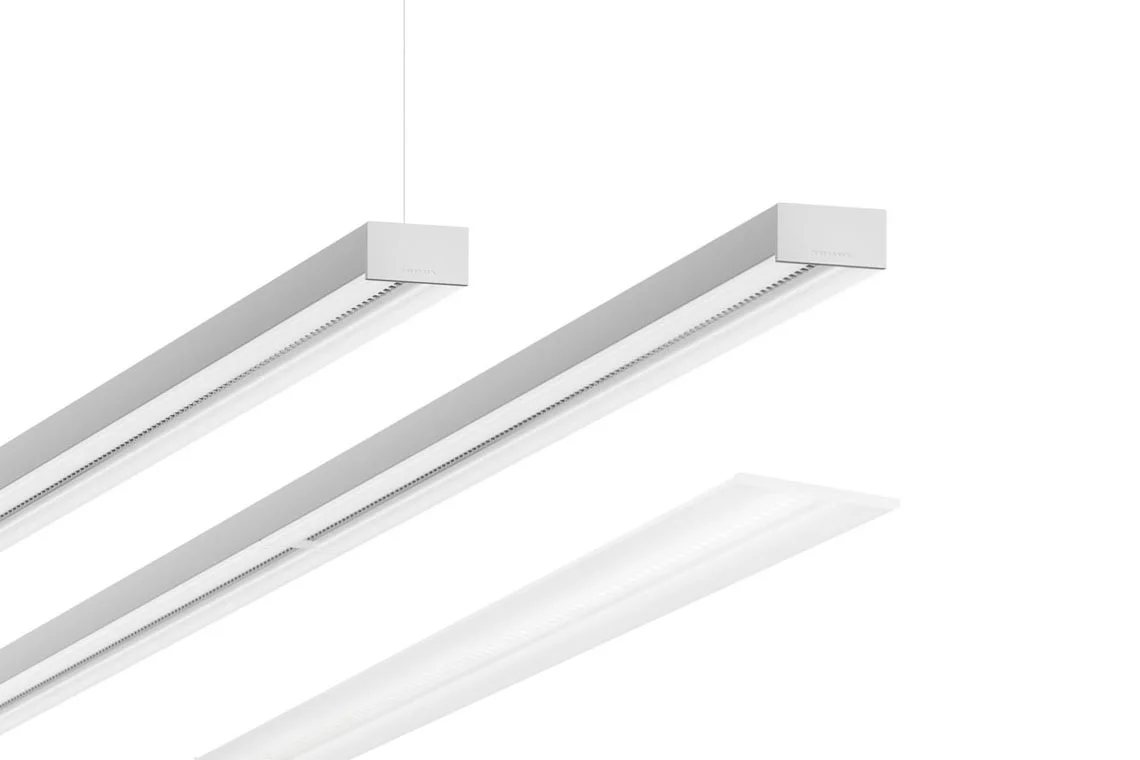

Everything is possible, from single luminaires as recessed, surface-mounted and suspended versions to continuous lines with integrated emergency light function.
Wide choice of light distribution characteristics
Solvan Flow is optionally available with a directionally symmetric, directionally asymmetric, diffuse or planar optic.
Tailor-made luminous flux packages
Right for any application: A wide selection of luminous flux packages from 3,000 lm to 6,400 lm enables targeted, efficient illumination of rooms.
Intelligent light
Fit for the future: Solvan Flow can be quickly and simply integrated into the LiveLink light management system, e.g. for presence detection and daylight-dependent control.
Simple mounting
Even complex configurations can be installed quickly, easily and largely without tools thanks to the modular construction principle.
High energy efficiency
Thanks to energy efficiency of up to 143 lm/W, the Solvan Flow system contributes to sustainably low operating costs and short payback periods.
Technical features
| Reference | Value |
|---|---|
| Luminaire luminous flux: | 3,000 to 6,400 lm |
| Connected load/efficiency: | Up to 143 lm/W |
| Service life: | 50,000 h L80 at 25°C |
| Colour rendering/ - temperature: | 830, 840, Active |
| Electrical version: | ET, ETDD, LLWM, LLWS, LLWC, LLWRM, LLWRR EB3, UR |
| Dimensions (L x W x H): |
1,132/1,410 x 84/100 x 45 mm, Continuous line-capable |
| Protection rating/safety class: | IP20 |
| Glare: | UGR19/VDU for standard-compliant illumination of VDU workstations |
| Light distribution: | CDP-I, MRX, MRW, MRWD, MLA |
