Rail

Invisible Connection. Visible Impact.

The Challenge

  • Designing hybrid working environments – attractive and adaptive
  • Upgrade the classic 230V track technologically and aesthetically
  • Setting accents in office landscapes with emotional, cosy lighting

The solution

  • The Rail as an extremely flexible basis for lighting, smart connectivity thanks to included DALI
  • The facelift for the 230V track: high-quality surface with fine structure, versatile mounting options and flush Invisible Adapters
  • Matching the Rail: spotlights, flush-mounted linear inserts, pendant luminaires and many other TRILUX luminaires

Flexible elegance for the office

With its optimised design, the track conquers the office: the TRILUX Rail bundles flexible power supply and control lines for luminaires in a slim aluminium profile. Flush Invisible Adapters and inserts as well as the high-quality fine surface structure emphasise the elegant effect in the space.

Flexible elegance for the office

With its optimised design, the track conquers the office: the TRILUX Rail bundles flexible power supply and control lines for luminaires in a slim aluminium profile. Flush Invisible Adapters and inserts as well as the high-quality fine surface structure emphasise the elegant effect in the space.

Smart and powerful

As a 230V track, Rail does not require a separate converter, enables long distances without voltage losses and always has enough power reserve for the higher luminous fluxes in office applications. The profile contains 6 conductors for 3 separately switched luminaire groups and DALI control lines for light management, for example with LiveLink Office. Alternatively: wireless control with Casambi.

Smart and powerful

As a 230V track, Rail does not require a separate converter, enables long distances without voltage losses and always has enough power reserve for the higher luminous fluxes in office applications. The profile contains 6 conductors for 3 separately switched luminaire groups and DALI control lines for light management, for example with LiveLink Office. Alternatively: wireless control with Casambi.

In line with the spatial concept and architecture

The Rail is extremely versatile and easy to plan: it can be mounted on ceilings or walls, installed in suspended ceilings or plastered in. If suspended, it can also illuminate indirectly.

In line with the spatial concept and architecture

The Rail is extremely versatile and easy to plan: it can be mounted on ceilings or walls, installed in suspended ceilings or plastered in. If suspended, it can also illuminate indirectly.

High-quality surfaces

Powder-coated with fine structure in black or white, other colours on request

Flush-mounted linear inserts

Inserts with opal cover, lens or wallwasher optic are flush with the track.

Design

With flush-mounted inserts and Invisible Adapters, the Rail as a 230V track is as elegant and minimalist as only low voltage track systems can be. High-quality design down to the last detail: the profile with powder-coated, finely textured surface, the matching TRILUX luminaires and the design-coordinated accessories.

Rail is available in individual colours or bending radii on request – for complete design flexibility.

Technical data

  Rail Linell (flush-mounted linear inserts)
Mounting methods Recessed, plastered, surface-mounted, suspended 3-circuit track
Lengths 1000 mm, 2000 mm, 3000 mm, 4000 mm 500 mm, 1000 mm, 1500 mm
Colours white (RAL 9016), black (RAL 9005), other colours on request white (RAL 9016), black (RAL 9005), other colours on request
Electrical version ETDD ETDD
Optics - Opal, lens, wallwasher
Glare reduction - Opal: UGR< 25, lens: UGR <19
Energy efficiency - up to 120 lm/W
Lumen packages - Opal: 1000 lm, 2000 lm, 3000 lm
Lens: 1200 lm, 2500 lm, 3700 lm
Wallwasher: 600 lm, 1200 lm, 2500 lm
Service life - L90 50.000 h
Colour rendering - CRI 80, CRI 90
Colour temperatures - 2700 K, 3000 K, 4000 K

Compatible product portfolio

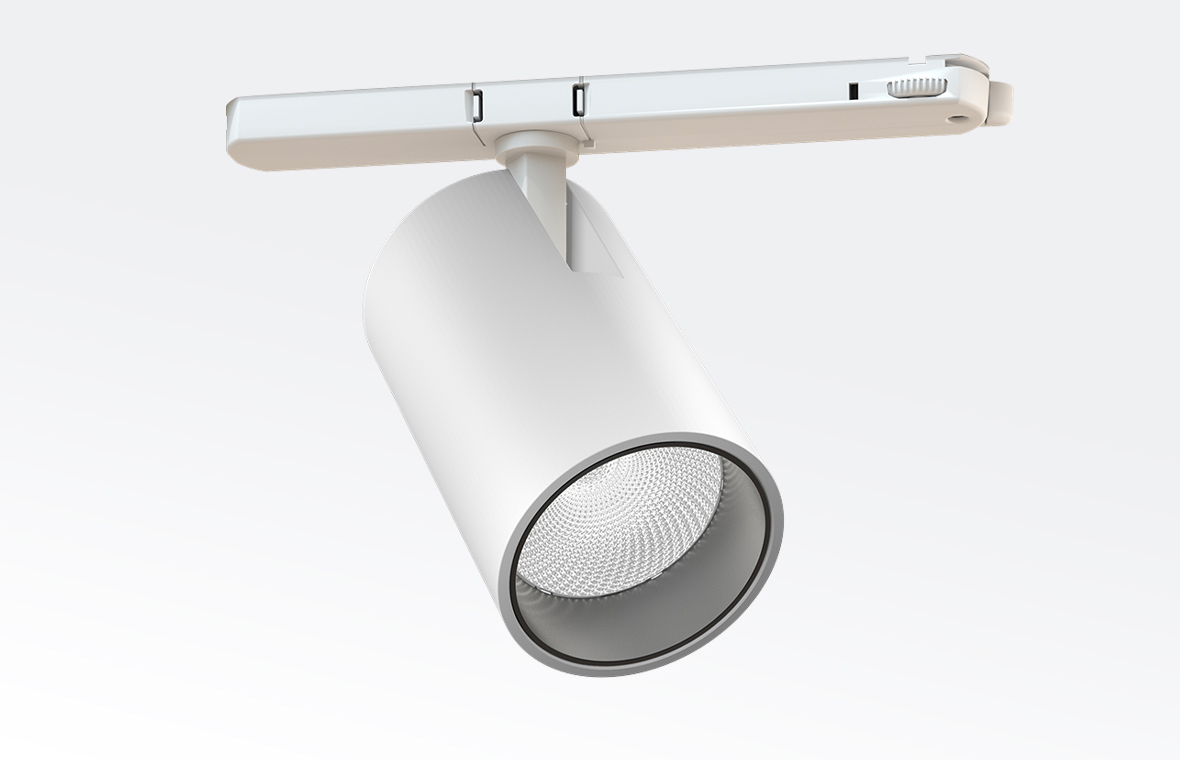

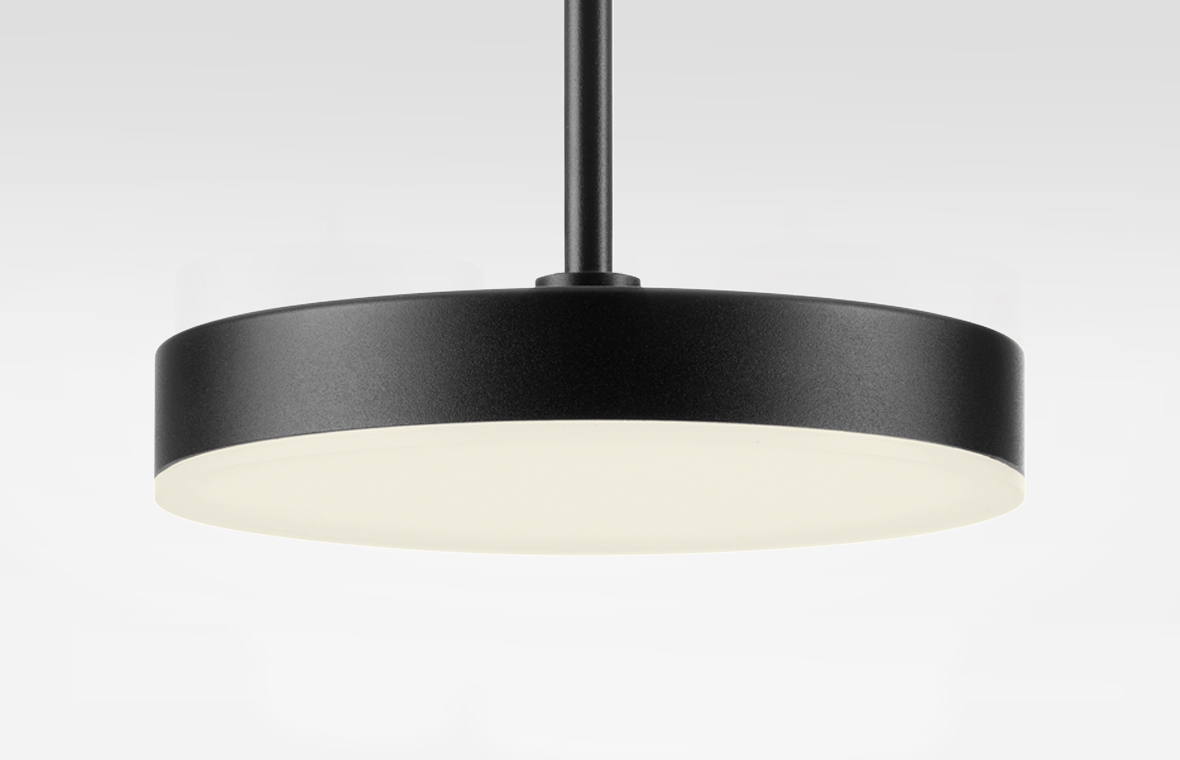

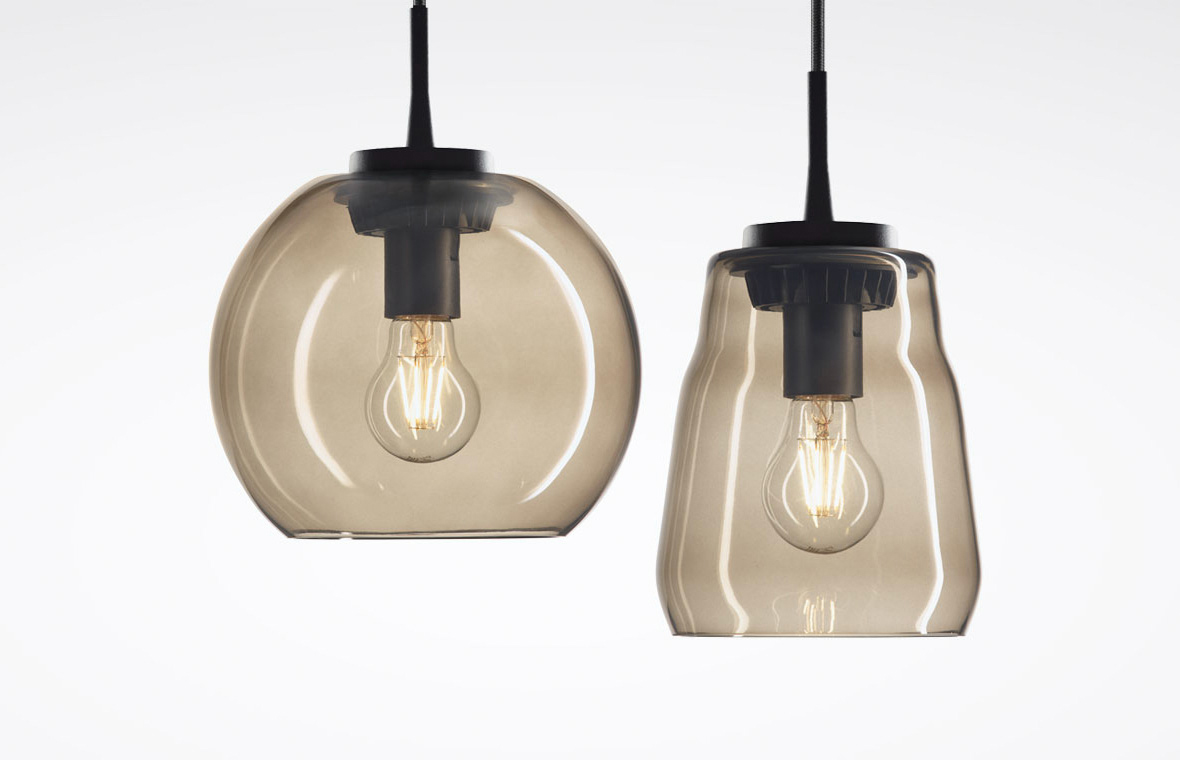

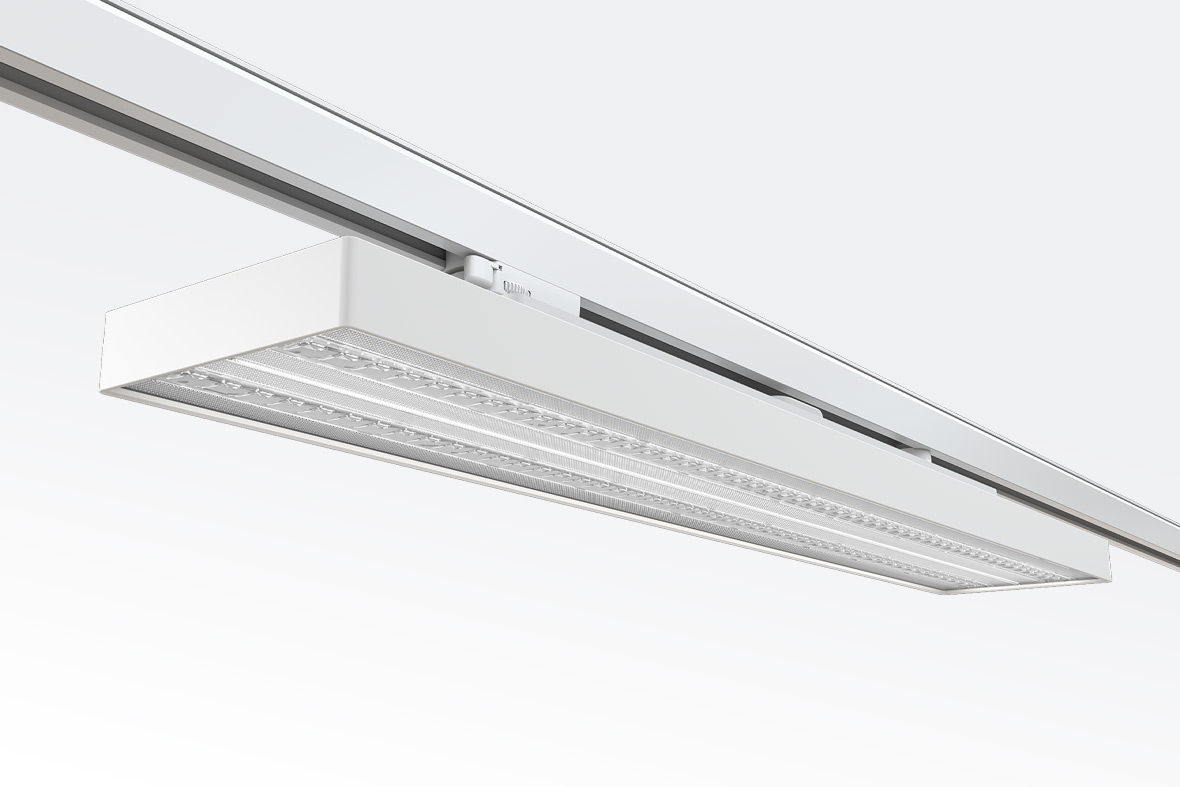

Spotlights, suspended luminaires and inserts with invisible adapter from the following ranges are available for Rail.
