Creavo LED
the future-oriented light
The challenge
Planar luminaires have established themselves as a universal standard in offices. However, they feature hardly any visual distinguishing characteristics and often do not achieve the highest possible efficiency. Differentiation is achieved by directional systems though, but these are often not convincing because of their perceived high glare levels and annoying multiple shadows.
The solution
You've never seen directional light like this before: the innovative two-part optic with ConVision® technology ensures the highest perceptible quality of light and efficiency. Thanks to its high quality, attractive design and its wide range of sizes and mounting methods, Creavo is the all-purpose solution for directional lighting in offices and education. Light management and digital services can also be implemented via an IoT harbour. This makes Creavo fit for the future today.
1) can be combined with the LiveLink light management system 2) can be combined with sensors 3) location-based services for indoor navigation, asset tracking, proximity marketing and data visualisation
the Active versions enable the light colour to be individually adapted via a light management system from 2,700 K to 6,500 K
(1) high energy efficiency of up to 150 lm/W (2) long service life of L90 50,000 h

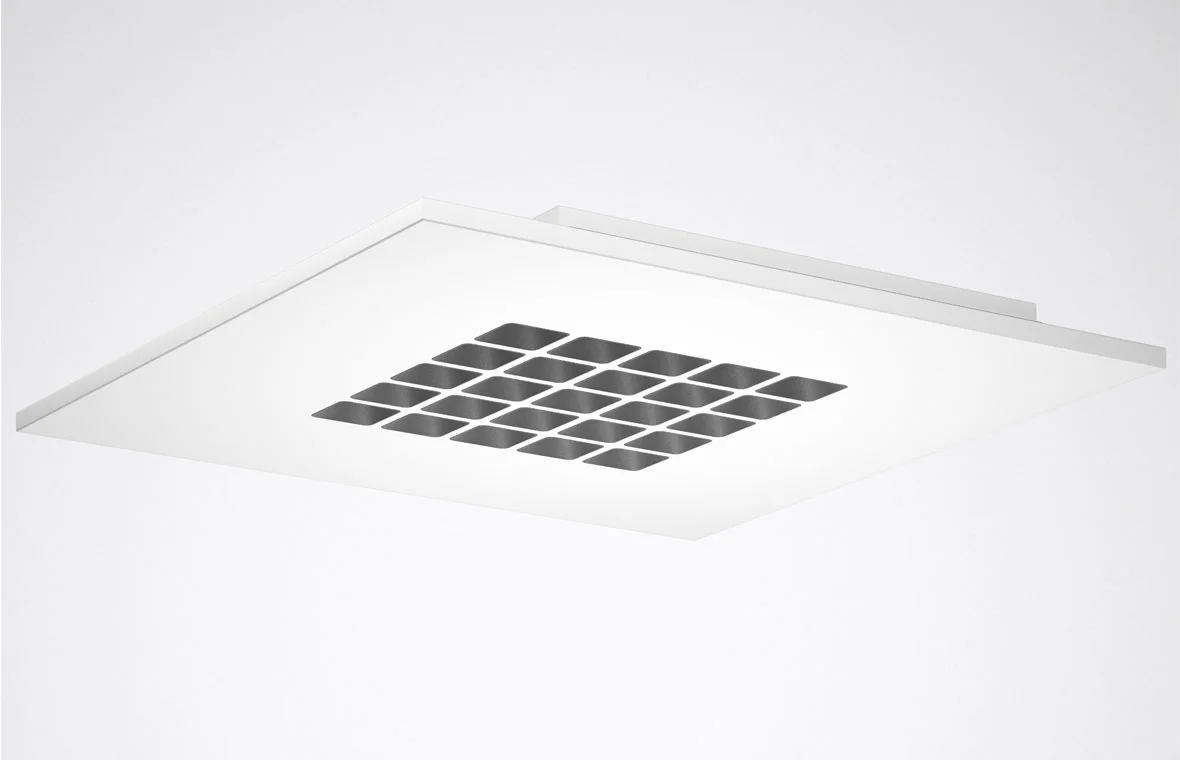

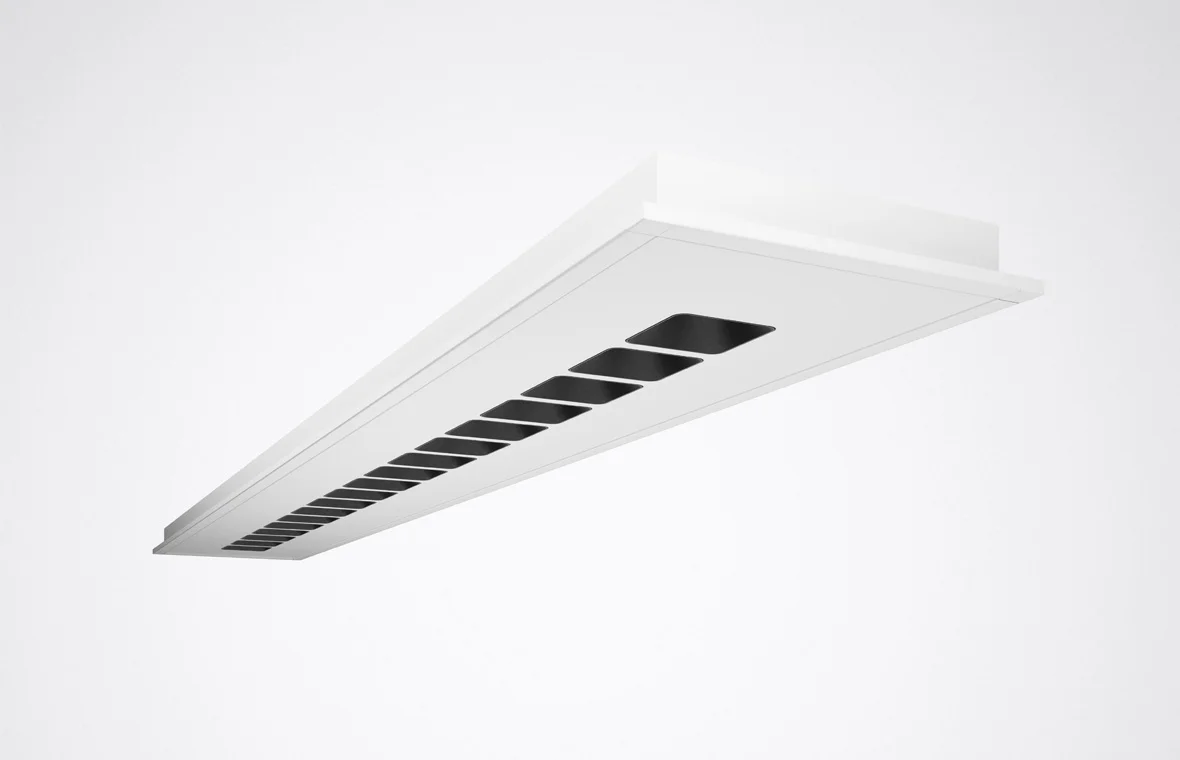

One product family with many variants

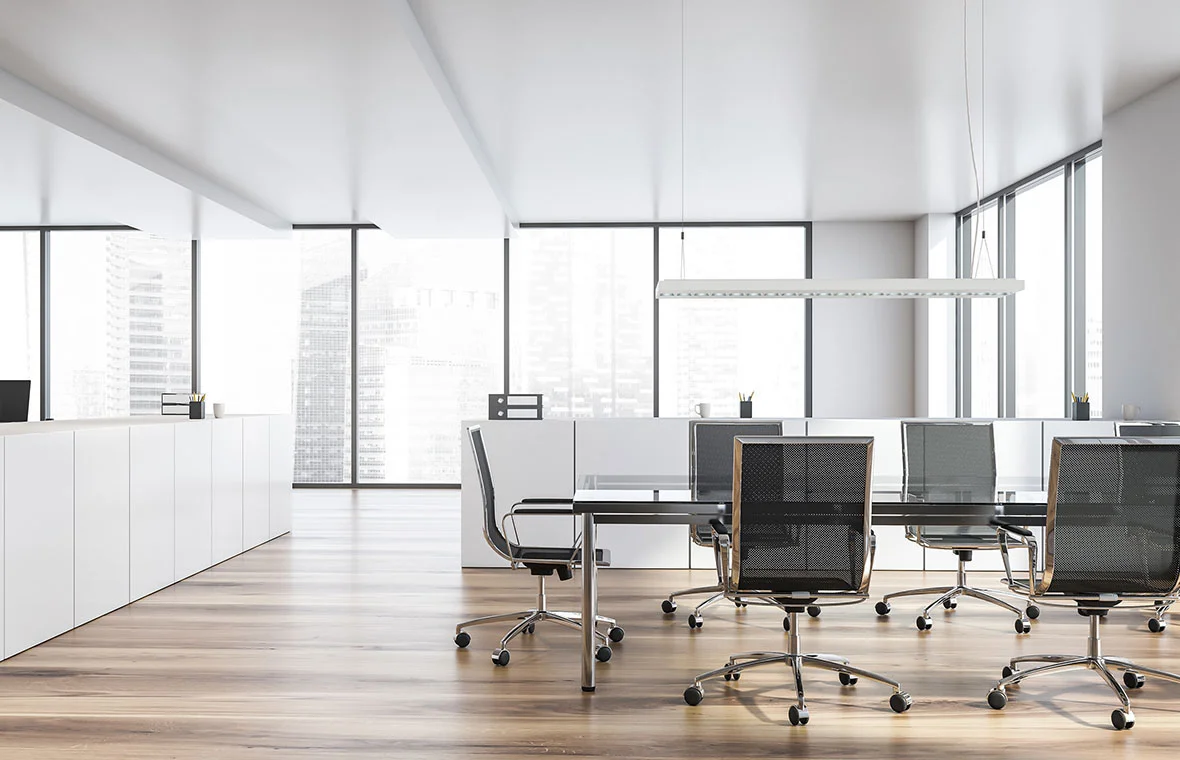

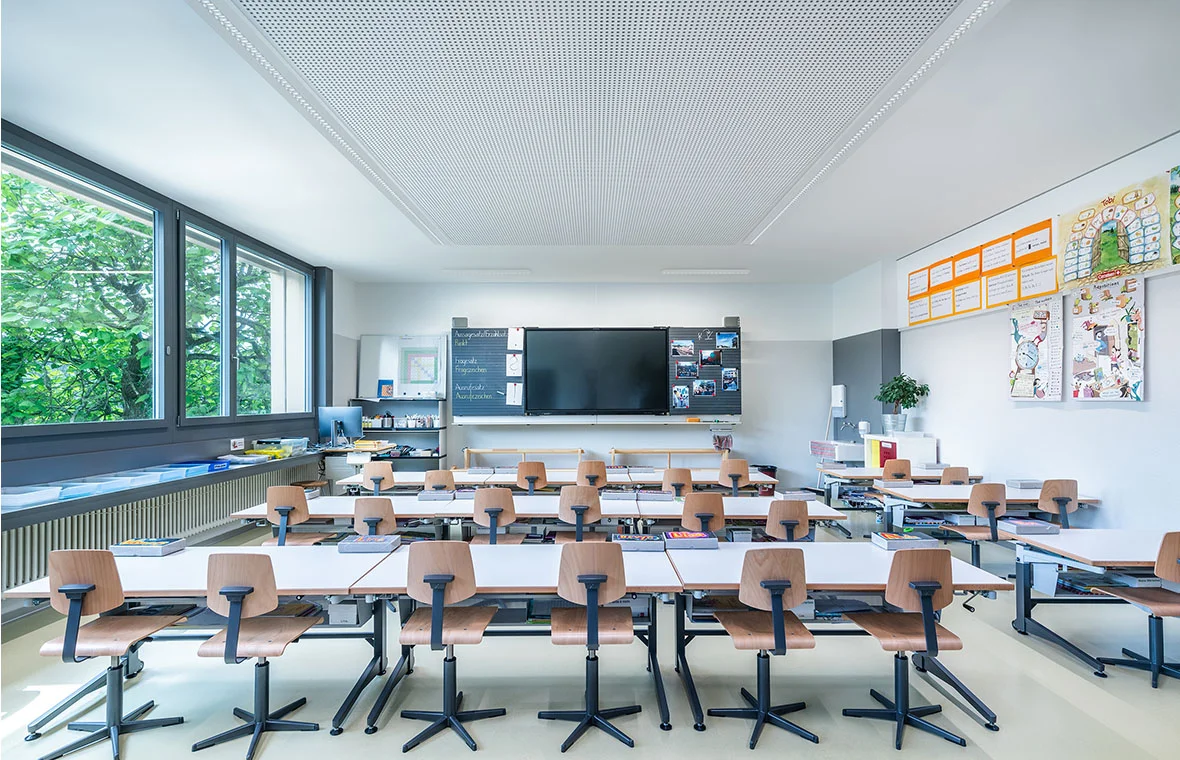

Anything goes: thanks to a broad portfolio of sizes, optics and mounting methods, all lighting tasks in offices and education can be solved with one luminaire range – e.g. with a wall-washer for panel lighting in the same luminaire design.
Special light comfort

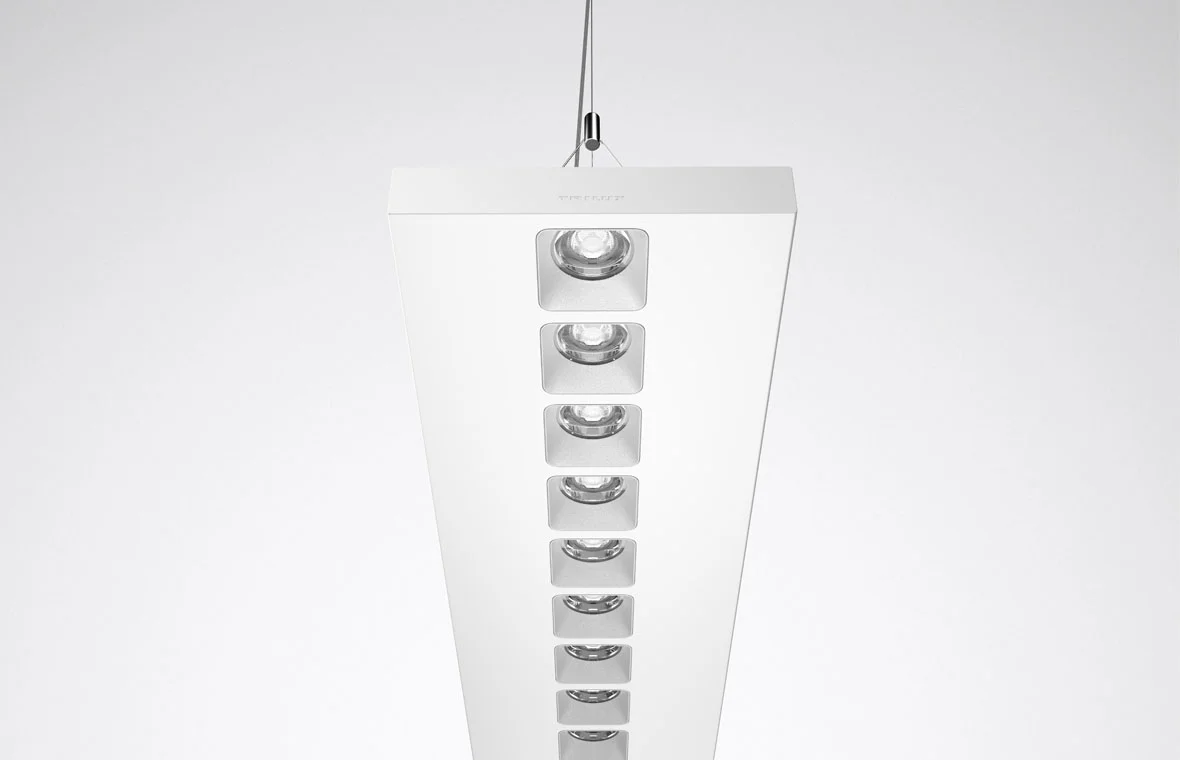

The directional light system with ConVision® technology features outstanding quality of light – with noticeably reduced glare and fewer disturbing multiple shadows.
Design

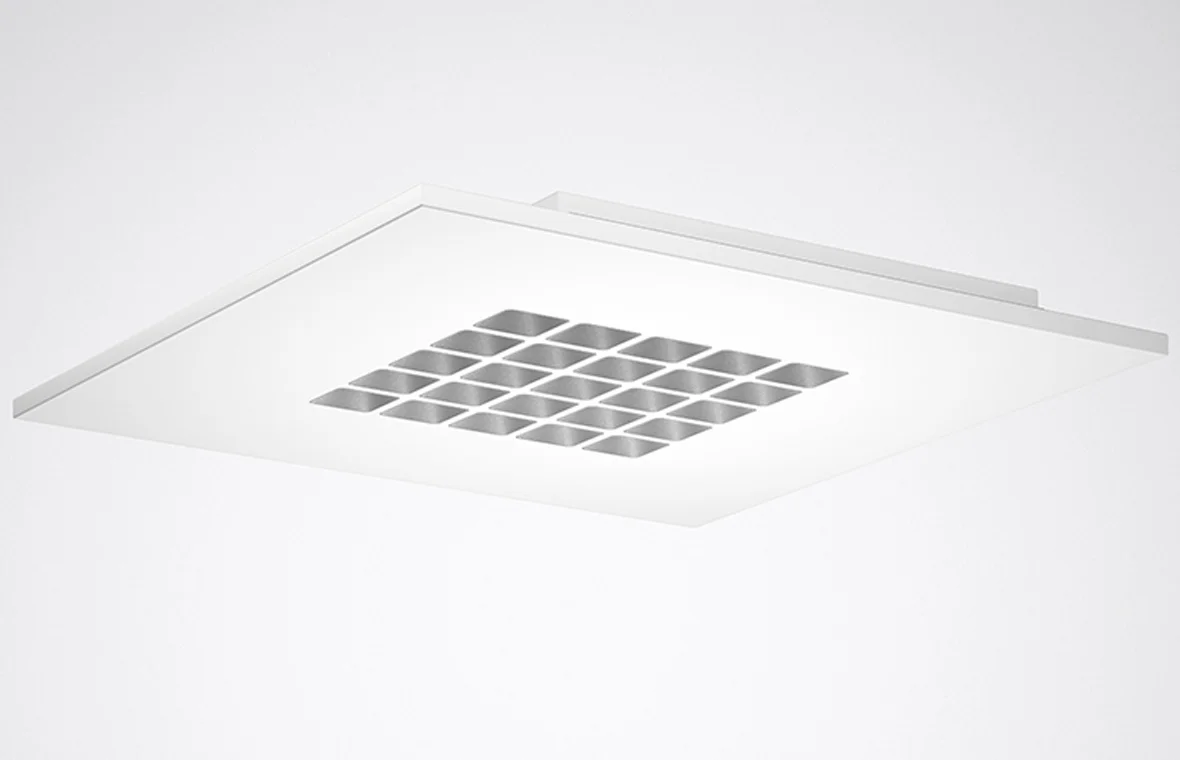

The light chambers are available as standard in three different colours – optionally in white, silver or matt black. The light chambers as well as the sheet steel can also be individually designed upon request.
High efficiency, low costs
Due to its high efficiency (up to 150 lm/W) and long service life (L90 50,000 h), Creavo is particularly attractive economically – with 50 percent lower energy consumption compared to conventional old systems.

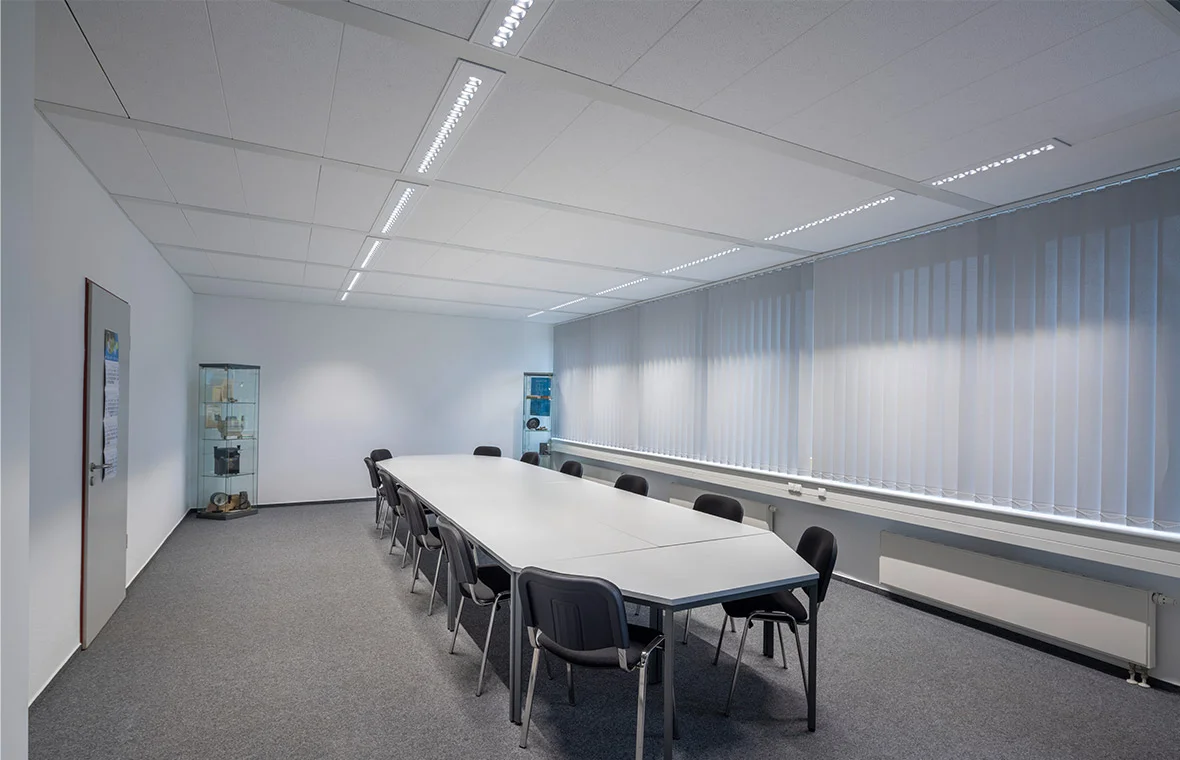

Refurbishment
Creavo is available with lumen packages analogous to the common T5/T8 solutions. In combination with the suitable module dimensions of conventional solutions, particularly simple one-to-one refurbishment is possible.
Networking
Luminaires can be quickly and easily networked with the TRILUX LiveLink light management system. In building areas without DALI control lines, the luminaires can be networked via LiveLink Wireless.
Future security

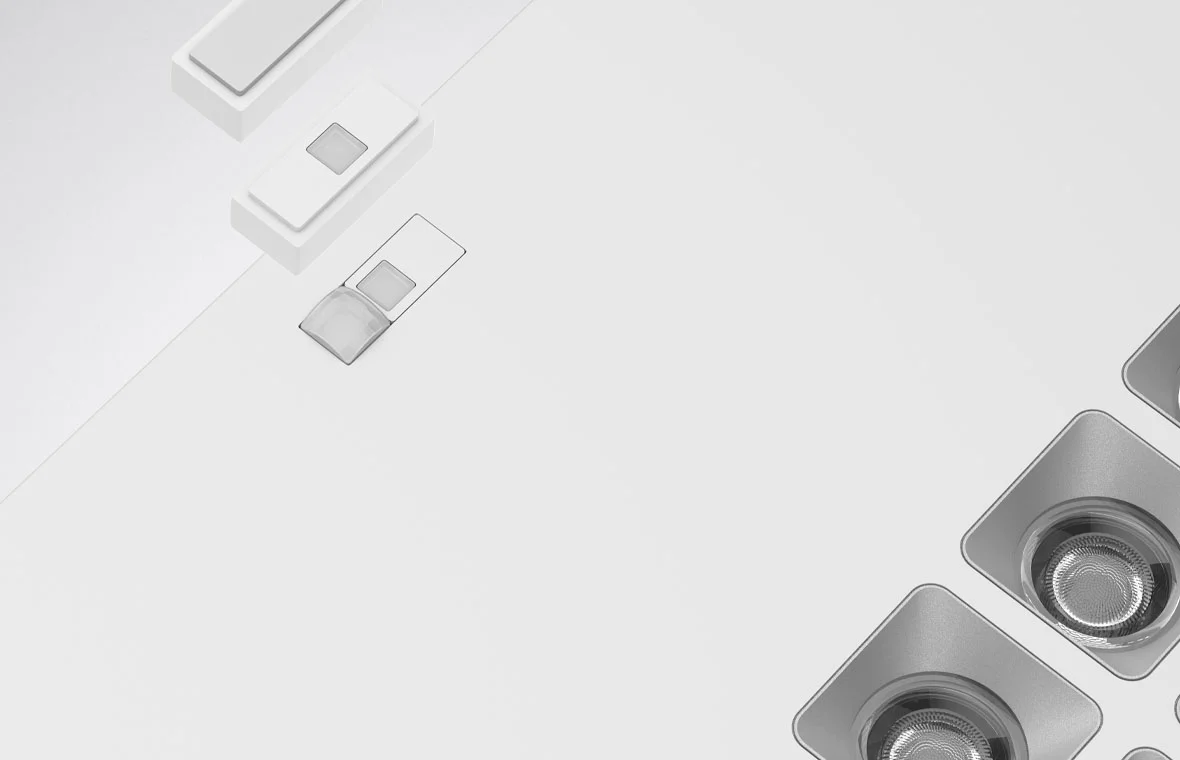

Creavo has an IoT harbour equipped as standard with a sensor for daylight and presence sensor or beacon for location-based services. Upon request, the IoT harbour, thanks to its interface-based design, offers users the option of integrating additional sensors. Separate emergency light variants provide light in the event of an emergency.
Technical features
| Construction forms | Rectangular, square |

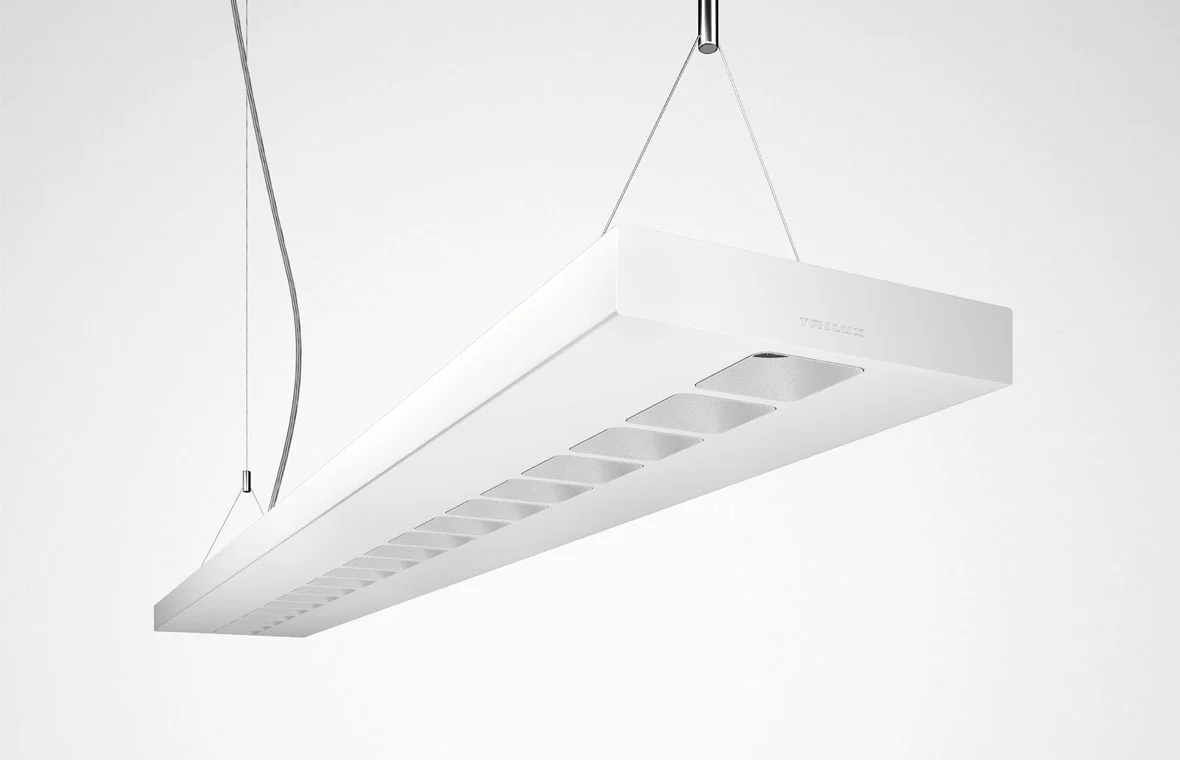

| Mounting methods | Lay-in, recessed, surface-mounted, suspended luminaire |
| Glare reduction | UGR<16; UGR<19 |
| Energy efficiency | Up to 150 lm/W |
| Lumen packages | 1,500 - 7,800 lm |
| Service life | L90 B50 50,000 h |
| Colour rendering/colour temperatures | CRI 80 / 90 |
| Light distribution | wide beam19 / wide beam16 plus wall-washer in same design |
| Electrical version | ET / ETDD |
| Protection rating on room side / safety class | IP 40 |
| Sensor technology | Daylight and presence |
| Control | LiveLink + beacon for Location Based Services |
| Emergency light | 3h EB |
| Luminaire colour | white + silver / white + white / white + black |
