Inplana LED / Onplana LED

Radiance to get excited about

The challenge

The demand for planar light in new and open office environments is repeatedly being focused upon – especially with round luminaires. The same applies to product families that enable various applications in an office to be implemented in a uniform design, thereby bringing luminaire design and architecture into harmony.

The solution

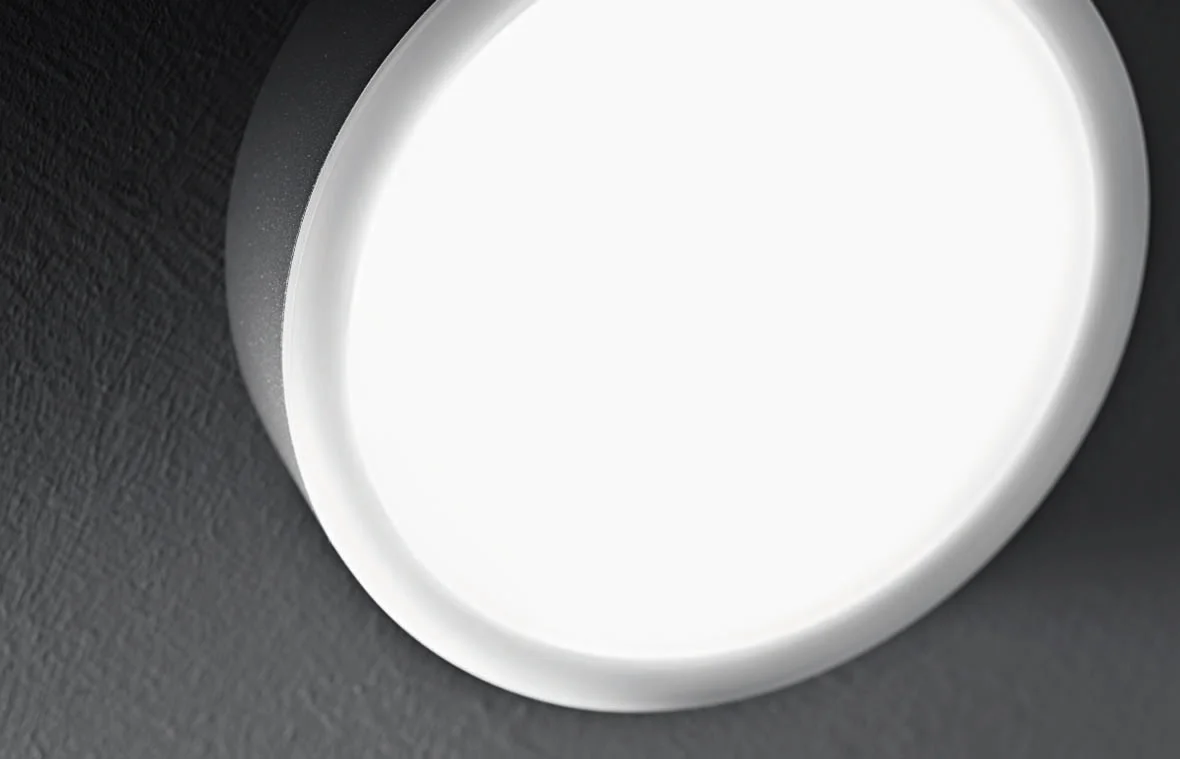

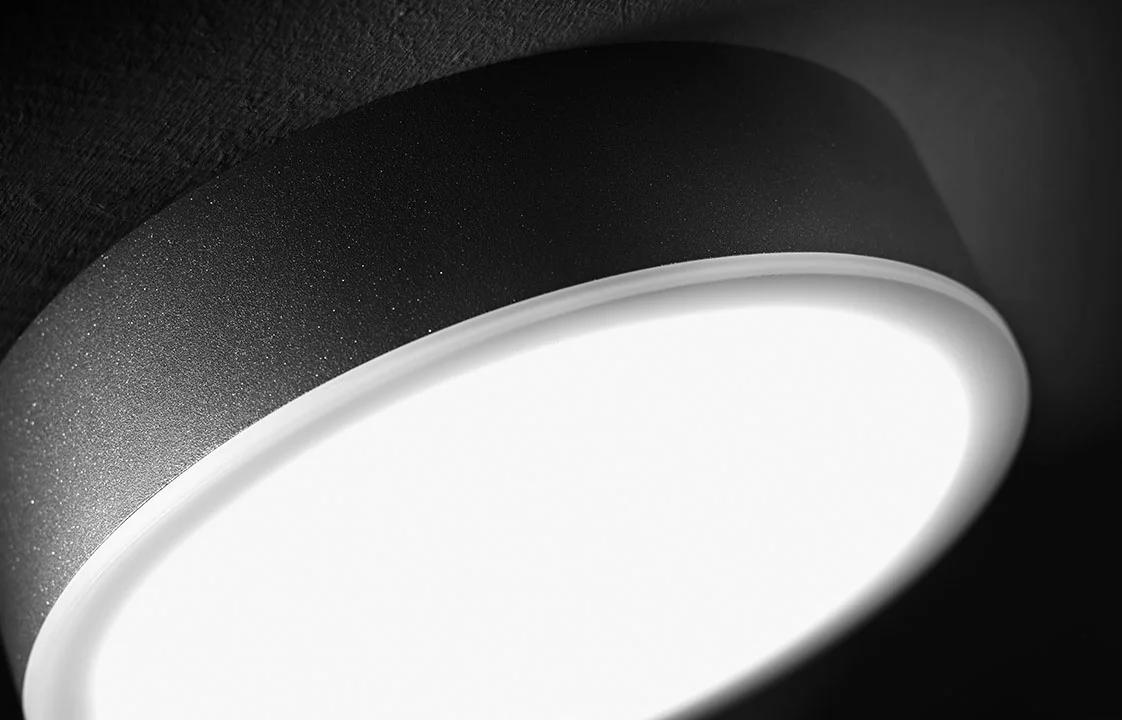

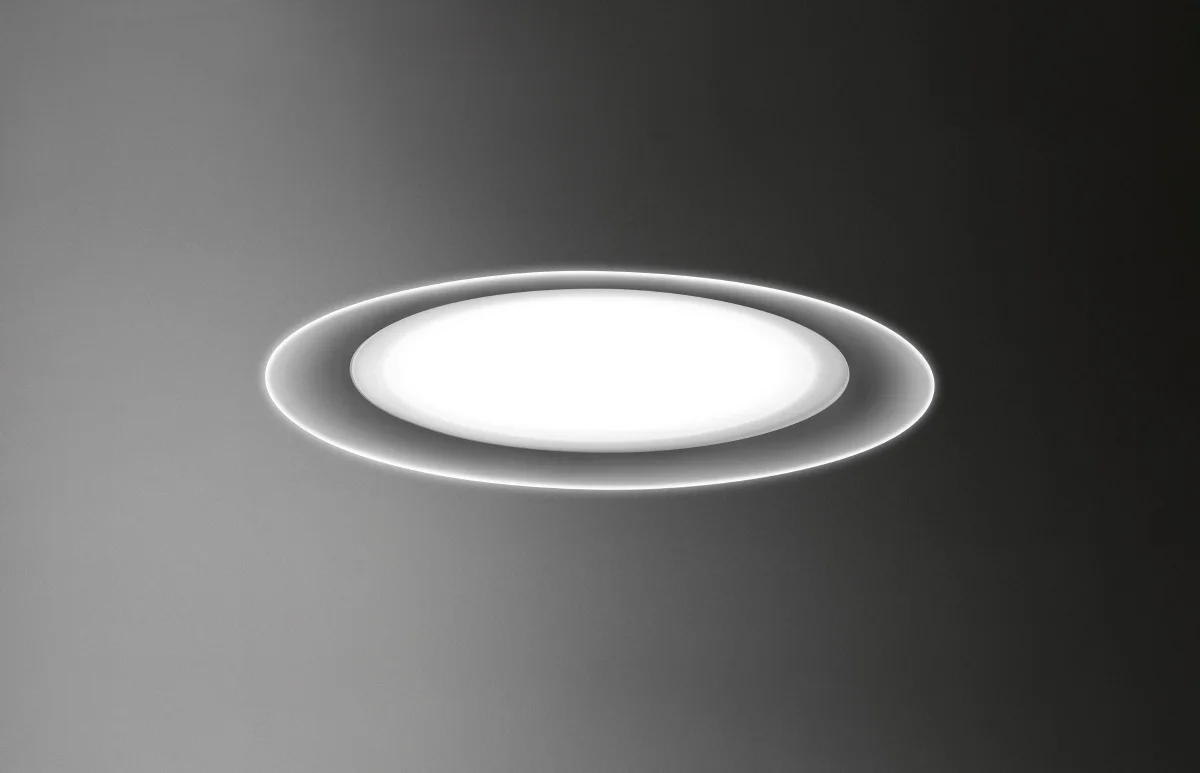

Whether for general lighting, workstation lighting or canopied outdoor areas – the expanded Inplana LED and Onplana LED series of downlights from TRILUX enables individual lighting concepts, both indoors and outdoors, to be installed in a uniform design. The luminaires emit glare-free, planar light thanks to their special optic, and with their various sizes are ideal in a variety of applications. n.

Connectivity

optional integration of a light management system (e.g. LiveLink)

HCL

the colour temperature can be set steplessly with the Tunable White variant to enable the benefits of HCL to be used

Saving energy

high energy efficiency of up to 130 lm/W, (2) a long service life of more than 70,000 hours

Many versions

Thanks to several versions, three construction sizes in each case and the option of ceiling or wall mounting, the series covers the various lighting requirements in the office sector

Always ready

IP54 version for installation to ceilings in canopied outdoor areas

outstanding

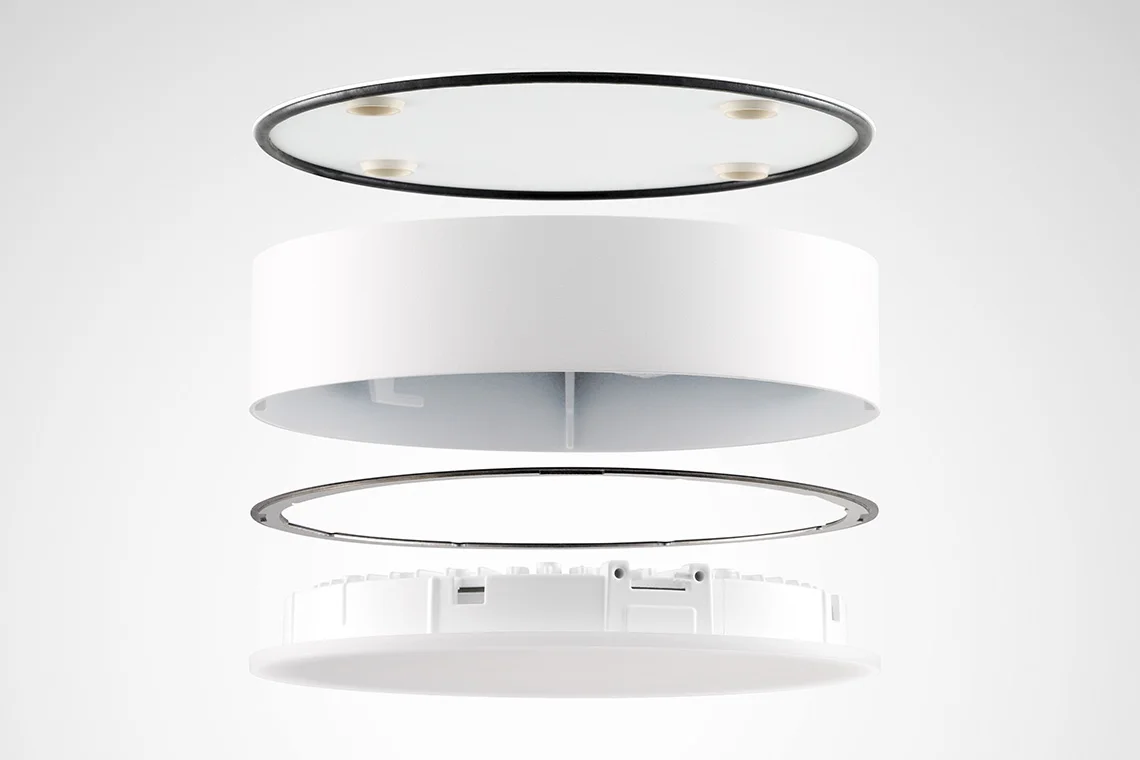

The optical system with diffuser panel and microprisms ensures uniform, glare-free light and maximum visual comfort

Technische Daten

Three optional construction sizes in each case (Inplana LED: 234 mm, 316 mm, 445 mm, Onplana LED: 234 mm, 316 mm, 445 mm)

Five different lumen packages (1,000, 2,000, 3,000, 4,000 and 5,000 lm)

Two optical systems (CDP and OTA)

Available in white and anthracite colours

High energy efficiency up to 130 lm/W and a long service life of up to 70,000 hours

Dust-proof and splashwater-proof IP54 version

Glare control compliant to UGR19 (illumination of VDU workstations in accordance with standards), UGR22 and UGR25

Tunable White version with infinitely variable control of colour temperature

Optional integration of a light management system (e.g. LiveLink)

Anwendung

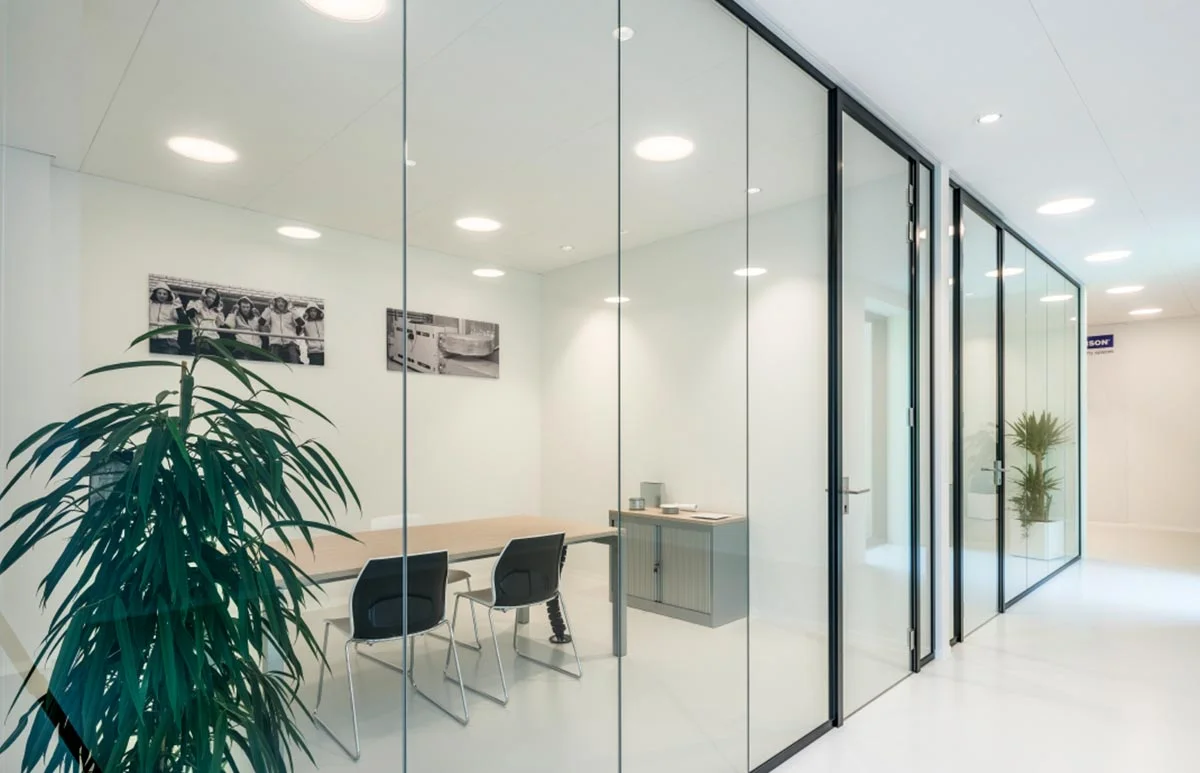

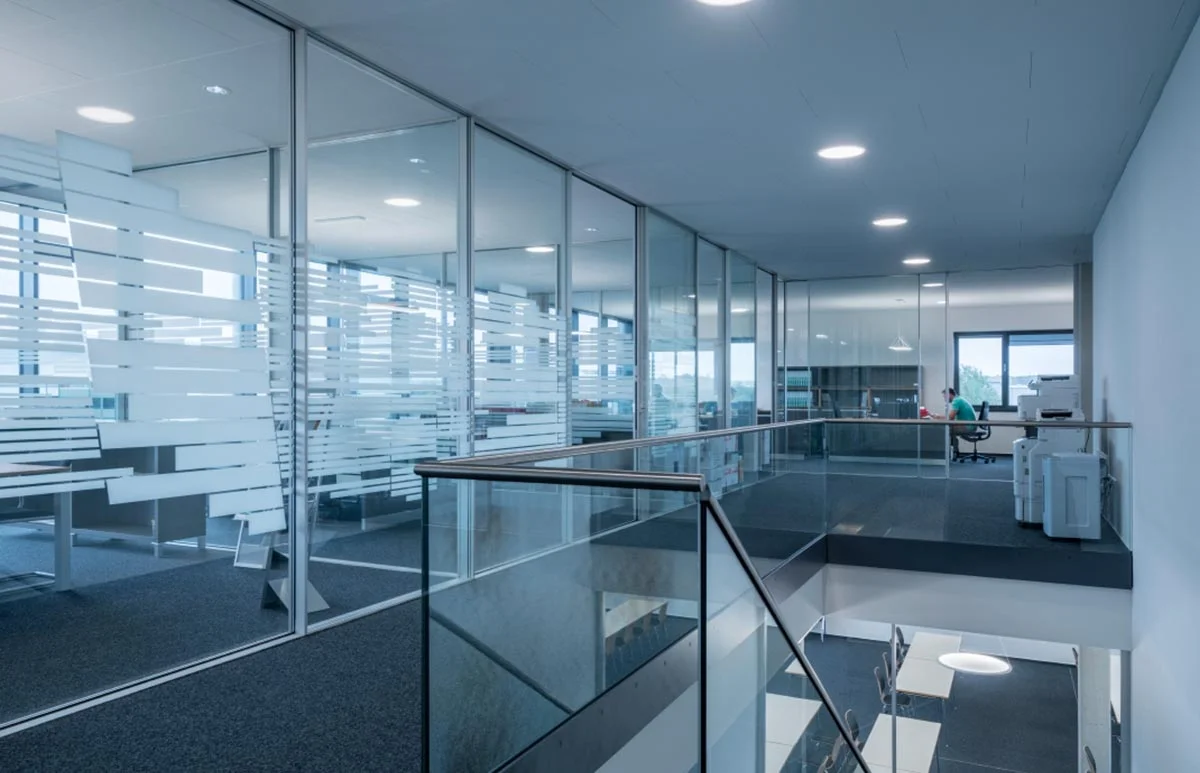

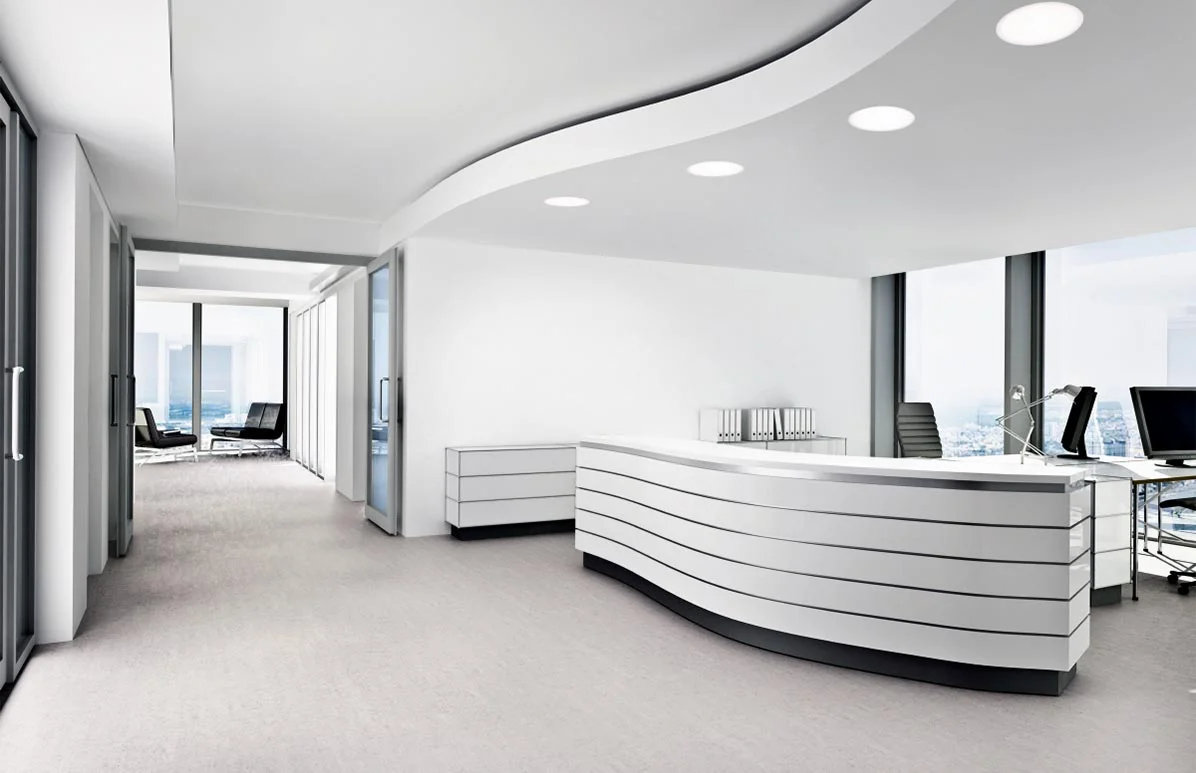

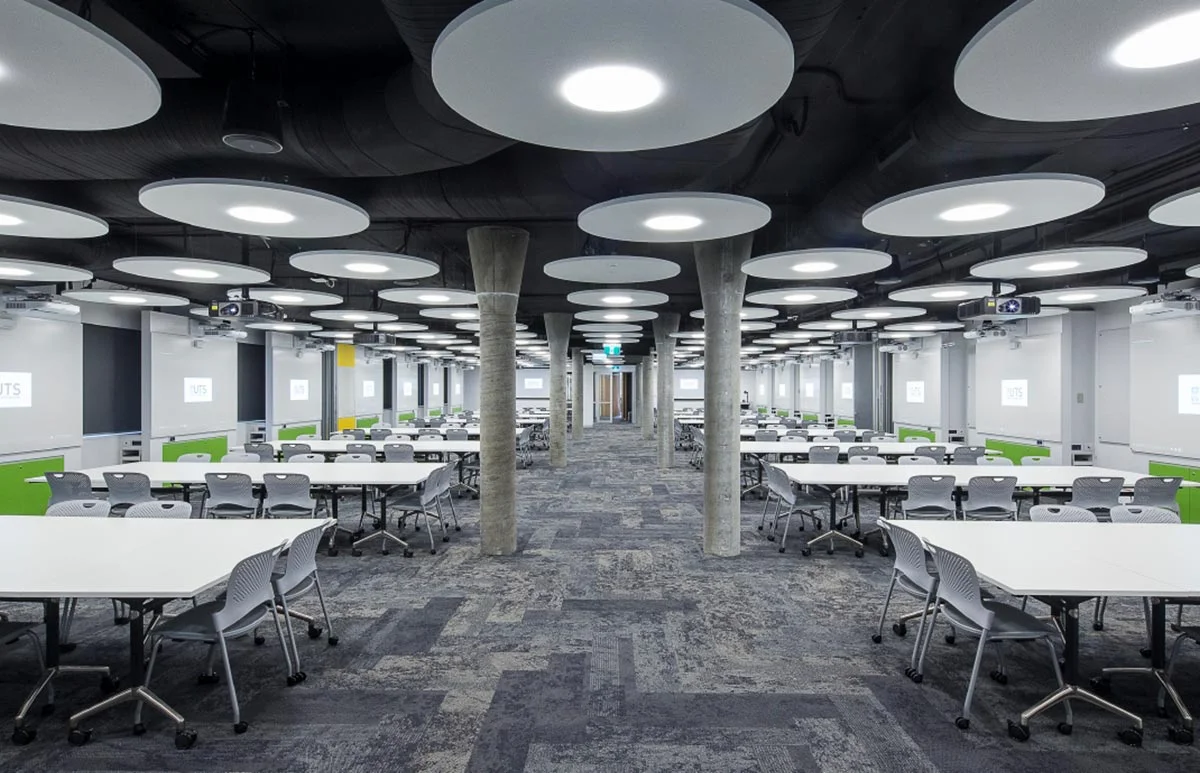

Whether for office workstations, conference rooms or outdoor areas – the Inplana LED and Onplana LED series confidently masters the diverse lighting tasks in offices. The recessed and surface-mounted downlights on walls and ceilings provide uniform, glare-free light and optimum visual comfort.
