LiveLink Premium
Light management without limits
The LiveLink Premium system solution is the first choice for large-scale projects: modular, powerful and scalable – from simple installations to complex systems with several thousand luminaires. Automatic or semi-automatic lighting control ensures optimum lighting quality and high energy efficiency.z.
Via open, IP-based interfaces, LiveLink Premium can be flexibly integrated into higher-level building management systems such as KNX or BACnet, providing ideal conditions for digital services, monitoring and remote maintenance. An extension via a wireless gateway transforms LiveLink Premium into a fully hybrid system, whose devices can be controlled either via wired connections or via Bluetooth® NLC.
Scalability
Intelligent light. Unlimited flexibility.

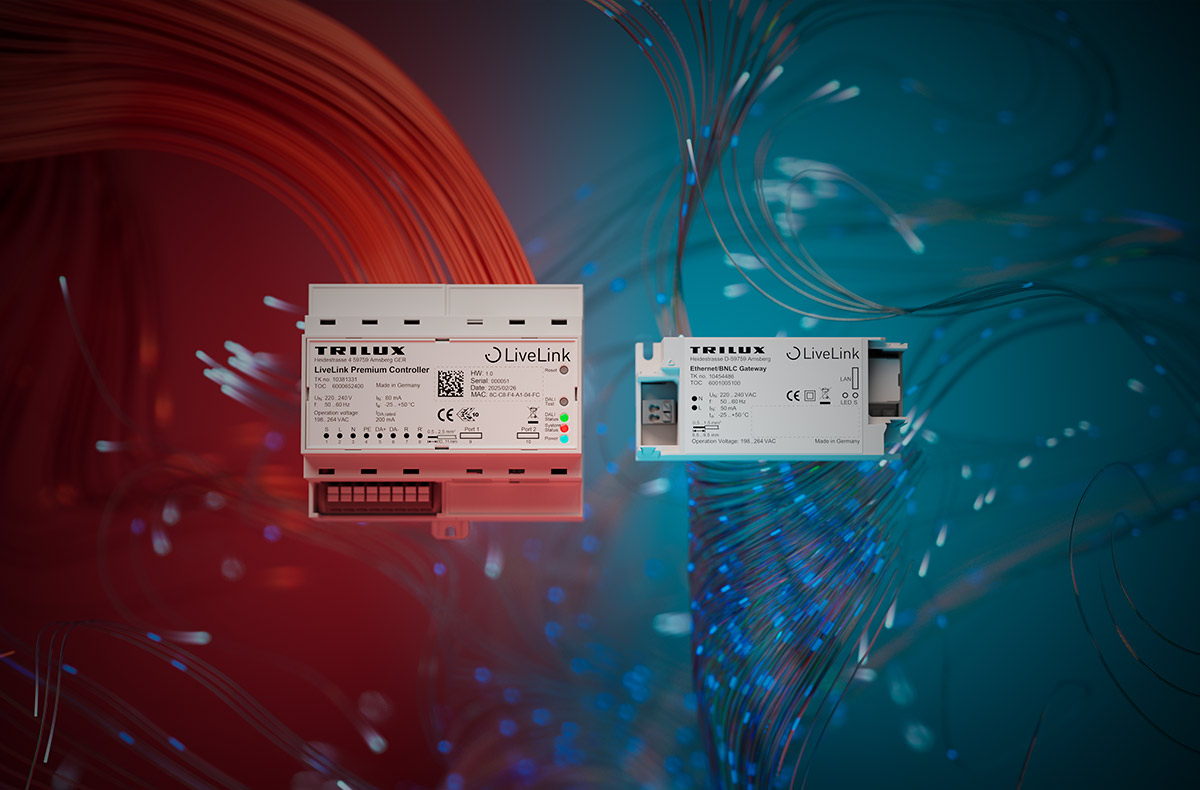

LiveLink Premium is characterised by its modular and network-based scalability. At its core, the system hardware consists of a LiveLink Premium Server or a Premium Controller and one or more LiveLink Premium Gateways, which interact with the server or controller via IP. For the periphery, in addition to couplers for integrating push-buttons, a wide range of sensors with different detection characteristics is available for lighting control.
For planning, this means:
- Linear scaling via additional IP-based network nodes
- Existing installations can be expanded section by section
- System size grows in line with project requirements
This provides planners and building owners with a high level of investment security, as projects can be implemented in construction phases and expanded consistently at a later date.
Hybrid Networks
For even greater flexibility
With the wireless extension, LiveLink Premium becomes a fully hybrid control system. Devices can be integrated either via wired connections or via Bluetooth® NLC. This makes efficient light management possible even in areas that are difficult to cable and allows seamless control via the LiveLink ONE app.
Ideal for applications where minimal structural intervention and high adaptability are key priorities.
Characteristics:
- Wireless communication via Bluetooth®
- Fast commissioning via the LiveLink ONE app
- Optimises energy efficiency with minimal installation effort
Typical areas of application:
- Existing buildings and refurbishments
- Rented spaces with frequent changes of use
- Temporary or modular room concepts
Connectivity
Connected light management for smart buildings
In intelligent buildings, light has long been more than just illumination – it has become part of a connected ecosystem. With LiveLink Premium, luminaires, sensors and control data can be seamlessly integrated into higher-level building management systems. Thanks to open standards such as MQTT, BACnet and KNX, energy, status and sensor data can be easily exchanged, analysed and used to control other building services – securely, interoperably and future-proof.

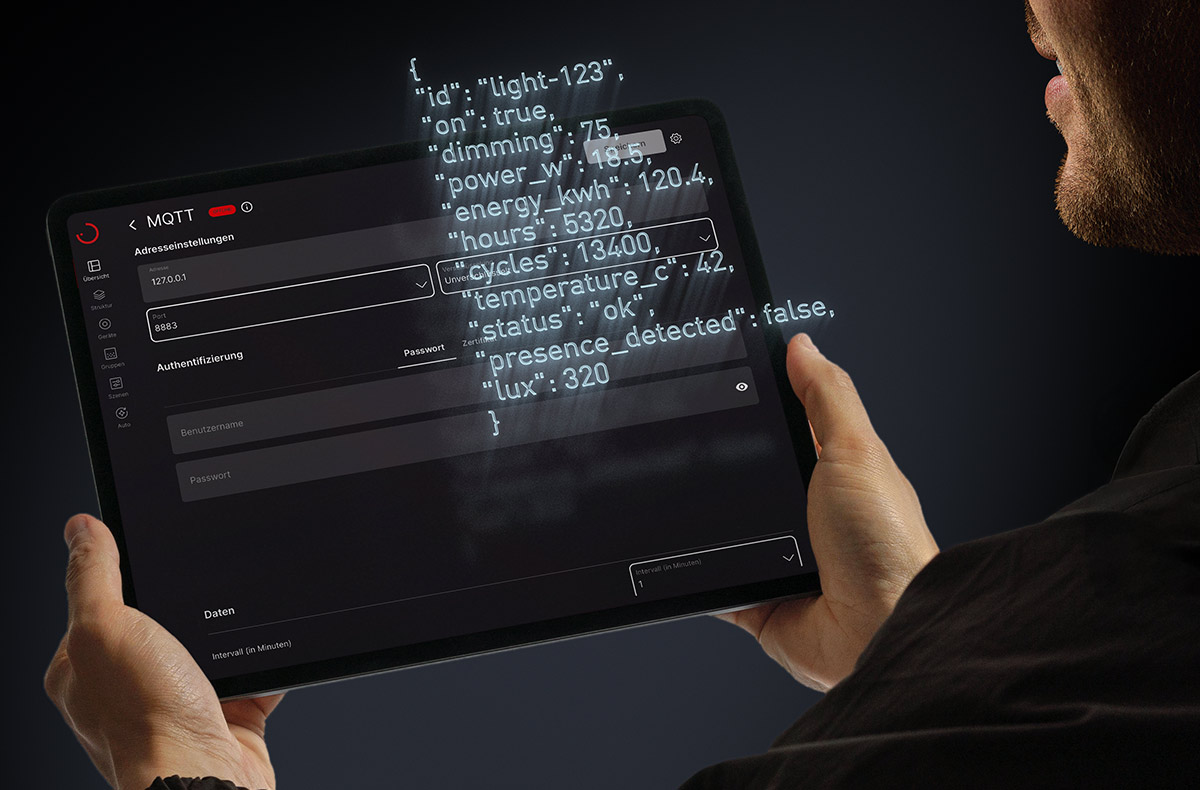

MQTT
Efficient and reliable transmission of building data in real time
Via the standardised MQTT interface, LiveLink provides all luminaire and sensor data from the DALI installation on a device-specific basis – including energy values, temperatures, switching states and sensor data – enabling direct integration into higher-level building management systems.
BACnet / BACnet Secure Connect
Open, secure building integration with BACnet
- Manufacturer-independent interoperability:
BACnet enables cross-discipline networking of technical building equipment and supports a wide range of building automation applications. - Holistic integration:
All devices and systems within building management – including lighting control – can be seamlessly integrated into a central management system. - Comprehensive data availability:
LiveLink features a BACnet interface for analysing group-based status and usage data as well as for controlling the lighting system. - Maximum security:
With BACnet Secure Connect and additional mechanisms such as encryption, authentication and access control, the integrity, confidentiality and authenticity of data are reliably protected.
KNX / KNX Secure
Globally established standard for intelligent building automation
- Established standard:
KNX is a globally used, standardised bus system for building automation, enabling intelligent control, networking and coordination of various building functions. - Seamless integration:
Via the LiveLink KNX Gateway, LiveLink Premium is connected directly to the KNX building management system. This allows groups and scenes to be conveniently controlled from KNX. DALI sensors can also be used for cross-discipline control within the building. - Enhanced cyber security:
With KNX Secure, LiveLink relies on the extended security architecture of the standard and reliably protects communication against unauthorised access.
Technical Data
The LiveLink Ecosystem comprises all components required for intelligent light management within building automation. Devices certified in accordance with the DALI-2 standard enable flexible and precise lighting control in a wide range of environments – from offices and retail lighting to industrial applications and outdoor lighting close to buildings.
| Applications | Industrial and logistics hallsOffice buildingsSchools and universitiesSales areas in retail and wholesale |
|---|---|
| Commissioning | Network setup and management via the LiveLink ONE® app |
| Connections | Mains connection, Ethernet and DALI-2 (up to 128 luminaire devices plus sensors per gateway) |
| Connectivity | Ethernet network (LAN) for commissioning and operation; optional: Cloud connection and wireless/BMS integration |
| Operation | Via DALI push-button coupler, sensors and LiveLink ONE® app |
| Mounting | Pre-assembled control cabinet or single components for DIN rail mounting |
| Energy efficiency | Time and sensor-controlled light control with presence detection, daylight harvesting and optional monitoring |
