Ready for the new generation of smart outdoor lighting? The new Jovie IQ features wide variance and combines innovative handling – tool-free, intuitive and convenient – with discreetly integrated light management. This makes lighting for streets, paths and squares future-proof, more sustainable and simply smarter.
Mounting
It’s that fast

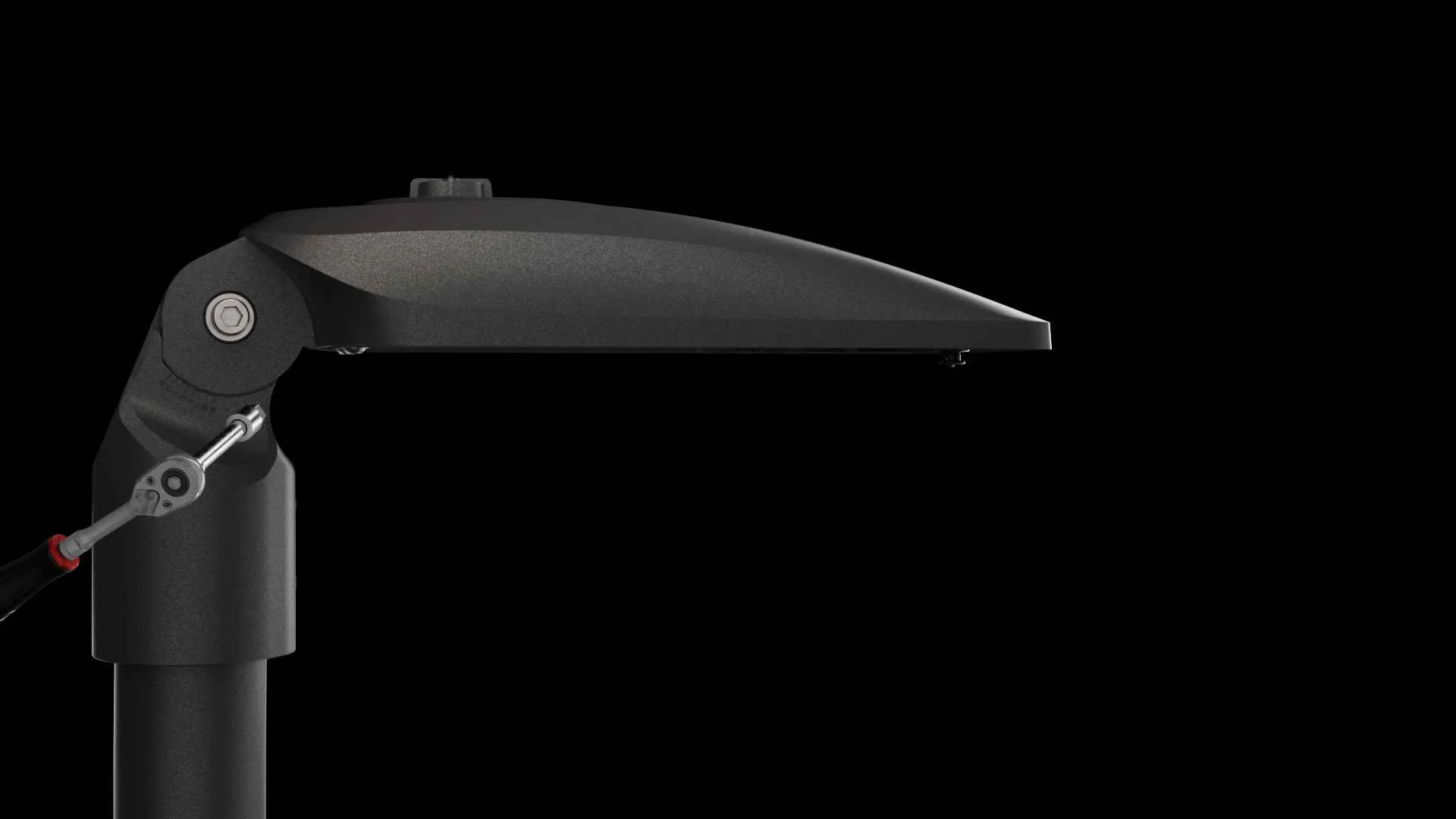

A mounting system with pre-installed components simplifies and speeds up installation. The luminaire head is placed on the post and screw-fastened. Inclination adjustment is also good: the luminaire can be set in 5° increments between -15° and 0° (bracket-mounting), or between 0° and 20° (post-top mounting) and conveniently fixed with just a single screw on the side.
- Efficient mounting thanks to pre-installed components
- Quick and precise inclination adjustment in 5° steps
- Inclination is fixed with just one screw
Clever
Efficiency redefined

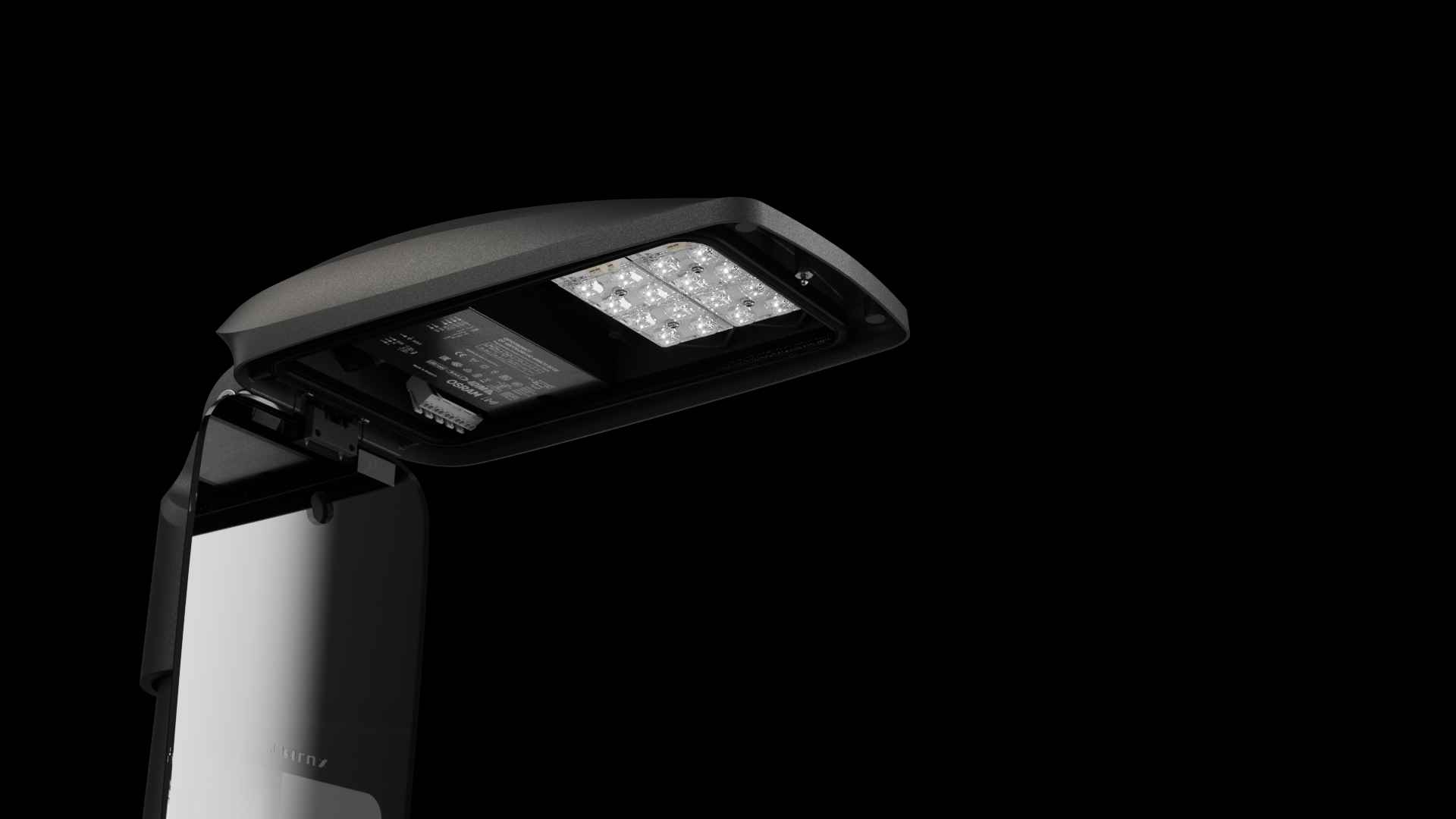

With highly efficient LEDs and smart light control, Jovie IQ saves energy with each use. For even more efficiency, the smart variant with intelligent light management is ideal. Highly practical: as well as the fully equipped FIX version, the FLEX option with fewer LEDs is also available. This creates more space in the luminaire head, e.g. for an emergency light module .
- High efficiency of up to 190 lm/W
- Smart variants with light management
- Integration of an emergency light module possible
MLT IQ optics
Precise light control

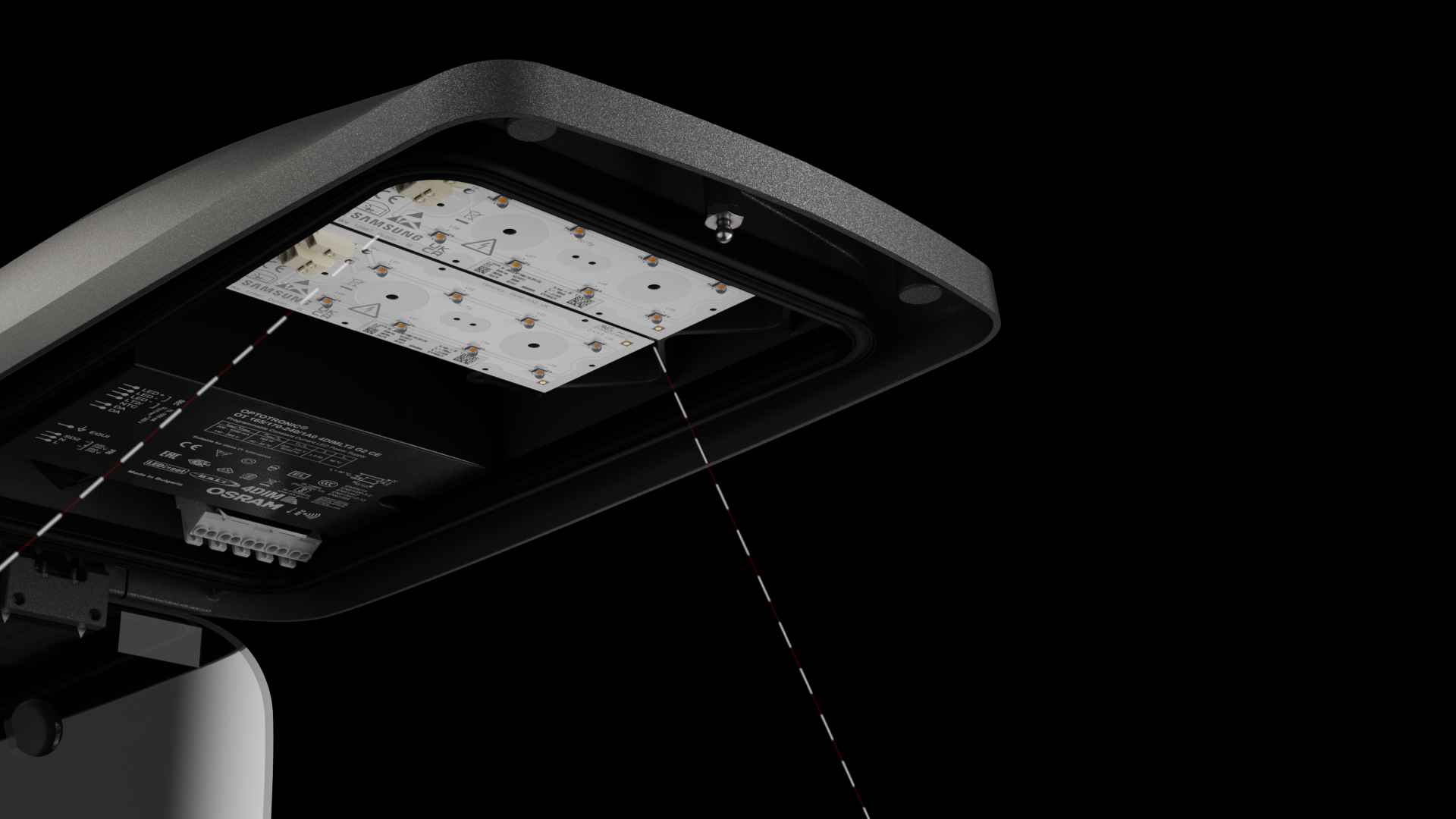

Thanks to customised MLT IQ optics with a wide range of light distribution curves, the light is directed exactly to where it is needed. This means that even large distances between posts are possible, with constant brightness and high uniformity. The Dark Sky-certified Jovie IQ also ensures that no light is emitted into the upper hemisphere.
- Precise light control via MLT IQ
- Wide spacing between posts possible with consistent brightness and uniformity
- Dark Sky certified

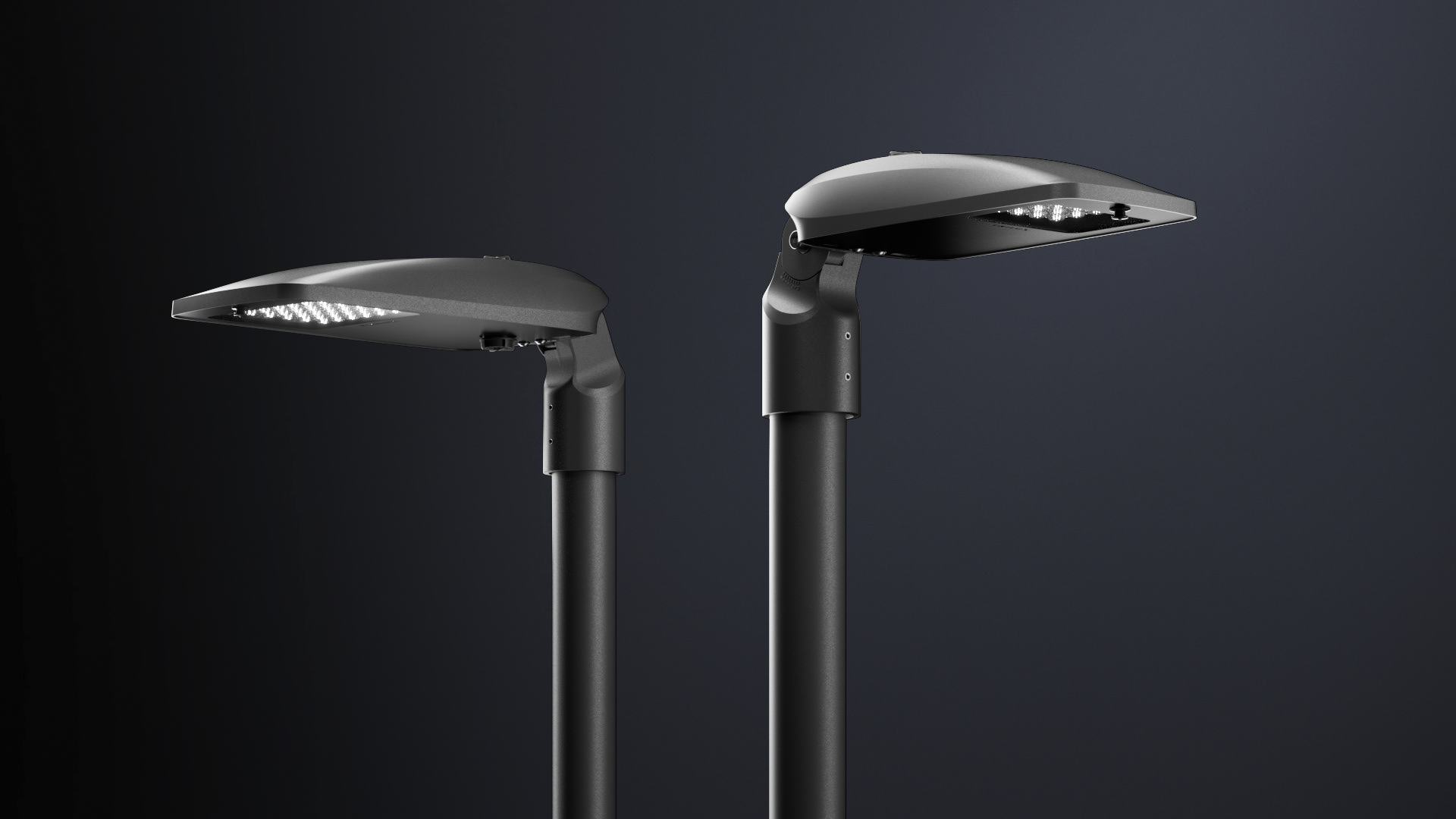

A flexible series
All possibilities for outdoor areas

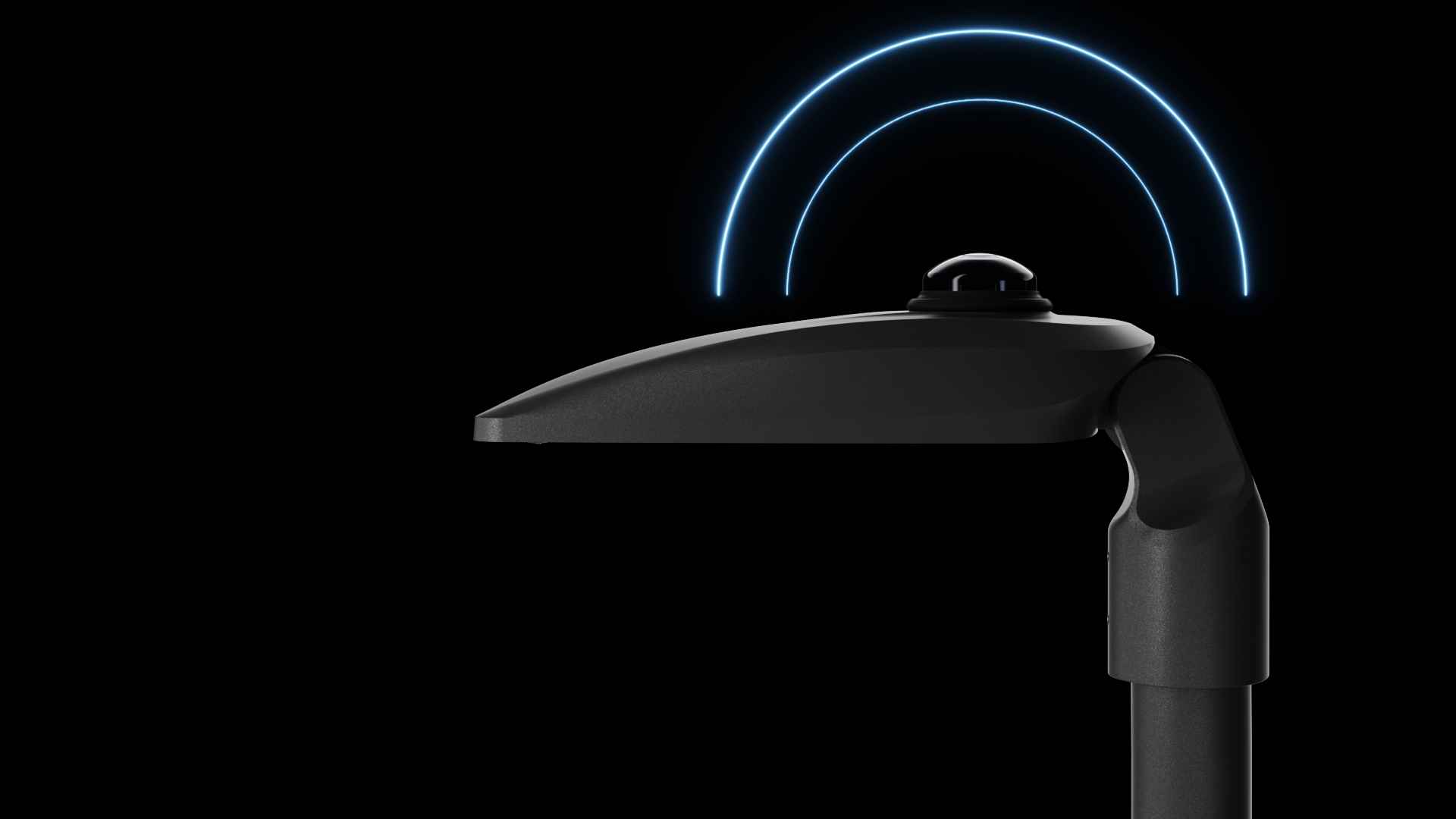

A series for millions of light points in outdoor areas: whether main road or residential street, car park or areas around buildings - Jovie IQ always offers the right lighting solution thanks to three sizes and a variety of precise MLT IQ optics. On request, can be smartly networked and with discreetly integrated sensors for maximum flexibility. A configurator helps with the selection.
- Three sizes (Jovie IQ 50/60/70), maximum flexibility
- Easy to configure, quick to install
- Smart networking and with integrated sensors
Mounting
It’s that fast
A mounting system with pre-installed components simplifies and speeds up installation. The luminaire head is placed on the post and screw-fastened. Inclination adjustment is also good: the luminaire can be set in 5° increments between -15° and 0° (bracket-mounting), or between 0° and 20° (post-top mounting) and conveniently fixed with just a single screw on the side.
- Efficient mounting thanks to pre-installed components
- Quick and precise inclination adjustment in 5° steps
- Inclination is fixed with just one screw
Clever
Efficiency redefined
With highly efficient LEDs and smart light control, Jovie IQ saves energy with each use. For even more efficiency, the smart variant with intelligent light management is ideal. Highly practical: as well as the fully equipped FIX version, the FLEX option with fewer LEDs is also available. This creates more space in the luminaire head, e.g. for an emergency light module .
- High efficiency of up to 190 lm/W
- Smart variants with light management
- Integration of an emergency light module possible
MLT IQ optics
Precise light control
Thanks to customised MLT IQ optics with a wide range of light distribution curves, the light is directed exactly to where it is needed. This means that even large distances between posts are possible, with constant brightness and high uniformity. The Dark Sky-certified Jovie IQ also ensures that no light is emitted into the upper hemisphere.
- Precise light control via MLT IQ
- Wide spacing between posts possible with consistent brightness and uniformity
- Dark Sky certified
A flexible series
All possibilities for outdoor areas
A series for millions of light points in outdoor areas: whether main road or residential street, car park or areas around buildings - Jovie IQ always offers the right lighting solution thanks to three sizes and a variety of precise MLT IQ optics. On request, can be smartly networked and with discreetly integrated sensors for maximum flexibility. A configurator helps with the selection.
- Three sizes (Jovie IQ 50/60/70), maximum flexibility
- Easy to configure, quick to install
- Smart networking and with integrated sensors
Jovie IQ is also flexible when it comes to circuit types. ETDD, LR, LRA, LRn, SLR and SLR-LR variants are available.
High lumen output: Jovie IQ is available with lumen packages from 1,000 lm to 26,000 lm.
Jovie IQ has an IP66 protection rating and is designed for use up to wind zone 4 and high snow loads.
The light colour influences efficiency and atmosphere. Jovie IQ is available in light colours 2200K, 2700K, 3000K and 4000K, and as a Tunable White version.
Future-oriented product design
- More Efficiency, Less CO₂ Emissions
The Jovie IQ achieves an efficiency of up to 190 lm/W. High efficiency means reduced energy costs and lower CO₂ emissions during operation. - Demand-driven Control
Modernes Lichtmanagement kann den Energiebedarf im Betrieb senken. Die Jovie bringt entsprechende Schnittstellen (D4I/Zhaga) mit. - Easy Component Replacement

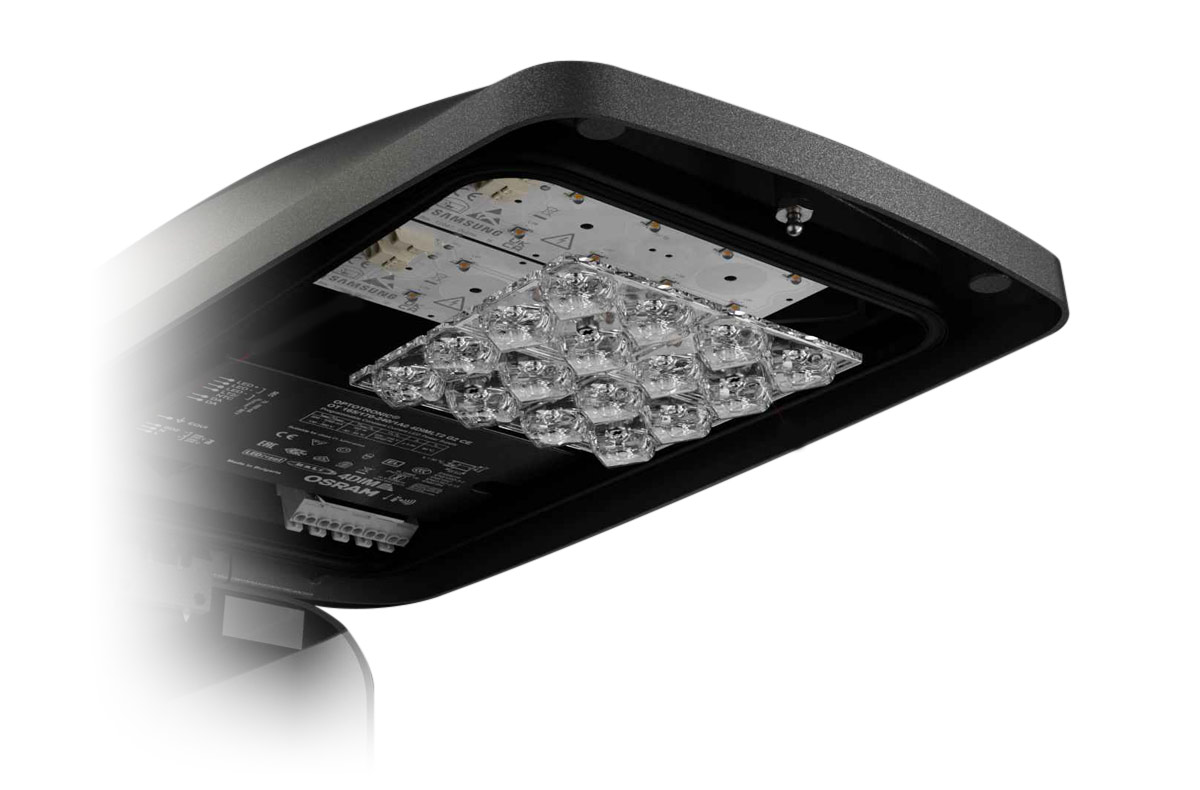

The Jovie IQ is designed for easy maintenance: functional components can be replaced without tools. Spare parts are guaranteed to be available for 15 years after the end of series production. - High Recyclability
Smart design conserves resources: thanks to its modular, glue-free construction, Jovie achieves a recyclability rate of 70 percent by mass. - Reduced Packaging Waste
By using multipacks, we reduce transport volume and packaging waste on the construction site. - Made in Germany
Produced in Germany – ensuring excellent quality standards and short delivery routes.
Design
Quality down to the last detail
Typical of Jovie IQ is the minimalist, modern design that blends harmoniously into any surroundings – modern or historic. Jovie IQ also focuses on quality with its materials: the luminaire head itself is made of high quality aluminium, and its cover is made of shatterproof, hardened non-laminated safety glass instead of PMMA.
- Timeless, minimalist-modern design for any architecture
- High-quality materials
- Breakage-resistant, shatterproof glass cover
