Design with clear lines
Functional solutions characterise the design of Fidesca: well thought-out details simplify mounting, installation and maintenance. Its clear lines and smooth surfaces are easy to clean and blend unobtrusively into the surroundings. The modular platform ensures a uniform appearance in terms of look and lighting effect.
- Functional design with installation-friendly details
- Clear lines and smooth surfaces for easy cleaning
- Modular platform for a uniform appearance and lighting effect

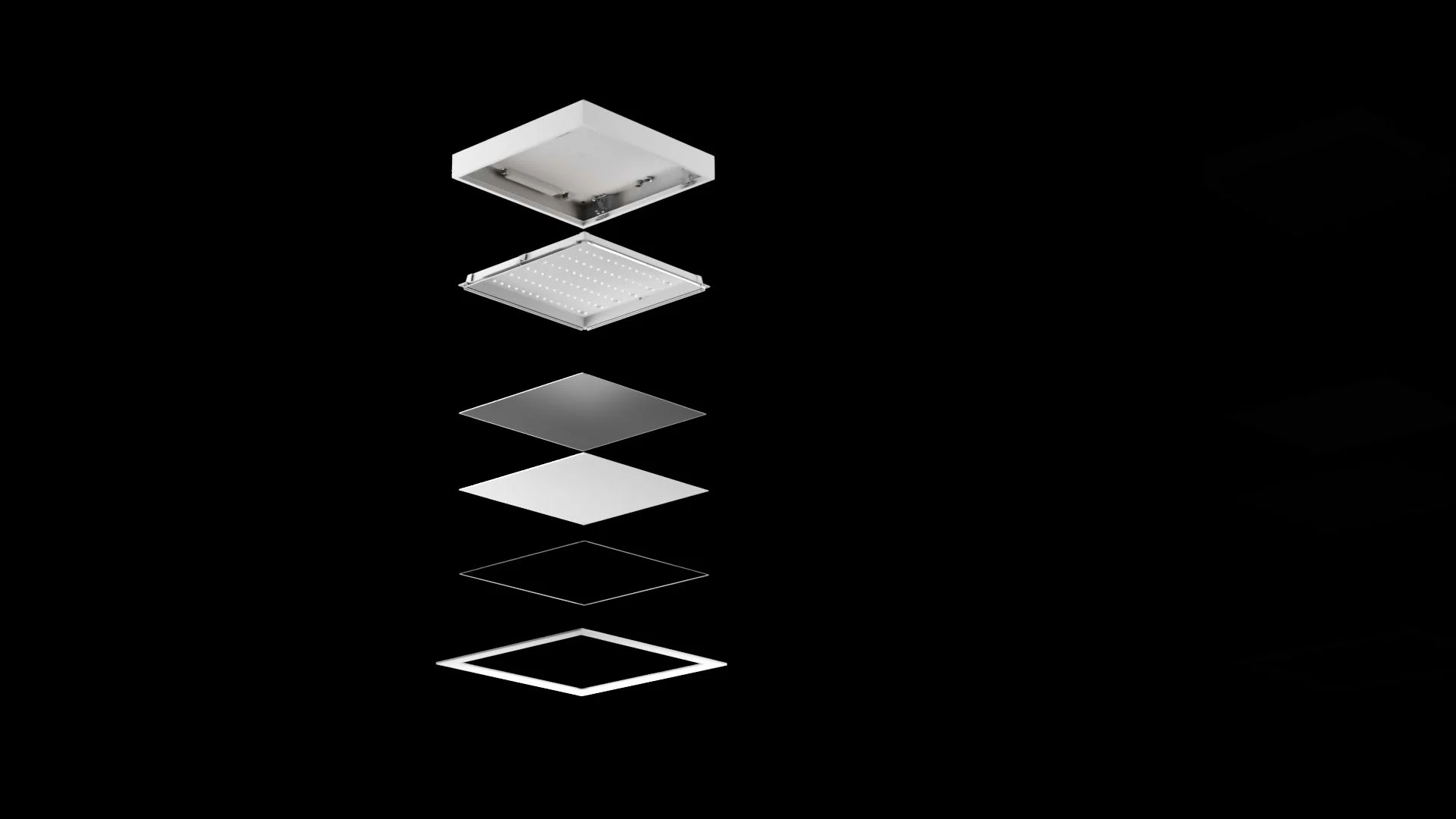

Modular, flexible, scalable
One platform for planar light, as if tailor-made.
For functionally and economically optimised solutions for every cleanroom application in industry or health & care. With its consistently modular structure, Fidesca combines a wide range of variants with consistent construction and design principles. Perfectly matched to the specific requirements, with uniformly high quality of light, appearance, handling and installation.
- Wide-area lighting for cleanrooms in industry and health & care
- Modular system – maximum flexibility and variety of versions
- Perfectly matched – consistent quality, design and handling

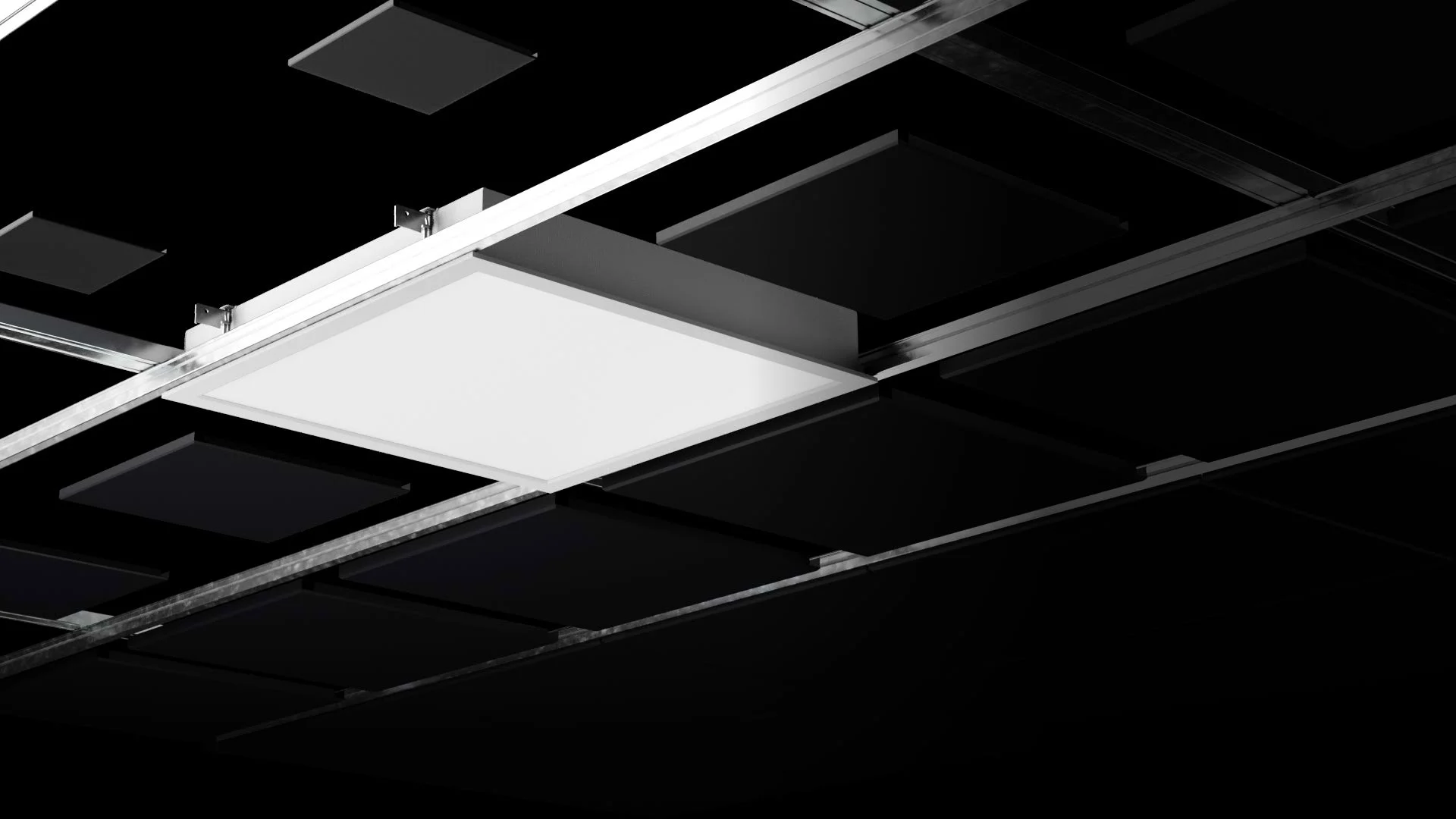

You have the ceiling, TRILUX has the luminaire
Lay-in luminaires for grid ceilings in various formats are the basis of the Fidesca range. Based on this, the modular platform offers further installation solutions for a wide variety of ceiling constructions. This means that every conceivable situation in cleanrooms can be illuminated effectively and consistently.
- Various square and rectangular shapes
- Variants for walk-on ceilings and ceiling-side maintenance
- Surface-mounted or recessed luminaires

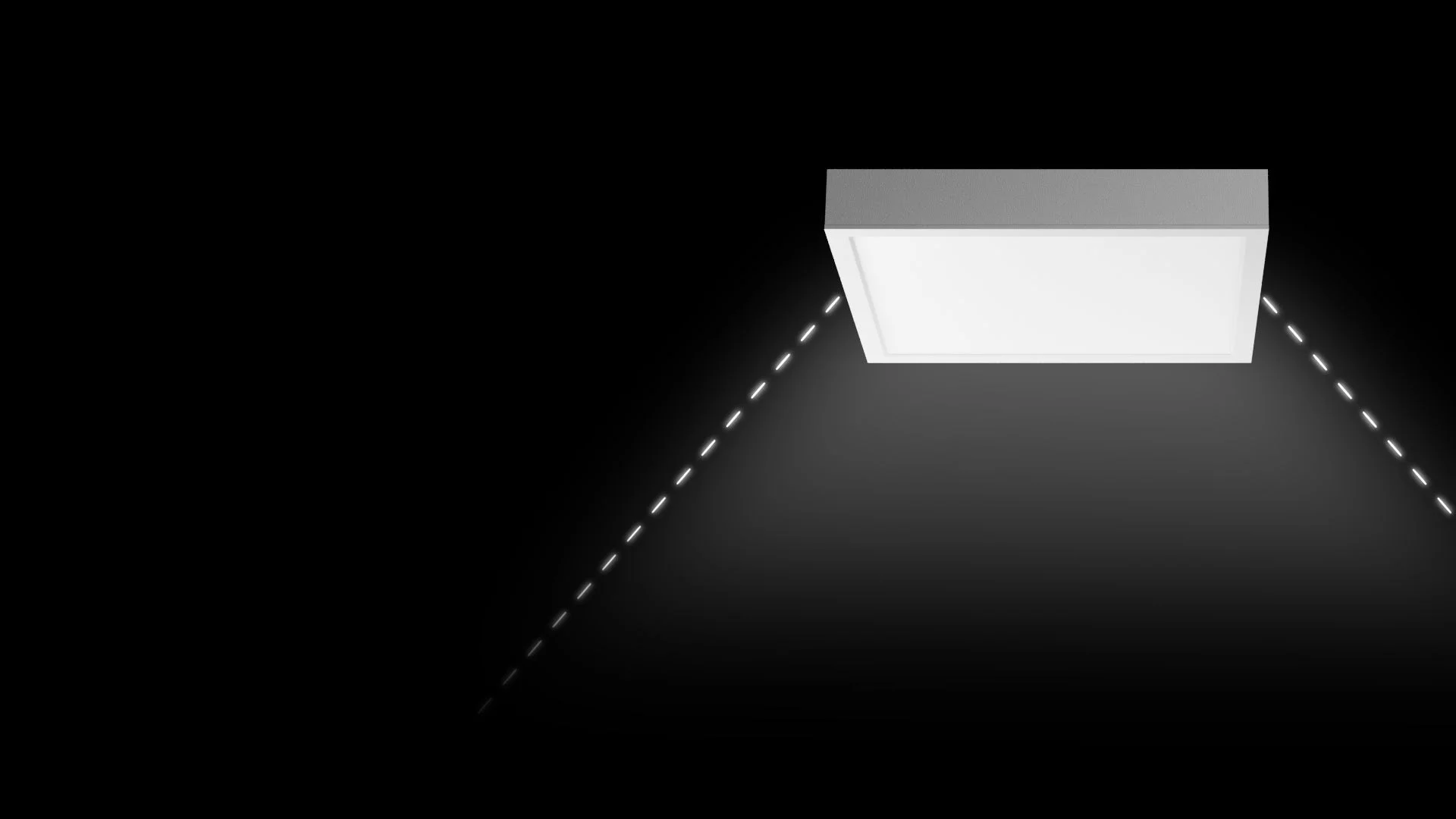

Quality of light meets efficiency
With four different light distributions, the Fidesca range includes versions with UGR19 for glare-free, standard-compliant workstation lighting and with high colour rendering quality Ra>90. LED modules with market-leading efficiency reduce energy consumption – this is good for the carbon footprint, with economical operation in the long term.
- UGR 19/ UGR 22
- Four light distributions (wide, Lambertian, narrow and asymmetric wide)
- Light colours: yellow, green, red, white, tunable white
Design with clear lines
Functional solutions characterise the design of Fidesca: well thought-out details simplify mounting, installation and maintenance. Its clear lines and smooth surfaces are easy to clean and blend unobtrusively into the surroundings. The modular platform ensures a uniform appearance in terms of look and lighting effect.
- Functional design with installation-friendly details
- Clear lines and smooth surfaces for easy cleaning
- Modular platform for a uniform appearance and lighting effect
Modular, flexible, scalable
One platform for planar light, as if tailor-made.
For functionally and economically optimised solutions for every cleanroom application in industry or health & care. With its consistently modular structure, Fidesca combines a wide range of variants with consistent construction and design principles. Perfectly matched to the specific requirements, with uniformly high quality of light, appearance, handling and installation.
- Wide-area lighting for cleanrooms in industry and health & care
- Modular system – maximum flexibility and variety of versions
- Perfectly matched – consistent quality, design and handling
You have the ceiling, TRILUX has the luminaire
Lay-in luminaires for grid ceilings in various formats are the basis of the Fidesca range. Based on this, the modular platform offers further installation solutions for a wide variety of ceiling constructions. This means that every conceivable situation in cleanrooms can be illuminated effectively and consistently.
- Various square and rectangular shapes
- Variants for walk-on ceilings and ceiling-side maintenance
- Surface-mounted or recessed luminaires
Quality of light meets efficiency
With four different light distributions, the Fidesca range includes versions with UGR19 for glare-free, standard-compliant workstation lighting and with high colour rendering quality Ra>90. LED modules with market-leading efficiency reduce energy consumption – this is good for the carbon footprint, with economical operation in the long term.
- UGR 19/ UGR 22
- Four light distributions (wide, Lambertian, narrow and asymmetric wide)
- Light colours: yellow, green, red, white, tunable white
-
Hygienic and easy to cleanSmooth surfaces, reliable seals and hygienic, durable materials mean that regularly caring and cleaning Fidesca luminaires is easy – a key aspect for light in cleanrooms. As such, the high quality of light is maintained over the entire luminaire service life. The modular platform enables optimised, individual solutions for the requirements of the specific application.
-
Ready for light managementSmart light for high-tech environments in industry or health & care: Fidesca luminaires are of course also available with digital interfaces for light management systems such as LiveLink One. For seamless integration into automated scenes and human centric lighting (HCL) concepts, for greater efficiency, safety and well-being.
-
SustainabilityFidesca’s LED technology ensures market-leading efficiency for lower energy consumption, and thus reduced emissions over the entire long service life. The modular design allows components to be repaired, replaced or updated – optionally also from above, and without opening the cleanroom ceiling. At the end of their lifespan, the recyclable materials can be simply and cleanly separated and returned to the material cycle. Fidesca’s plastic covers are already made from granulate with recycled content.
Matches the requirements. Precisely and completely
Whether in industry or health & care: each cleanroom has different requirements, for example in terms of tightness or hygiene. With the breadth of its modular platform, Fidesca precisely fulfils these needs: reliable, durable and precisely designed in terms of properties, without unnecessary complexity and costs. This variance comprises a variety of characteristics:
- Cover materials: from plastic to laminated safety glass
- Protection ratings: from IP20 to IP65
- Wide range of LED spectra, including monochromatic light
-

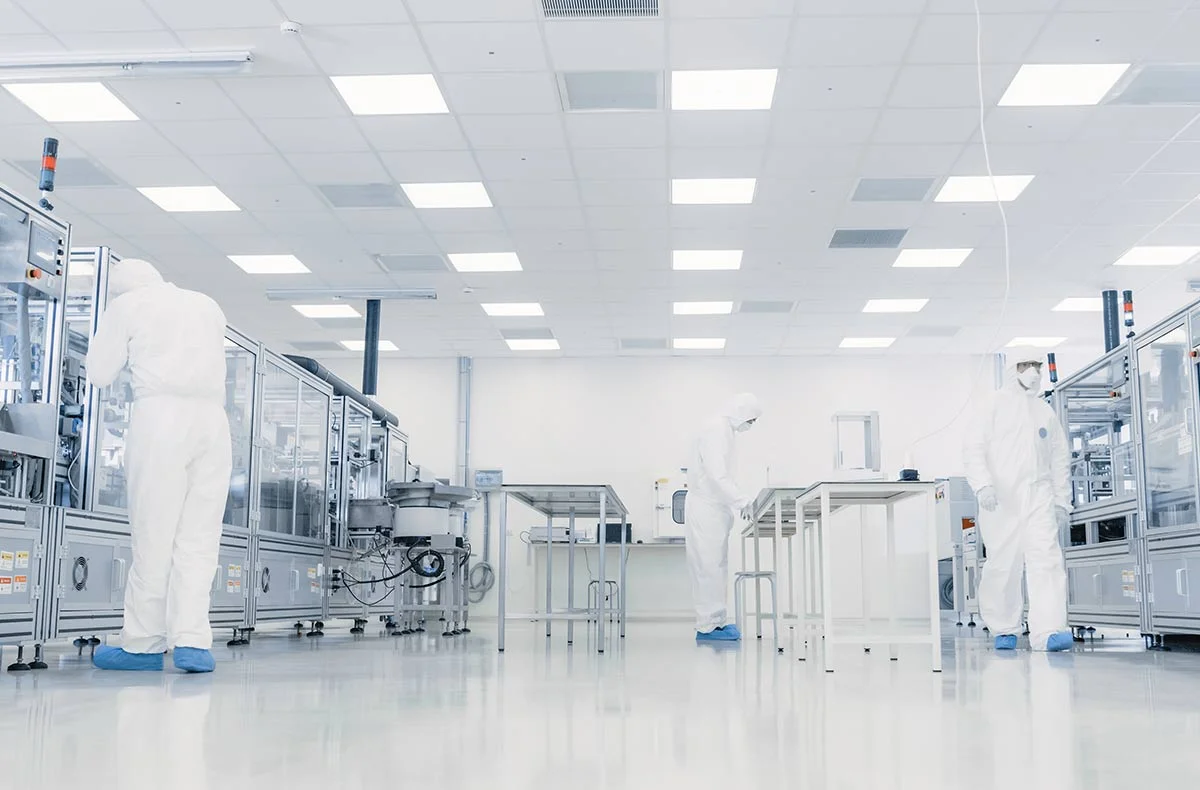

Industrial cleanrooms
The requirements here are as varied as the products – ranging from semiconductors, aerospace and optics to vehicle batteries for e-mobility. Fidesca offers customised solutions for such specific applications. The modular platform covers various cleanliness classes, installation situations and illuminance levels. For sensitive areas such as lithography, monochrome solutions such as the yellow/amber variants are relevant, which reduce short-wave light components and thus protect photosensitive processes.
Fidesca supports clean, cleanroom-compatible integration into ceiling and recessed systems, and, as well as complying to relevant standards such as ISO 14644-1, meets the needs of daily visual tasks requiring high quality of light. This makes it possible to uniformly plan throughout – from anterooms to highly sensitive areas.
-

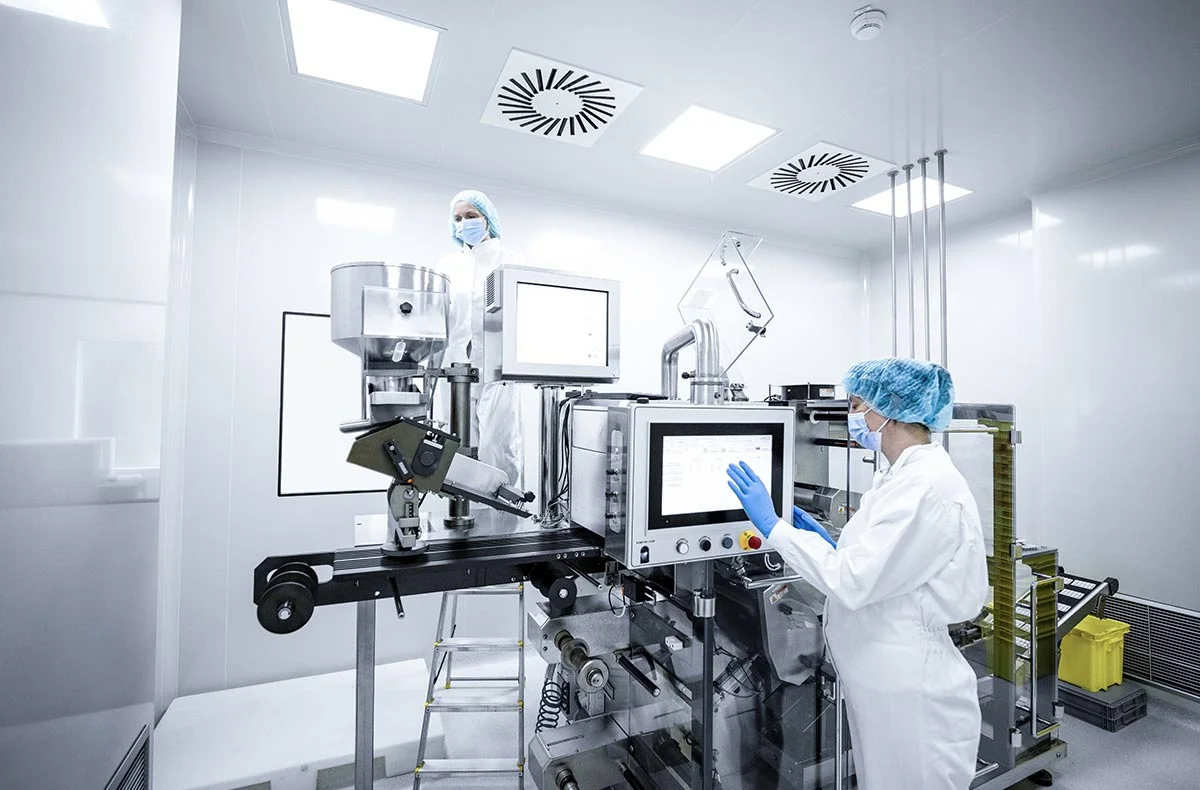

Pharmaceutical industry
Pharmaceutical production and laboratory areas work under strict GMP (Good Manufacturing Practice) guidelines: hygiene, cleanability, a long service life and low-contamination environments are mandatory. Fidesca is precisely designed for such requirements, offering lighting solutions that can be integrated into typical ceiling systems in such areas, and that function reliably over their entire life cycles. Wherever the risk of breakage needs to be minimised and a safe, controllable environment created, particularly robust covers such as laminated safety glass make sense.
GMP environments require standardised illuminance levels, typically from 500 to 750 lx. With various light distributions oriented to practice, Fidesca also responds to the respective visual tasks ranging from visual inspections to documentation: a high-quality platform for safe and fast planning as well as reliable continuous operation.
-

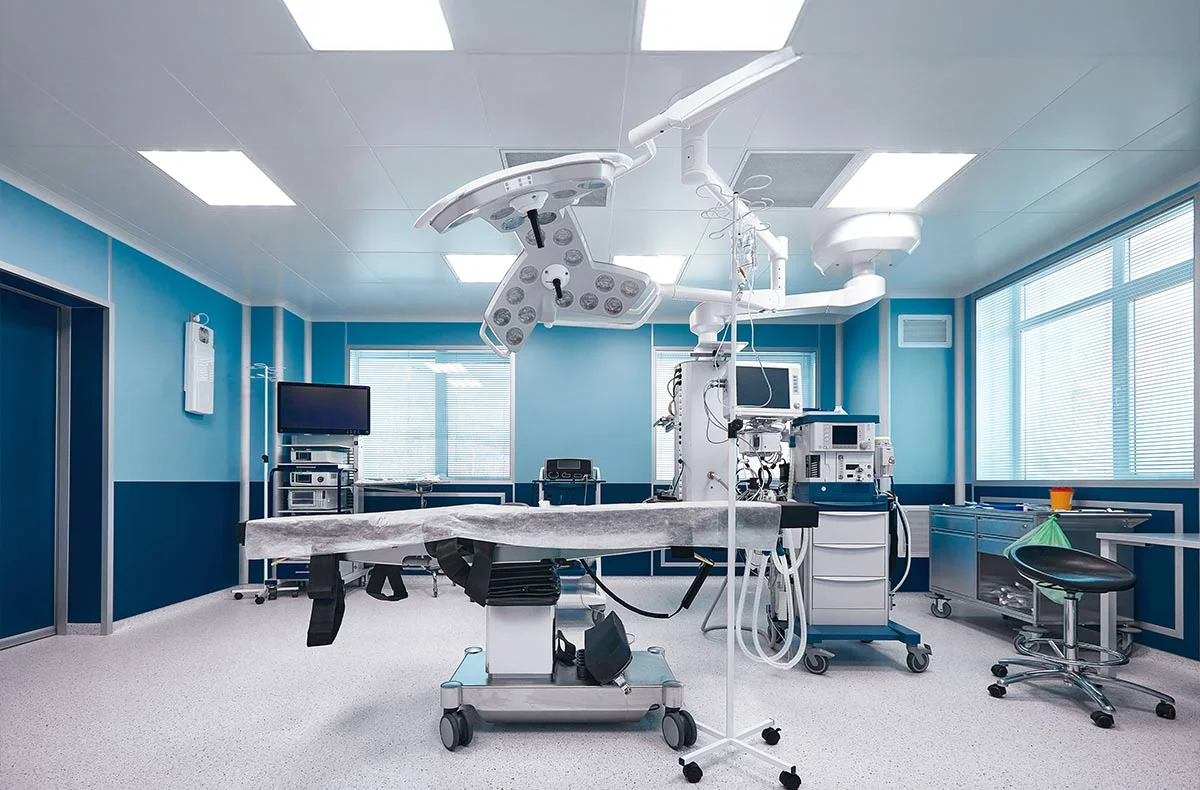

Health & Care
Light is a critical factor in health & care: it supports challenging work, reduces the risk of errors and contributes to the well-being of patients and staff. Fidesca covers different areas depending on the specification – from intensive care units to operating theatres and their surroundings. In the operating theatre itself, variants with specific spectra such as green light or models with variable light colour (RGBW) can provide visual relief for surgeons.
The technical side is also focused on: robust materials, easy-to-clean surfaces and, depending on the safety requirements, shatter-proof laminated safety glass (LSG) or alternative covers. For planning purposes, the platform concept provides decisive advantages. A standardised design, consistent installation scenarios and reliable spare parts/service capability give lighting designers and operators security and reliability in the long term.
| AG (PMMA; acrylic glass) | PC (polycarbonate) | SG (toughened safety glass, heat soaked) | LG (laminated safety glass) | |
| Lumen packages | 5,000, 6,000, 6,500, 6,900, 7,500, 8,500, 10,300, 12,400 lm | 5.000, 6.000, 6.500, 6.900, 7.500, 8.500 lm | 6,000, 6,900, 7,500, 8,500 lm | 6000, 6,900, 7,500, 8,500, 10,300, 12,400 lm |
| Efficiency | up to 180 lm/W | up to 170 lm/W | up to 145 lm/W | up to 140 lm/W |
| Service life |
100,000 h at L90 tq 25°C |
100,000 h at L90 tq 25°C |
100,000 h at L90 tq 25°C |
100,000 h at L90 tq 25°C |
| Ambienttemperature |
-20° to +40°C |
-20° to +40°C |
-20° to +40°C |
-20° to +40°C |
| Protection rating |
IP 65 all round Variants with IP65 on room side, IP50 on ceiling side" |
IP65 all-round | IP65 all-round |
IP65 all round Variants with IP65 on room side, IP50 on ceiling side Variants with IP65 on room side, IP20 on ceiling side" |
| Cleanroom class (ISO) | In certification | In certification | In certification | In certification |
| Impact resistance | IK03 | IK06 | IK06 | IK08 |
| HACCP, IFS, BRC-compliant | In certification | In certification | In certification | In certification |
| Approval mark | CE, D, ENEC | CE, D, ENEC | CE, D, ENEC | CE, D, ENEC |
| Replaceable light engine | yes | yes | yes | yes |
| Luminaire materials |
Housing made of coated galvanised sheet steel, coated aluminium frame |
Housing made of coated galvanised sheet steel, coated aluminium frame |
Housing made of coated galvanised sheet steel, coated aluminium frame |
Housing made of coated galvanised sheet steel, coated aluminium frame |
| Optics | Diffuse Lambertian, diffuse narrow distribution | Diffuse Lambertian, diffuse narrow distribution | wide distribution, diffuse Lambertian | Wide distribution, diffuse Lambertian, diffuse narrow distribution, diffuse asymmetric |
| Glare control | UGR <19, UGR <22 | UGR <19, UGR <22, | UGR <19, UGR <22 | UGR<19, UGR <22 |
| Colour rendering/-temperature |
CRI 80, CRI 90 3000K, 4000K, 940+yellow light, 940+red light" |
CRI 80 4.000K | CRI 80 4.000K |
CRI 90 4000K, 6500K, tunable white, 940+RGB, 940+green light, 940+yellow light, 940+red light |
| Electrical version | ETDD (DALI dimmable) | ETDD (DALI dimmable) | ETDD (DALI dimmable) | ETDD (DALI dimmable) |
| Mounting methods | Surface-mounted, recessed, lay-in | Recessed, lay-in | Recessed, lay-in | Surface-mounted, recessed, lay-in |
| Compatible ceiling systems | Plasterboard, grid ceilings, concealed grids, metal case ceilings, cleanroom ceilings (strip grid, T-grid, walk-on) | Plasterboard, grid ceilings, concealed grids, metal case ceilings, cleanroom ceilings (strip grid, T-grid, walk-on) | Plasterboard, grid ceilings, concealed grids, metal case ceilings, cleanroom ceilings (strip grid, T-grid, walk-on) | Plasterboard, grid ceilings, concealed grids, metal case ceilings, cleanroom ceilings (strip grid, T-grid, walk-on) |
| Sizes |
Recessed: 625x625 (M84) I 1250x312.5 (M57) I 1550x312.5 (M59) 600x600 (M73) I 1200x300 (M46) I 1500x300 (M48) 1200x600 (M76) I 1250x625 (M87) I 1550x625 (M89) Surface-mounted D (622x622 surface-mounted) |
Recessed: 625x625 (M84) I 1250x312.5 (M57) 600x600 (M73) I 1200x300 (M46) |
Recessed: 625x625 (M84) I 1250x312.5 (M57) 600x600 (M73) I 1200x300 (M46) |
Recessed 625x625 (M84) I 1250x312.5 (M57) I 1550x312.5 (M59) 600x600 (M73) I 1200x300 (M46) I 1500x300 (M48) 1200x600 (M76) I 1250x625 (M87) I 1550x625 (M89) Surface-mounted D (622x622), D1 (1248x296), D2 (1548x296), D3 (1248x412), D4 (1548x412) |
| Further features |
Variants with connection cable available Variants with single battery available |
Variants with connection cable available | Variants with connection cable available |
Variant with connection cable available Variant with single battery available |
|
Applications |
Healthcare: laboratories, examination rooms, patient rooms, functional rooms Industry: food, microelectronics, commercial kitchens, laundries, cleanrooms in industrial and pharmaceutical environments |
Healthcare: laboratories, examination rooms, patient rooms, functional rooms Industry: food, microelectronics, commercial kitchens, laundries, cleanrooms in industrial and pharmaceutical environments |
Healthcare: Operating theatres and peripherals, intensive care, laboratories, examination rooms Industry: food, microelectronics, cleanrooms in industrial and pharmaceutical environments |
Healthcare: Operating theatres and peripherals, intensive care, laboratories, examination rooms Industry: food, microelectronics, cleanrooms in industrial and pharmaceutical environments |
| LiveLink-ready | yes | yes | yes | yes |
| MOR (Monitoring-ready) | yes | yes | yes | yes |
