B.VEO

Power meets understatement

Attractively display merchandise with B.VEO spotlights, featuring up to 5000 lumens. In a cylindrical design – as a spotlight for track or for semi-recessed ceiling mounting.

Light made to measure

B.VEO can be rotated through 355° and pivoted through 90°. Patented reflectors with 3D facets create light distributions ranging from accenting Spot to uniform Very Wide Flood.

Intelligent light

Smart light management in the store? Simply implemented with B.VEO – either with control line or wireless. LED IQ technology enables operation via tablet or smartphone.

Wide range of LED spectra

Optimally coordinated colour balance for different merchandise groups and individual atmospheres – to achieve this B.VEO offers eight white light colours: 2700K, 3000K, 3500K, 4000K, 3100K - BRILLIANT COLOUR, 3200K - EFFICIENT WHITE, 4000K - EFFICIENT COOL, 2700K - BRILLIANT FOOD and Tunable White (2700K – 6500K)

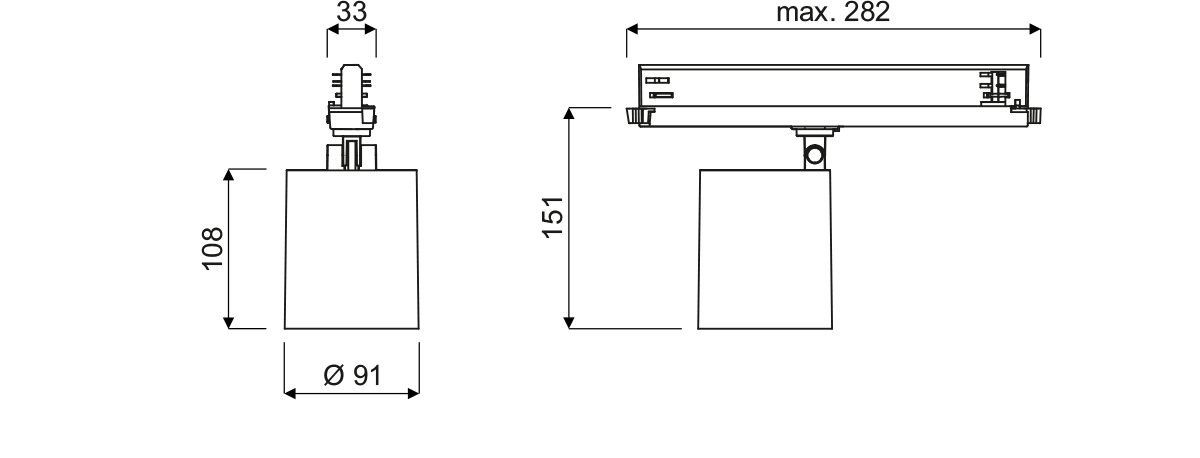

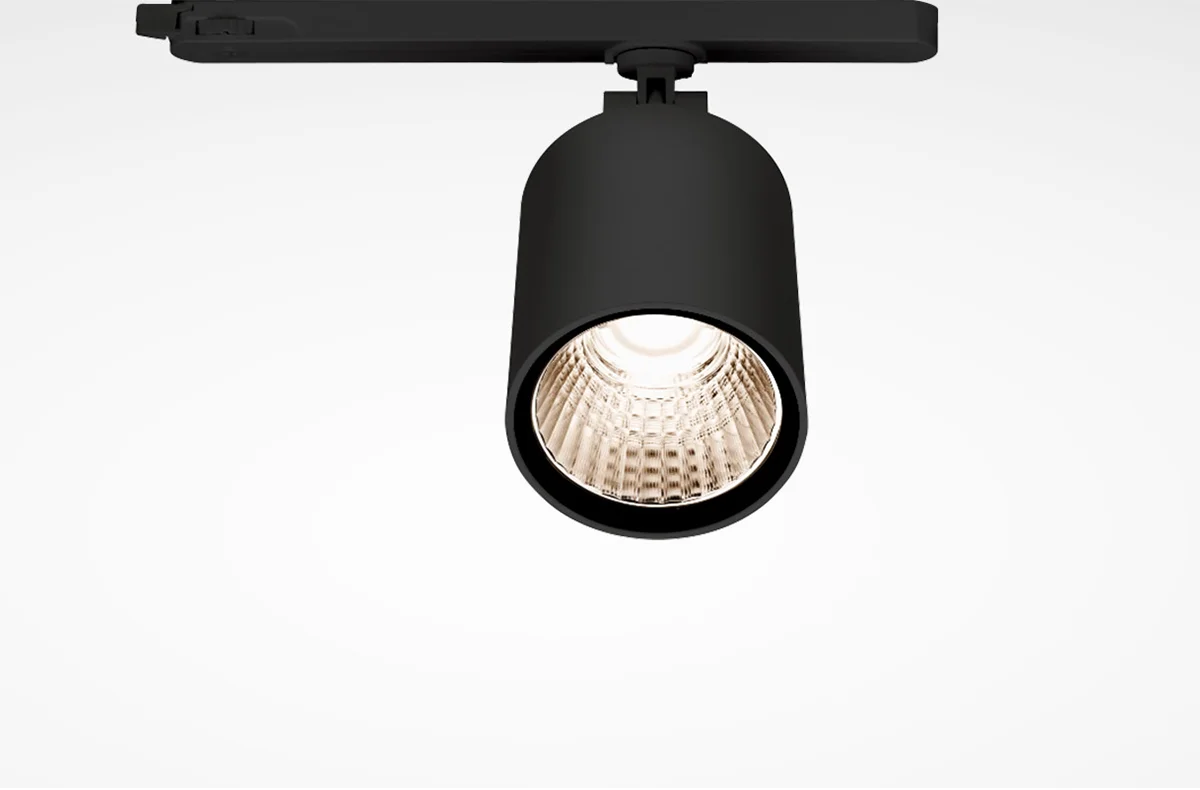

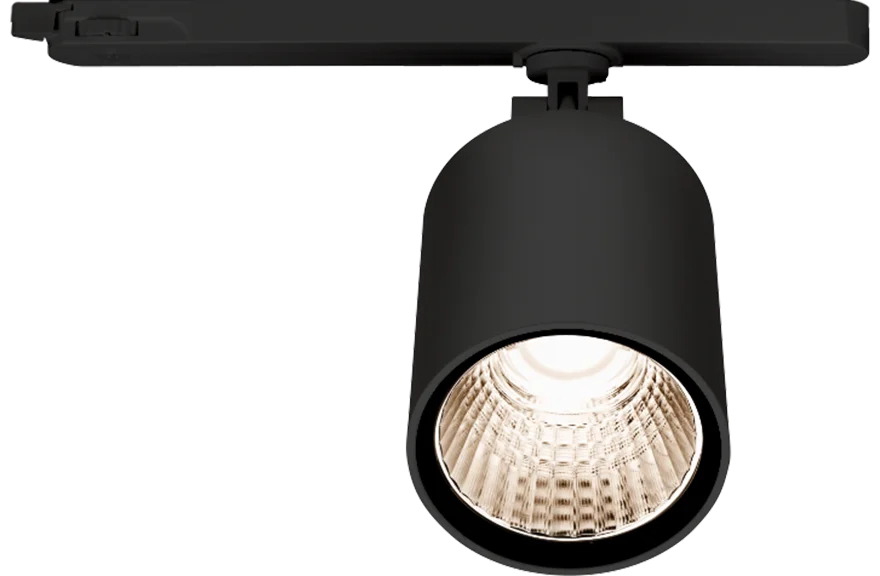

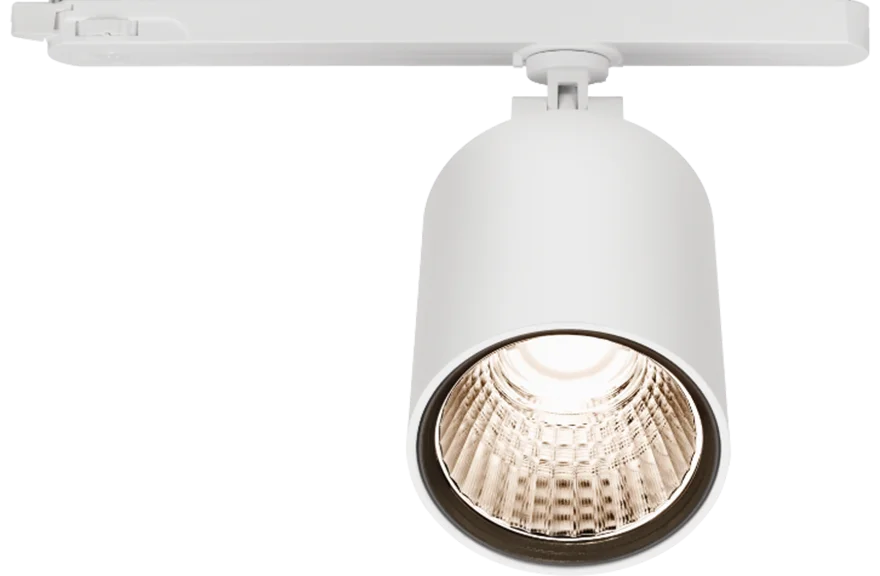

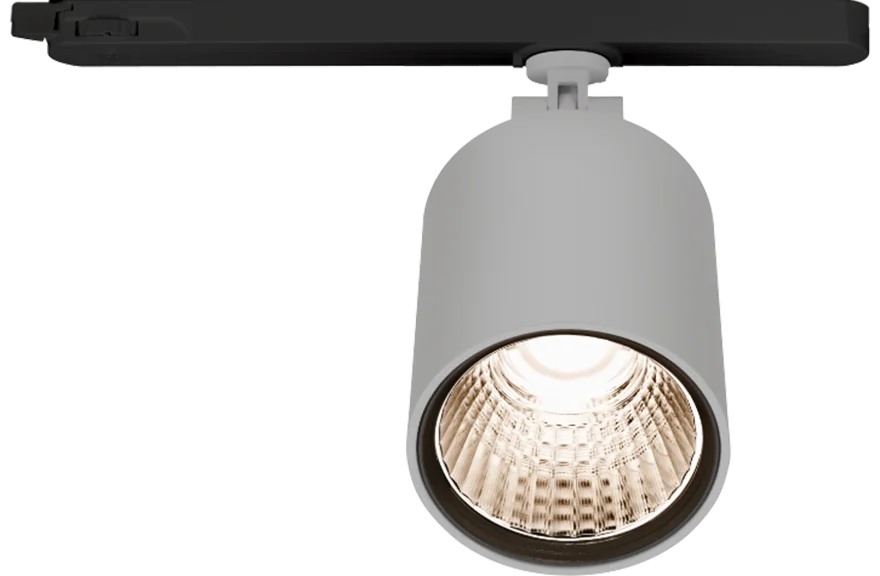

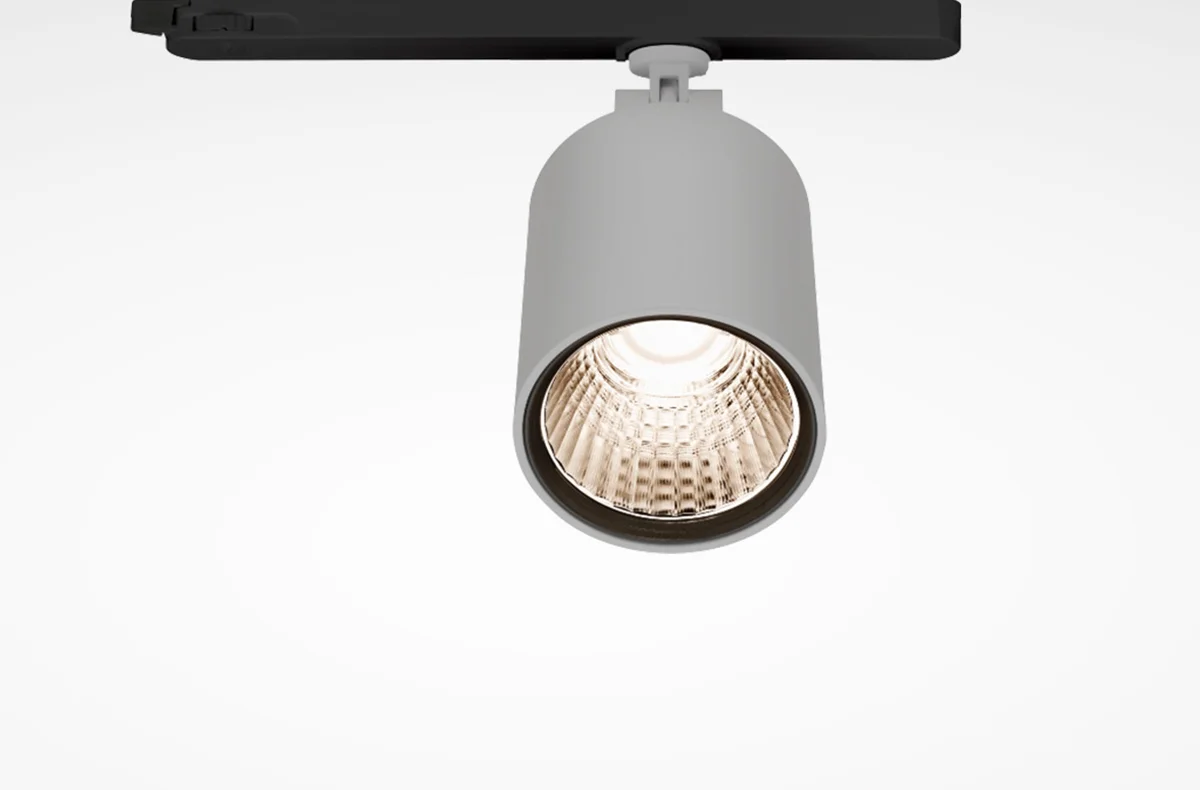

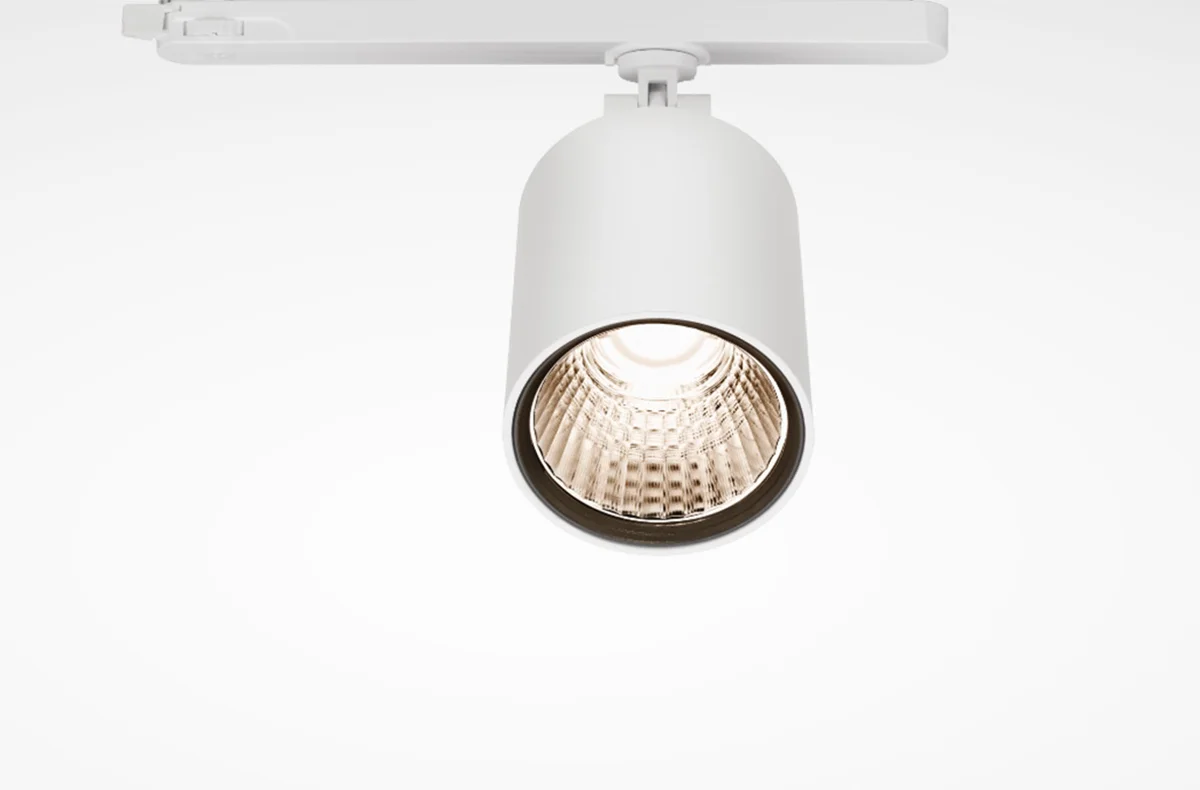

B.VEO TRACK: with an extra flat adapter

The versatile team player for track systems, also ideal for retrofitting. The extra-flat adapter contains the driver and protrudes only minimally from the track. Quick, tool-free mounting on the track.

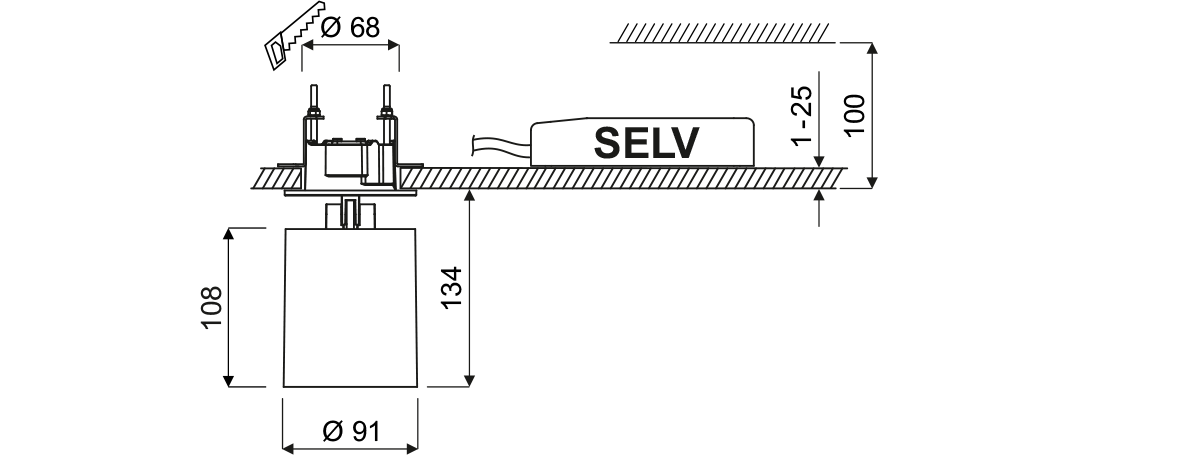

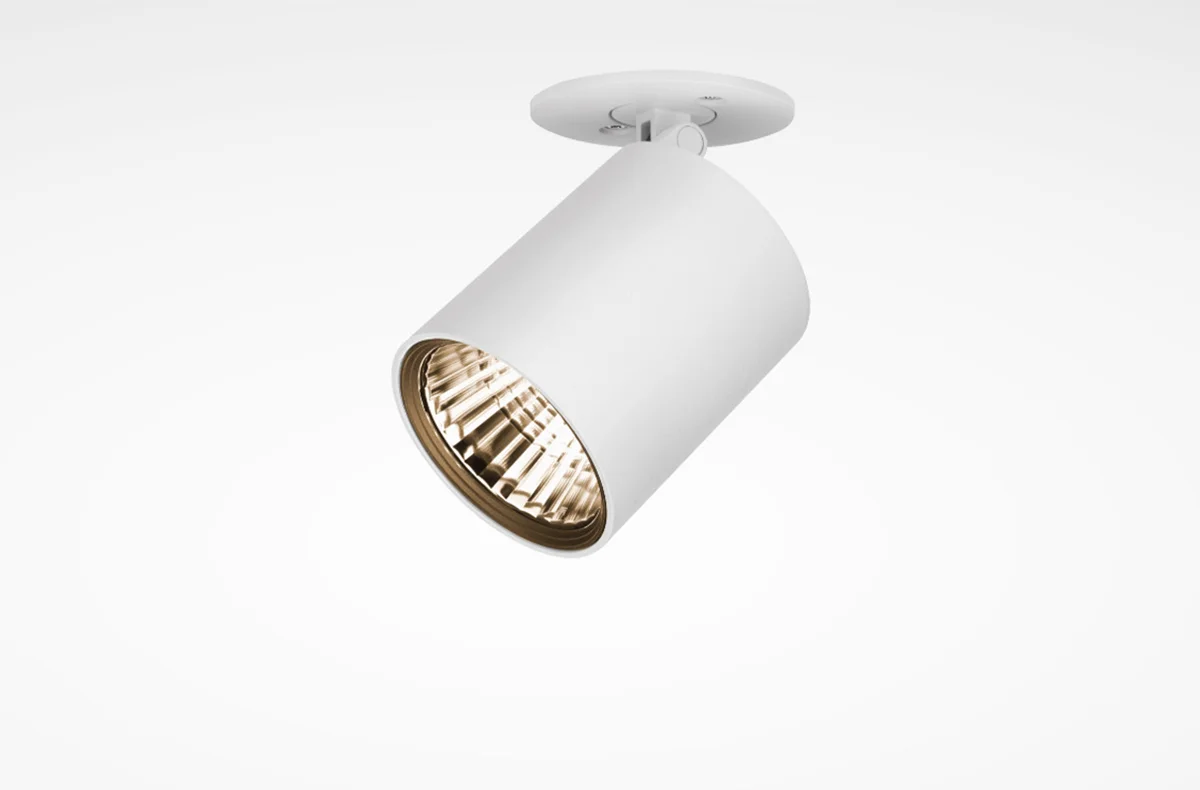

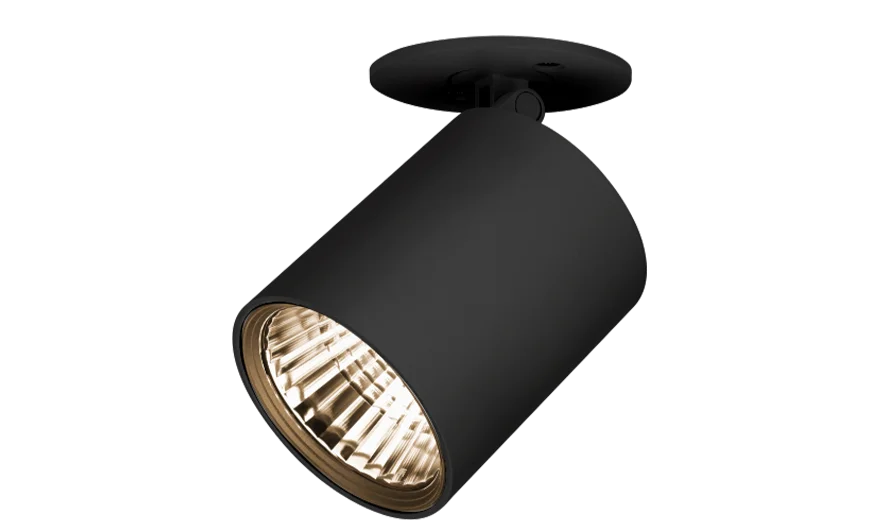

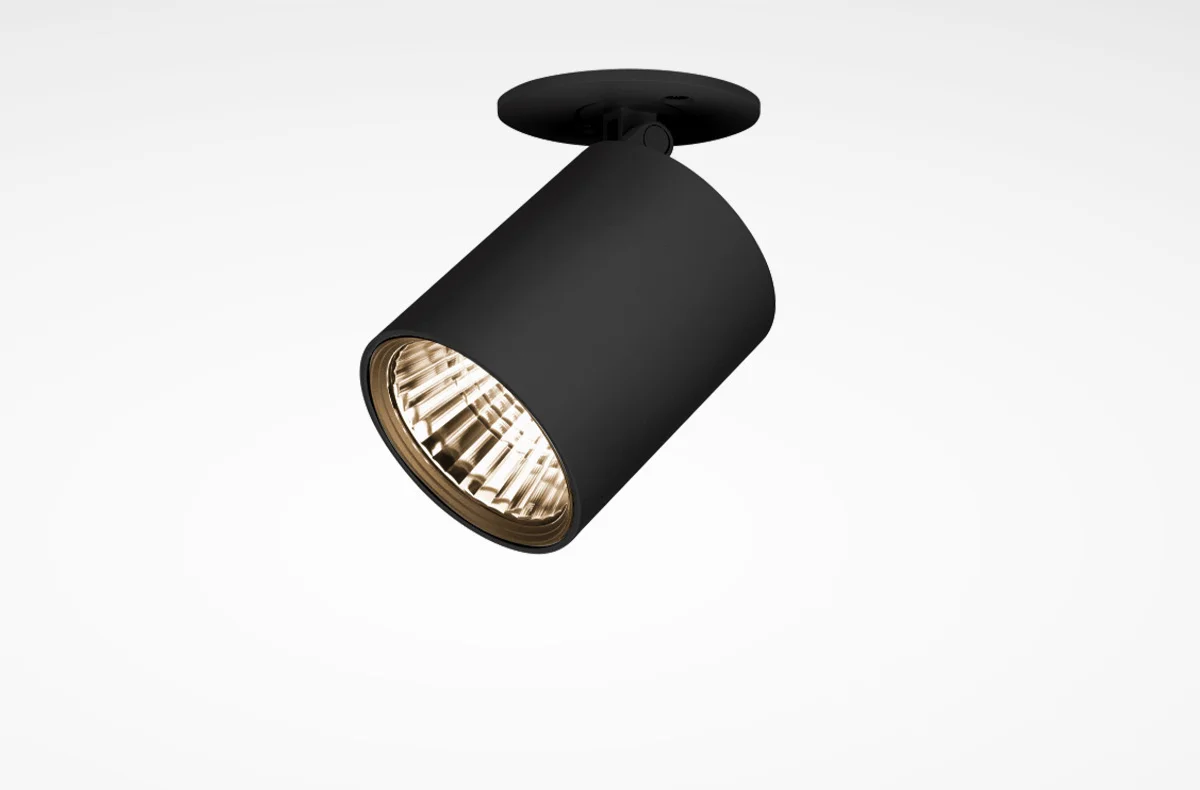

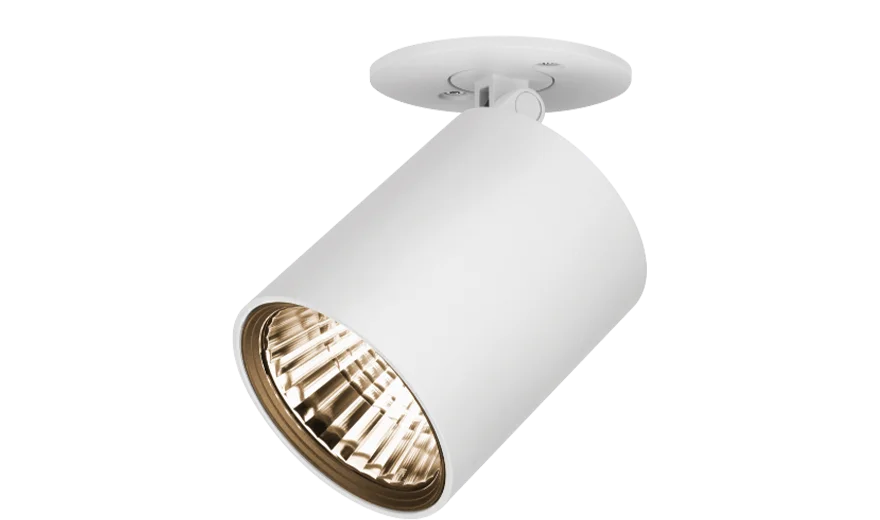

B.VEO ON: integrated into the ceiling

Also sets brilliant accents in store concepts without track: the installation-friendly supply unit of the B.VEO ON semi-recessed spotlight is concealed in the ceiling.

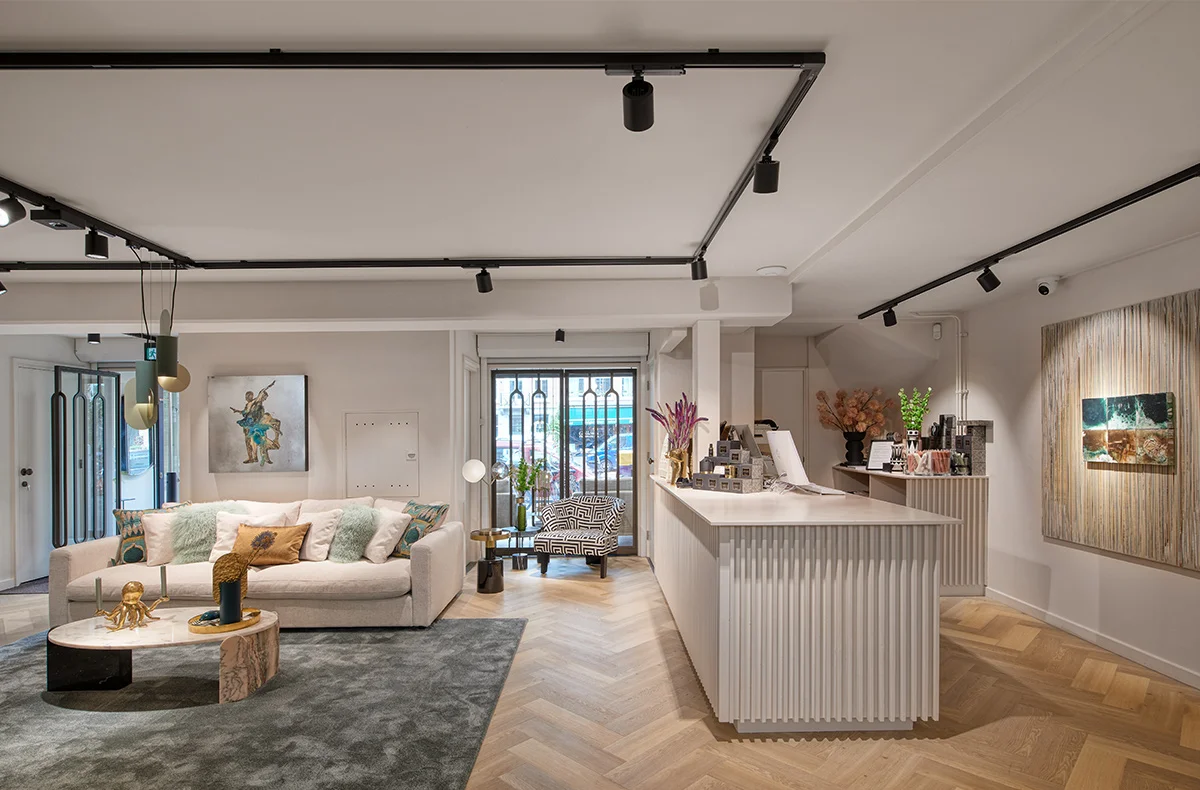

Efficiency leap



Up to 26%

Thanks to optimisation and further development, the connected load of the B.VEO has been reduced by 19% and the luminous efficacy (lm/W) improved by up to 26%.

Design

Whether ceiling-integrated or mounted to track: both versions of B.VEO feature a simple, cylindrical design. Thanks to their neutral shape, the spotlights blend into a wide variety of interior design styles and provide powerful light from compact housings.

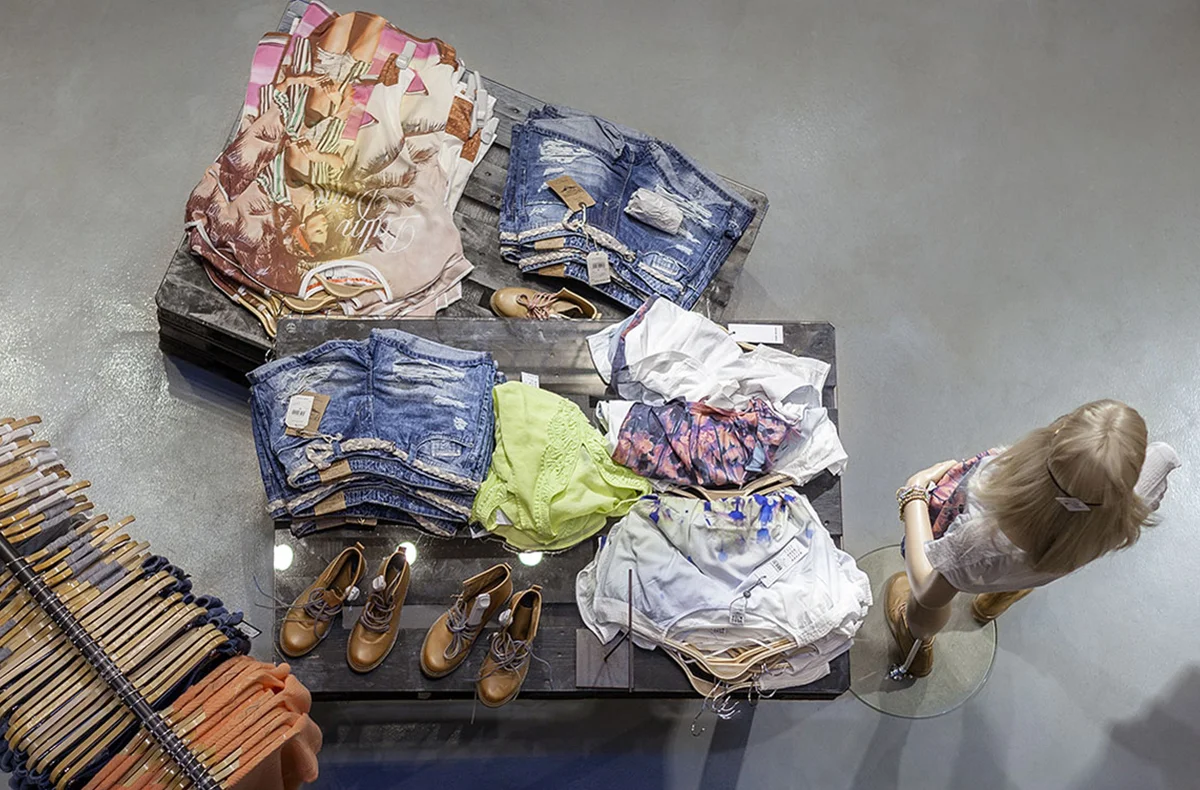

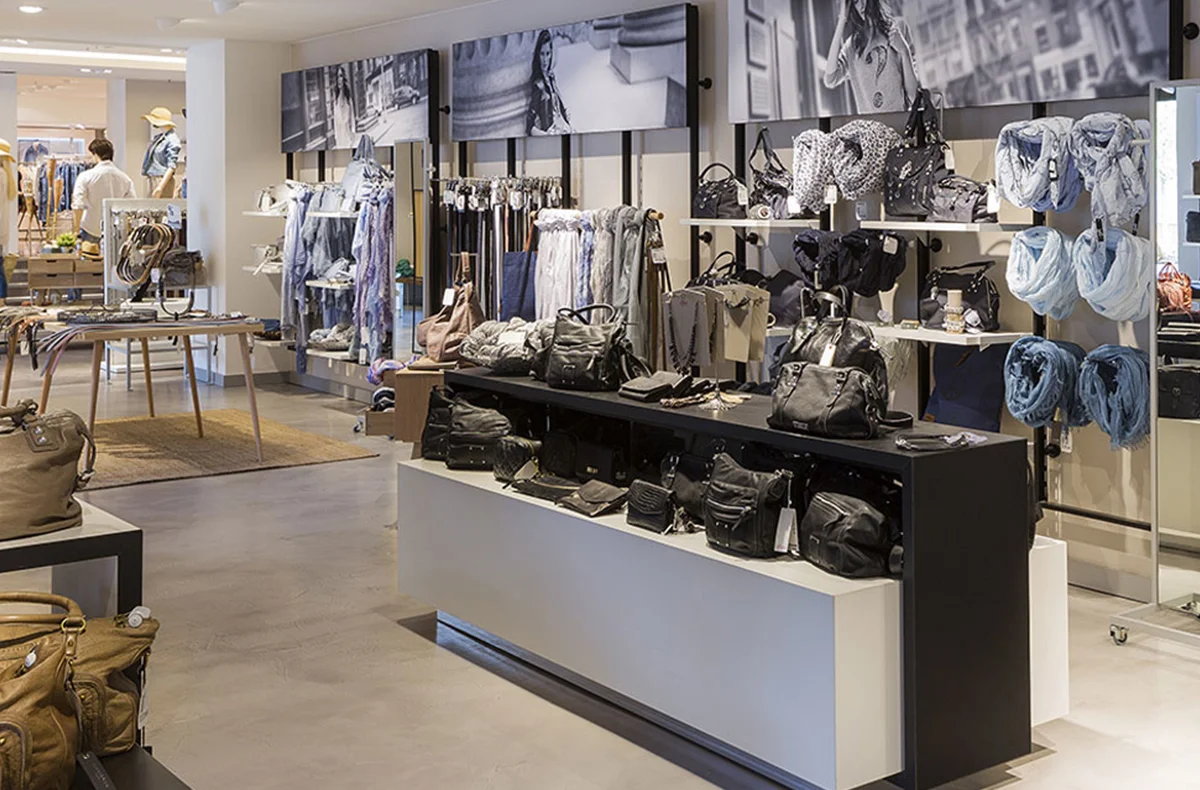

  • Display areas



    Attract the attention of customers – B.VEO sets clear and focused light accents

  • Shop windows



    Big impact, low space and energy requirements: B.VEO spotlights for creative and striking displays.

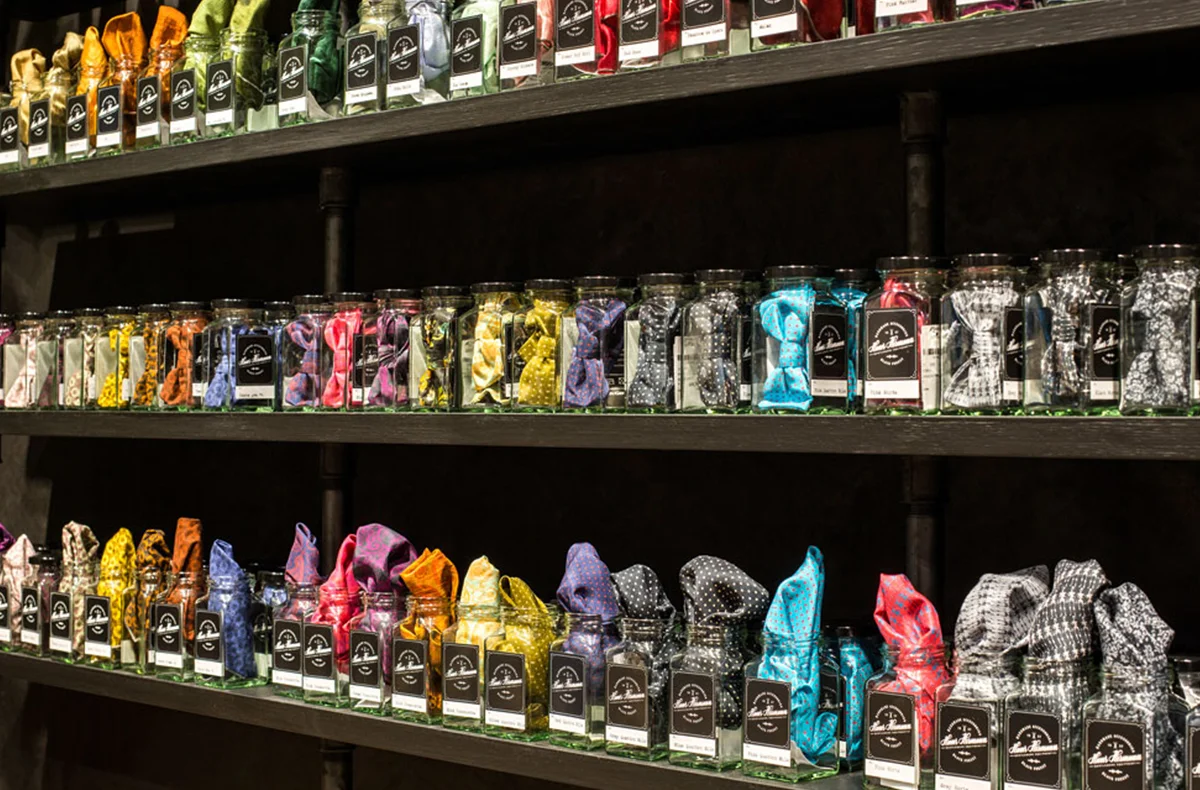

  • Shelves



    Whether track-mounted or on the ceiling: with a flick of the wrist, B.VEO spotlights are optimally aligned to merchandise.

Technical Data

B.Veo On

  LED LED DALI LED BLE
Application Accent lighting Accent lighting Accent lighting
LED Luminous flux class 1,500 lm - 5,000 lm 2,000 lm - 5,000 lm 2,000 lm - 5,000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, Meat, Meat+Fish, Brilliant Food 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, Meat, Meat+Fish, Brilliant Food 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, Meat, Meat+Fish, Brilliant Food
Optic 3D faceted reflector 3D faceted reflector 3D faceted reflector
Supply unit Driver DALI driver BLE driver
Installation   Recommended for new installations. Recommended for modernisation or new installations. Up to 127 luminaires can be coupled in a BLE network. A stable Bluetooth connection depends on the local conditions. It is up to 25m for this type of luminaire.
Material Die-cast aluminium Die-cast aluminium Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
 RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white 		RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight approx. 0.8 kg approx. 0.8 kg approx. 0.8 kg

B.Veo Track

  LED LED DALI LED BLE
Application Accent lighting Accent lighting Accent lighting
LED Luminous flux class 2,000 lm - 5,000 lm 3,000 lm - 5,000 lm 3,00 lm - 5,000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, Meat, Meat+Fish, Brilliant Food 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, Meat, Meat+Fish, Brilliant Food 2700 K, 3000 K, 3000 K - Efficient White, 3100 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool, Meat, Meat+Fish, Brilliant Food
Optic 3D faceted reflector 3D faceted reflector 3D faceted reflector
Supply unit Driver DALI driver BLE driver
Light control on request DALI DT6 Bluetooth Low Energy
Installation   Recommended for new installations. Recommended for modernisation or new installations. Up to 127 luminaires can be coupled in a BLE network. A stable Bluetooth connection depends on the local conditions. It is up to 25m for this type of luminaire.
Fixing   Type: Global DALI
Material Die-cast aluminium Die-cast aluminium Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white 		RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white 		RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight approx. 0.8 kg approx. 0.8 kg approx. 0.8 kg
