GRADO

Graphics spotlight with variable dirstribution

The relaunch perfects the proven GRADO by means of a smaller and lighter design. GRADO is characterized by the precise large-area wall illumination for graphics, displays or visuals and the systematic illumination of assortment-containing aisles and goods, e.g. on back walls. At the same time, the specially developed rectangular reflector supplies homogeneous or, thanks to a satin-finished pane of glass, also soft light distribution at the edges.

GRADO in use

Mounted parallel to the power track, it seems to disappear in the eye of the observer. At the same time the specially developed rectangular reflector provides, besides the homogeneous light distribution for graphics, displays or visuals, also optimum glare-reduction and hence meets all of the requirements of a modern and efficient shop lighting system in all retail areas.

You wish for soft light emission at the edge? Here you are: for that purpose we additionally fit GRADO with a satin-finished pane of glass.

The lighting artist: for horizontal product presentations such as fruit racks or promotions GRADO is just as suitable as for vertical goods illumination. The peripheral area shelf is additionally emphasized by the defined light imaging. LED modules such as Brilliant Food for fresh produce or Efficient White bring more depth and make colours shine authentically.

GRADO with a reflector for graphic illumination

– Generates a rectangular light image with sharp edge delimitation: the first choice for the absolutely uniform illumination of graphics.

Available as an option: GRADO with a reflector for goods illumination

– Generates rectangular light images with concentration of the centric core light as well as soft edge delimitation: optimally suited to horizontal or vertical product illumination from the fruit rack via the special area to the peripheral area shelf.

Selectable light distribution

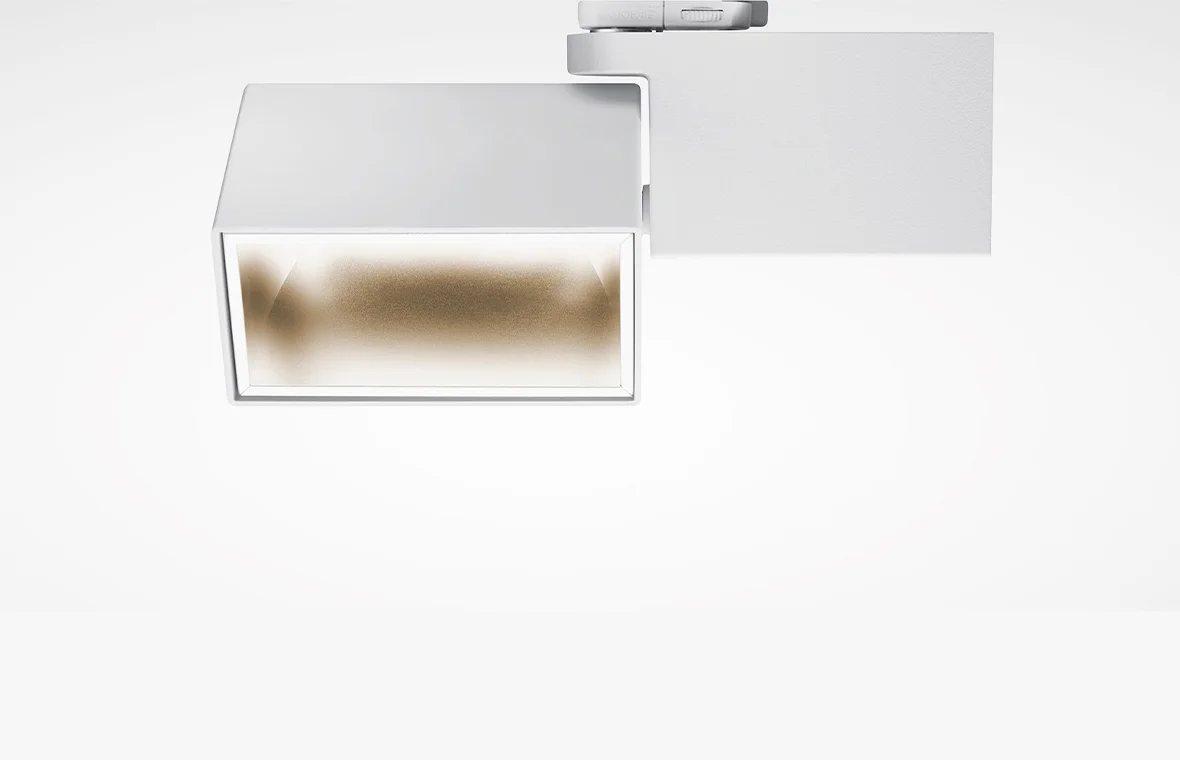

  • GRADO graphics reflector – with a special reflector for rectangular, homogeneous light imaging and sharp edge delimitation for defined surface illumination.
  • GRADO graphic reflector plus a pane of glass– with special reflector and satin-finished pane of glass for homogeneous lighting images and soft edge delimitation.

Flexible applications

Vertical illumination of graphics – Clear illumination of displays and surfaces with sharp or soft edge delimitation

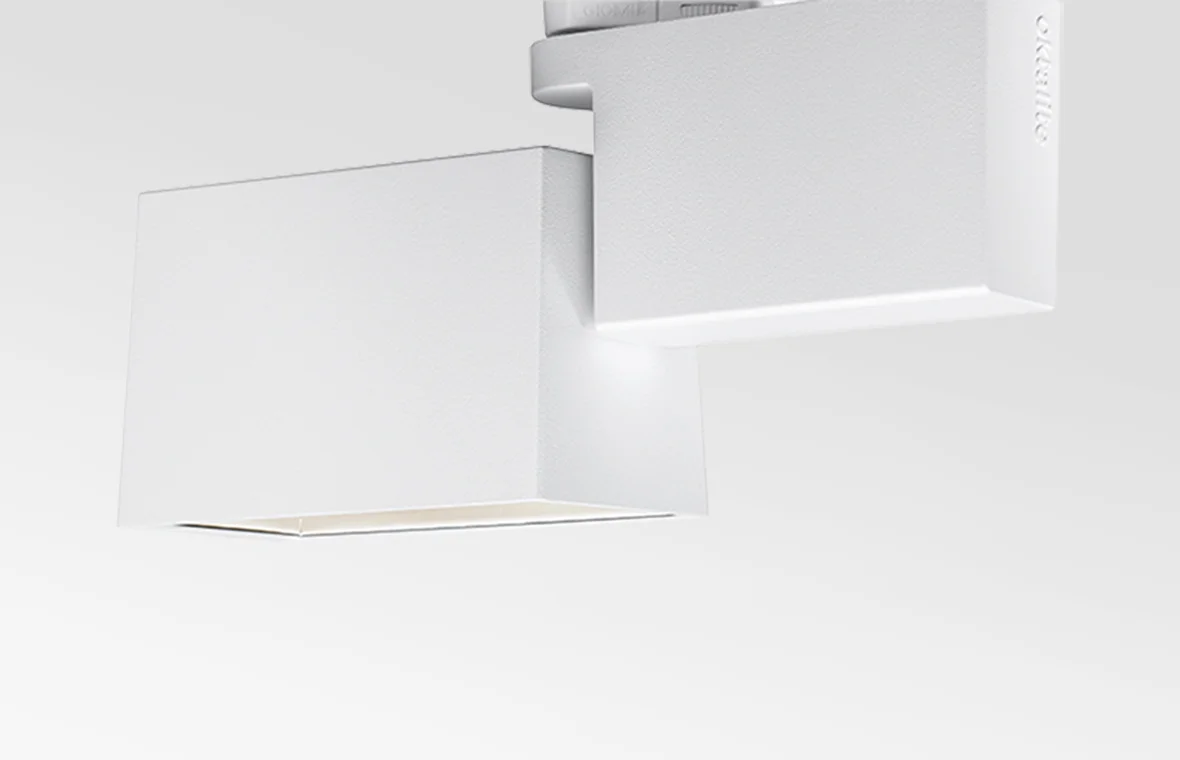

Slim design

  • Optimally balanced for simple mounting
  • Blends unobtrusively into the power track

High degree of movability

Tilting through 110° degrees (thereof 20° upwards) and turning through 355° degrees

Intelligent

LEDIQ for your smart lighting management

Technical Specifications

  LED LED IQ DALI
Application areas High-level decoration, Graphics illumination High-level decoration, Graphics illumination
LED Luminous Flux Class 2000 lm - 5000 lm 4000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, 4000 K - Efficient Cool
Optic Specially designed reflector Specially designed reflector
Supply unit Driver DALI driver
Lighting controls on request DALI DT6
Installation   Empfohlen für Neuinstallationen.
Mounting   Typ: Global DALI
Material Die-cast aluminium Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight approx. 1,4 kg approx. 1,4kg
Connected load in watts 13-40 13-40
